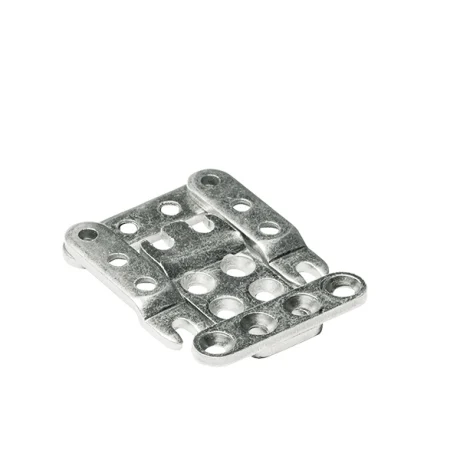

ACRO 62×62 Beam Connector

The ACRO 62 x 62 Beam Connector is a compact, concealed post and beam fastener engineered for clean architectural aesthetics and reliable structural performance. Part of the modular ACRO system, this connector enables precise, repeatable timber joints that can be prefabricated with ease and assembled rapidly on site.

Manufactured in Austria from high strength, blue zinc coated steel, ACRO connectors interlock inside a shallow routed recess to create a force fit, self tensioning connection. The design allows natural timber movement while maintaining consistent clamping pressure across the joint. Because all components remain hidden within the wood, the finished structure presents a seamless appearance with no visible hardware.

Ideal for small and mid scale timber structures, interior applications, conservatories, display installations, and modular assemblies, the ACRO 62 x 62 provides a dependable and disassemblable joint with minimal tooling and maximum precision.

Key Features

• Fully hidden connector for clean, uninterrupted visual timber surfaces

• Self tensioning system maintains durable, long term compression

• Components can be removed and reinstalled without damaging the joint

• High prefabrication efficiency for factory or workshop production

• Precision engineered for tight, force fit alignment

• Adjustable screw pressure compensates for natural timber tolerances

• Made from high strength, blue zinc coated structural steel

• Compatible with handheld router recessing or CNC machining

• Interior architectural timber framing

• Exhibition and museum structures

• Sunrooms, pergolas, gazebos, and similar small timber buildings

• Modular timber construction systems

• Classic carpentry requiring concealed connectors

Included in the Set

• ACRO 62 x 62 connector assembly
  (Delivered as individual components for installation.)

Required Screws (sold separately)

Use only standard self tapping screws per ÖNORM M5027 to maintain tested performance.

• End grain: 8 pcs SK 5 × 60 mm

• Side grain: 8 pcs SK 5 × 40 mm

Load Capacity

• F0 = 2.53 kN* shear force in insertion direction

* Load values based on testing by Holzforschung Austria (HFA). Valid only when using approved self tapping screws (5×40, 5×60, 6×40, 6×60 mm) per ÖNORM M5027.

Material

• High strength, blue zinc coated steel

• Manufactured in Austria for consistent precision and durability

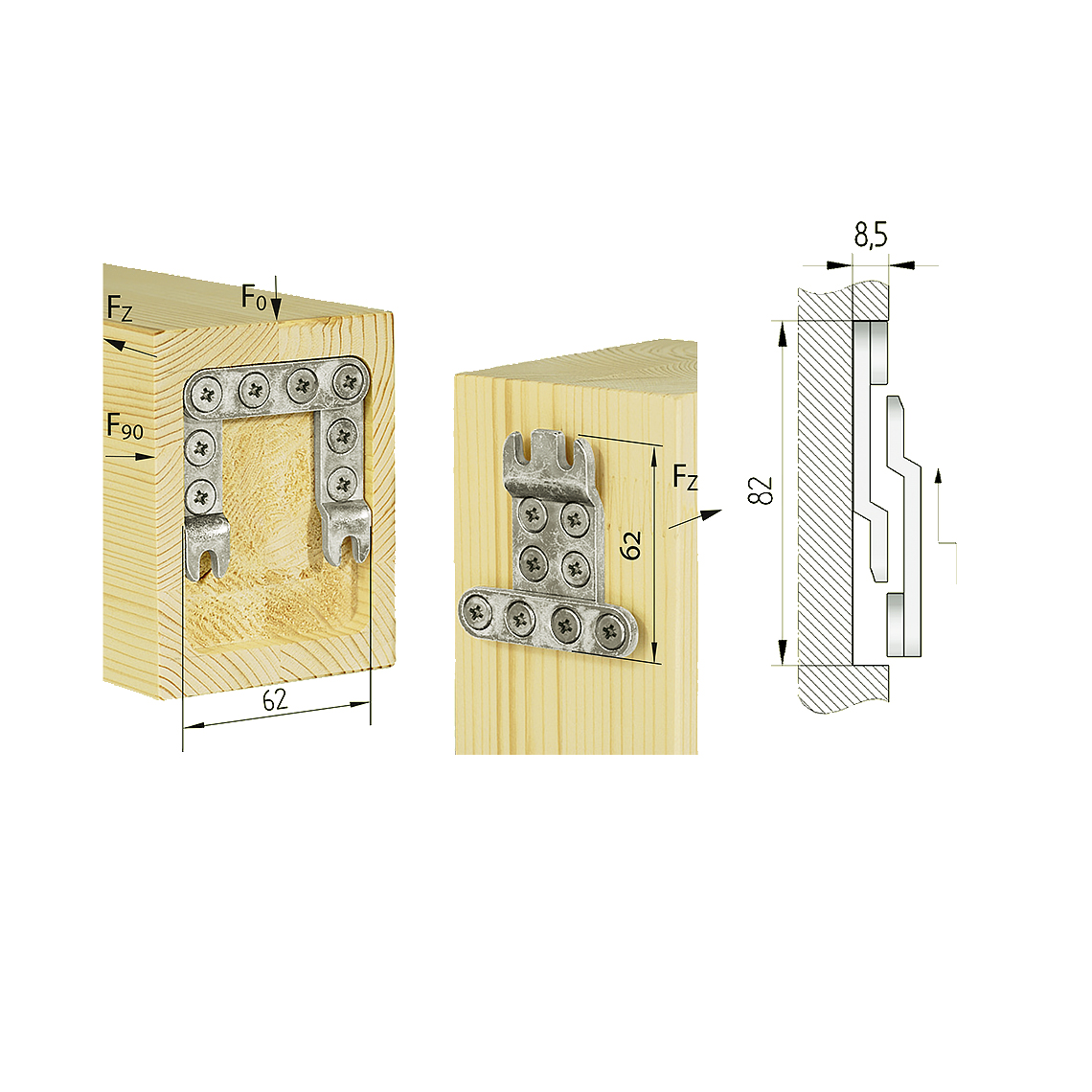

• Rout an 8.5 mm deep recess in the end grain or side grain using a slot cutter Ø 15 mm (hand router or CNC).

• Position connector components and pre drill screw locations as needed for accuracy.

• Install the required screws according to grain orientation.

• Interlock connector sections inside the recess until fully seated.

• Adjust screw tension to ensure proper joint compression and alignment.
