ACRO 90×62 Beam Connector

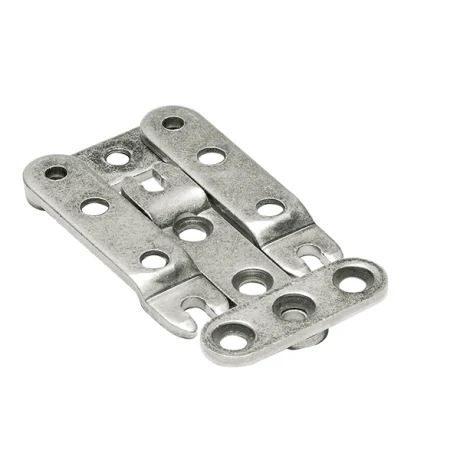

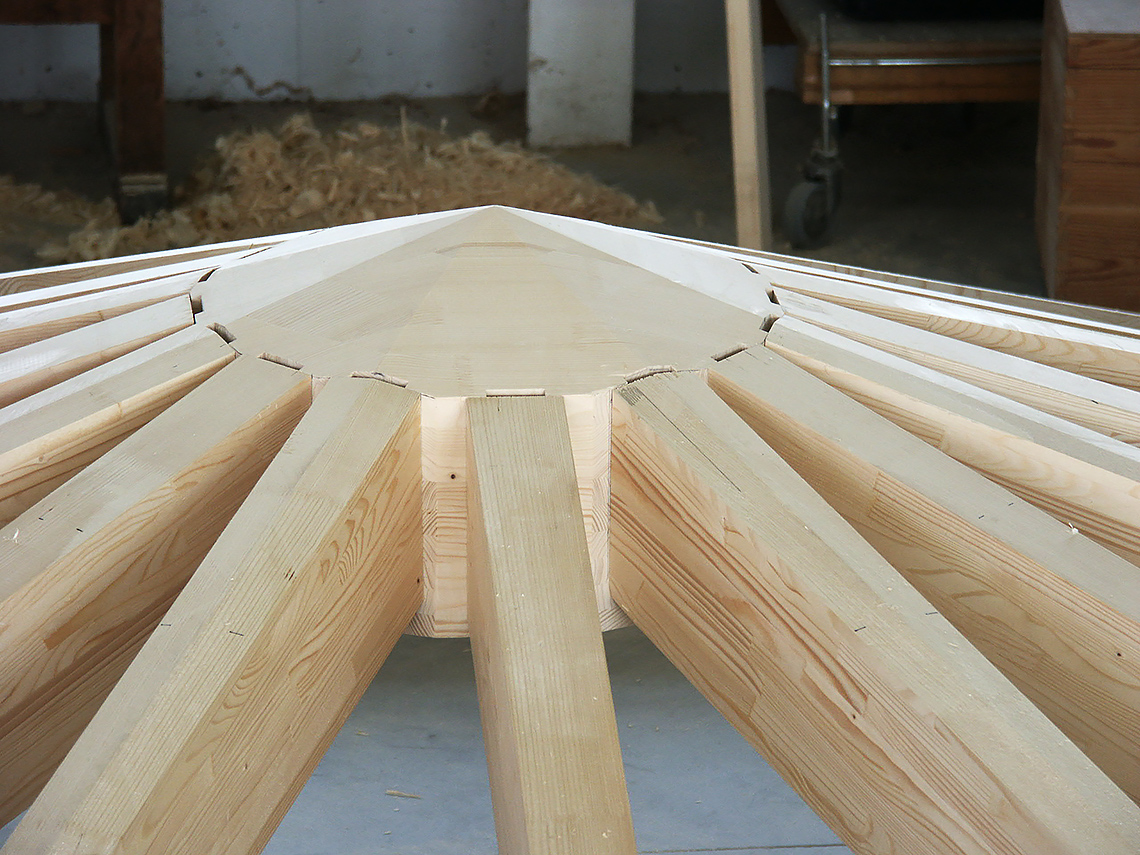

The ACRO 90 x 62 Beam Connector is a concealed, self tensioning connector designed for accurate, visually clean post and beam joints. Constructed from high strength blue zinc coated steel, the connector locks together inside a shallow milled recess, creating a precise force fit connection while remaining removable and adjustable as needed.

As part of the modular ACRO system, this connector supports highly flexible design and assembly workflows. Prefabricated elements can be produced with consistent accuracy, transported as separate pieces, and assembled quickly on site. The connector’s screw based compression allows installers to fine tune the joint to accommodate natural timber tolerances without restricting material movement.

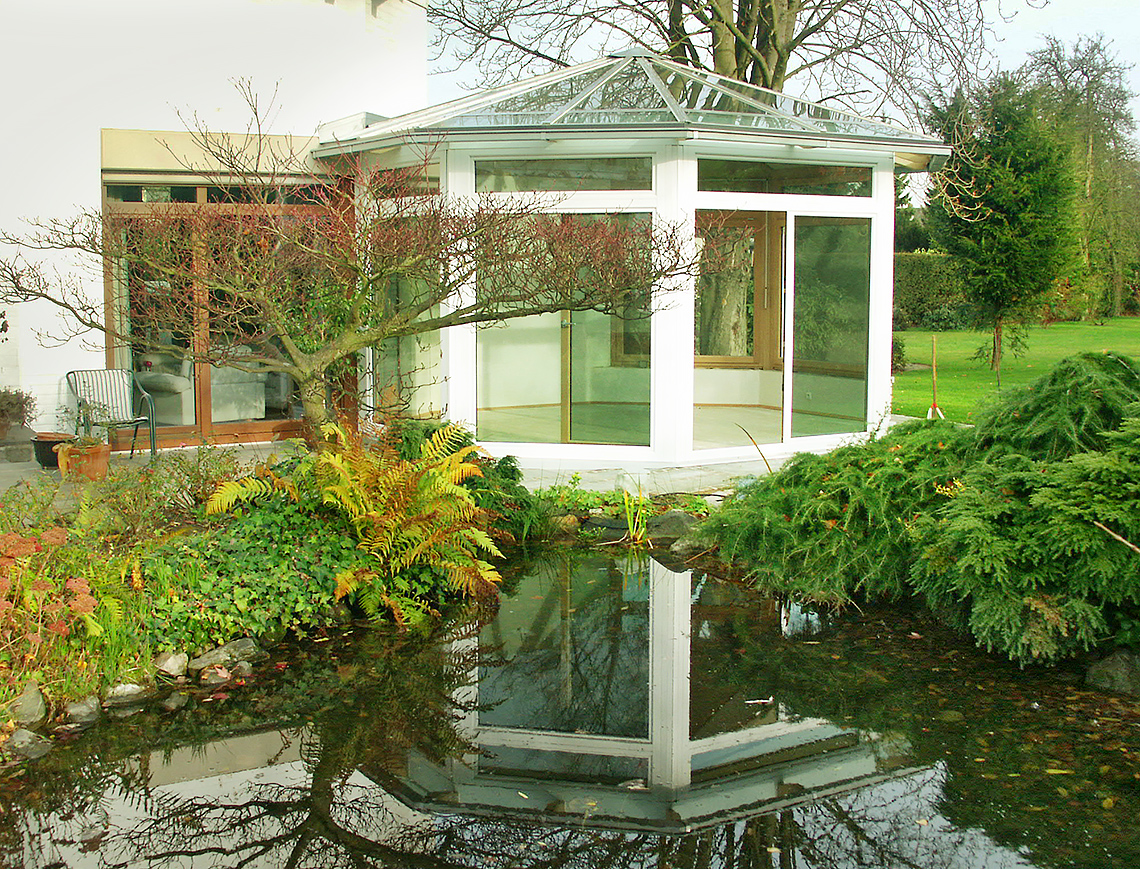

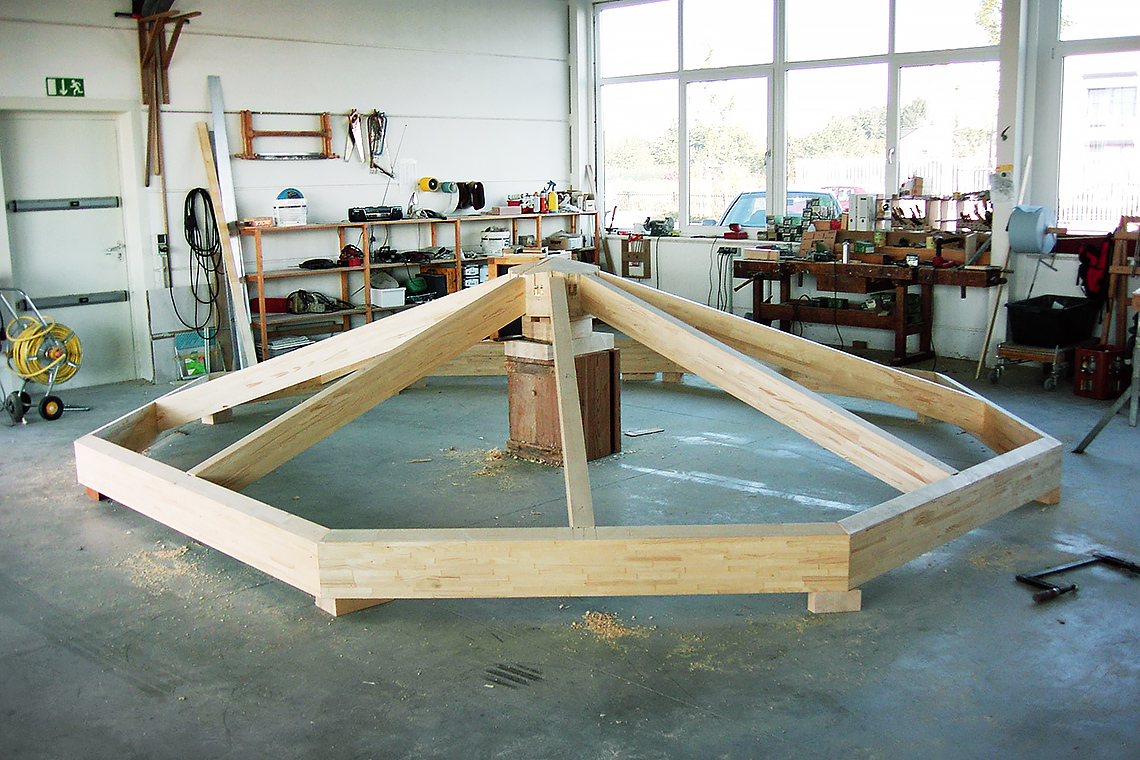

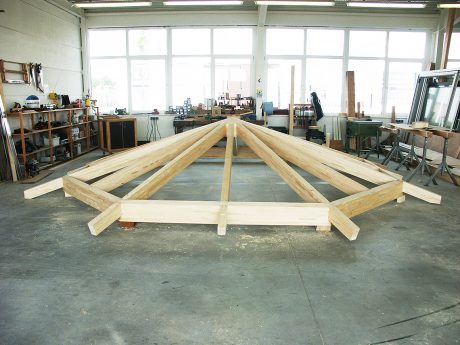

Ideal for interior architectural construction, exhibition structures, conservatories, and small timber buildings, the ACRO 90 x 62 provides a durable, hidden connection where appearance, reliability, and ease of assembly are equally important.

Key Features

• Fully concealed beam connector for clean architectural detailing

• Self tensioning design maintains long term joint compression

• Components can be disassembled and reassembled at any time

• High prefabrication potential reduces on site installation time

• Force fit structural connection for dependable load transfer

• Adjustable screw pressure compensates for timber tolerances

• Manufactured from high strength blue zinc coated steel

• Compatible with CNC or handheld router processing

• Interior timber framing and architectural joinery

• Trade fair, museum, and exhibition structures

• Sunrooms, pergolas, and small prefabricated timber buildings

• Modular timber assembly systems

• Classic carpentry requiring invisible connectors

Included in the Set

• ACRO 90 x 62 connector assembly
  (Delivered in individual components for installation.)

Required Screws (sold separately)

Only standard self tapping screws per ÖNORM M5027 may be used to achieve the tested values.

• End grain: 7 pcs SK 6 × 60 mm

• Side grain: 5 pcs SK 6 × 40 mm

Load Capacity

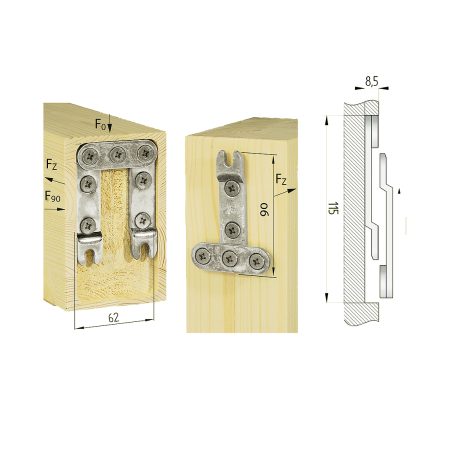

• F0 = 4.49 kN* shear force in insertion direction

* Load values based on testing by Holzforschung Austria (HFA). Valid only when using approved self tapping screws (5×40, 5×60, 6×40, 6×60 mm) per ÖNORM M5027.

Material

• High strength, corrosion resistant blue zinc coated steel

• Precision engineered connector components manufactured in Austria

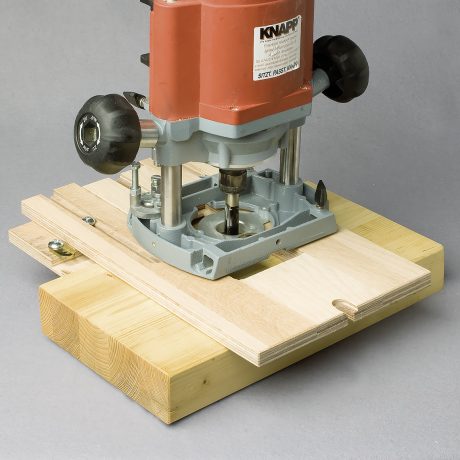

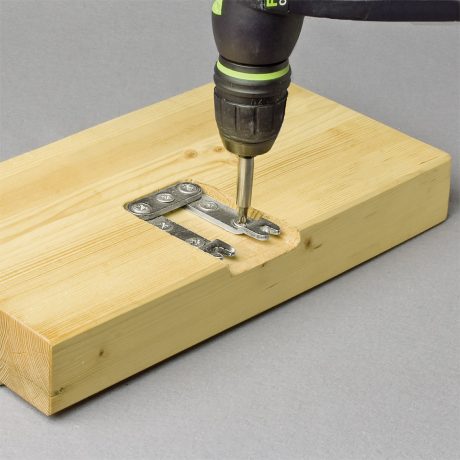

• Rout a recess approximately 8.5 mm deep using CNC or a handheld router.

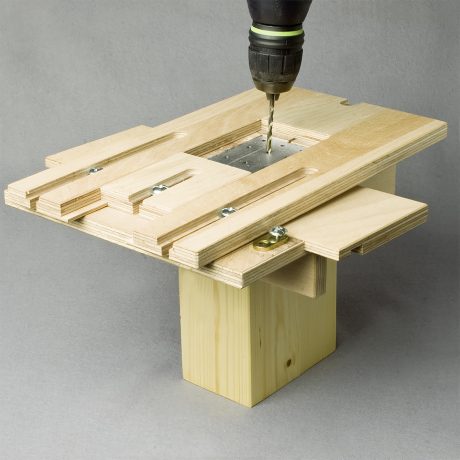

• Position connector components and pre drill screw holes for accuracy.

• Install screws according to grain direction requirements.

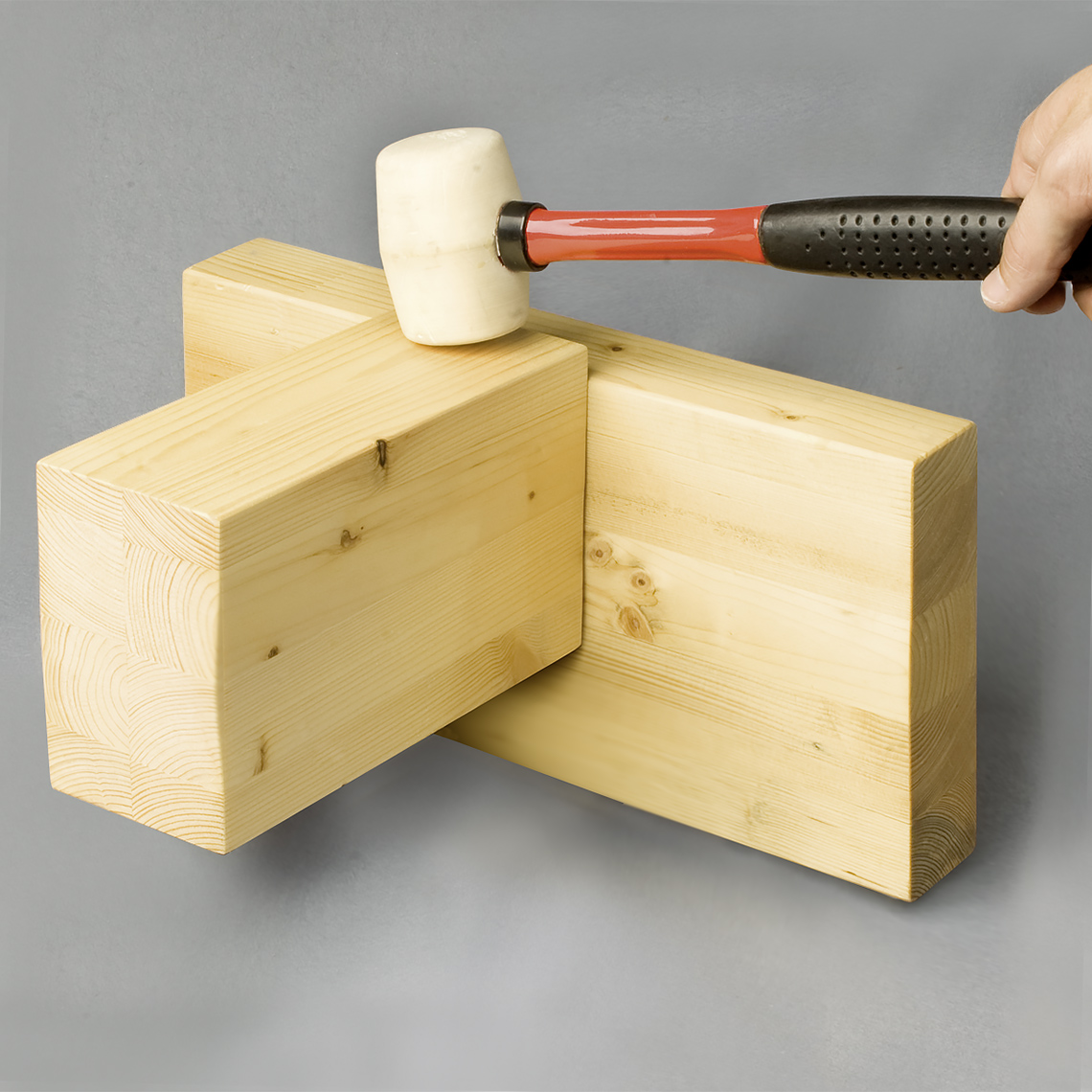

• Engage connector parts inside the recess until fully seated.

• Adjust screw pressure to create clean alignment and proper joint compression.
