ACRO 90×90 Beam Connector

The ACRO 90 x 90 Beam Connector is a concealed, self-tensioning connector engineered for clean, accurate, and visually unobtrusive post and beam joints. Manufactured from high strength blue zinc coated steel, the connector locks into a shallow routed recess and creates a dependable, force fit connection while remaining fully adjustable and fully removable when required.

The modular ACRO system allows complex joining scenarios to be created from a small number of standardized components. This provides high flexibility in prefabricated timber construction, supports controlled shop assembly, and ensures rapid and predictable installation on site. Joint compression can be fine tuned through the screws, enabling compensation for minor timber tolerances without restricting natural wood movement.

Designed for interior construction, museum and exhibition structures, conservatories, and small timber buildings, the ACRO 90 x 90 delivers a precise, hidden connection ideal for applications where appearance and technical performance are both critical.

Key Features

• Concealed connector for clean architectural detailing

• Self tensioning design maintains long term joint compression

• Components can be detached at any time for adjustment or transport

• High level of prefabrication reduces assembly time

• Produces a force fit connection for reliable load transfer

• Adjustable clamping pressure to accommodate timber tolerances

• Made from high strength, corrosion resistant blue zinc coated steel

• Supports CNC or handheld routing for recessed installation

• Interior architectural joinery and timber framing

• Exhibition and museum structures

• Conservatories, pergolas, sunrooms, and small timber buildings

• Modular and prefabricated timber systems

• Classic carpentry where a concealed connection is preferred

Included in the Set

• ACRO 90 x 90 connector assembly
  (Delivered as individual components for installation.)

Required Screws (sold separately)

To achieve the tested performance values, only self tapping screws per ÖNORM M5027 may be used.

• End grain: 8 pcs SK 6 × 60 mm

• Side grain: 8 pcs SK 6 × 40 mm

Load Capacity

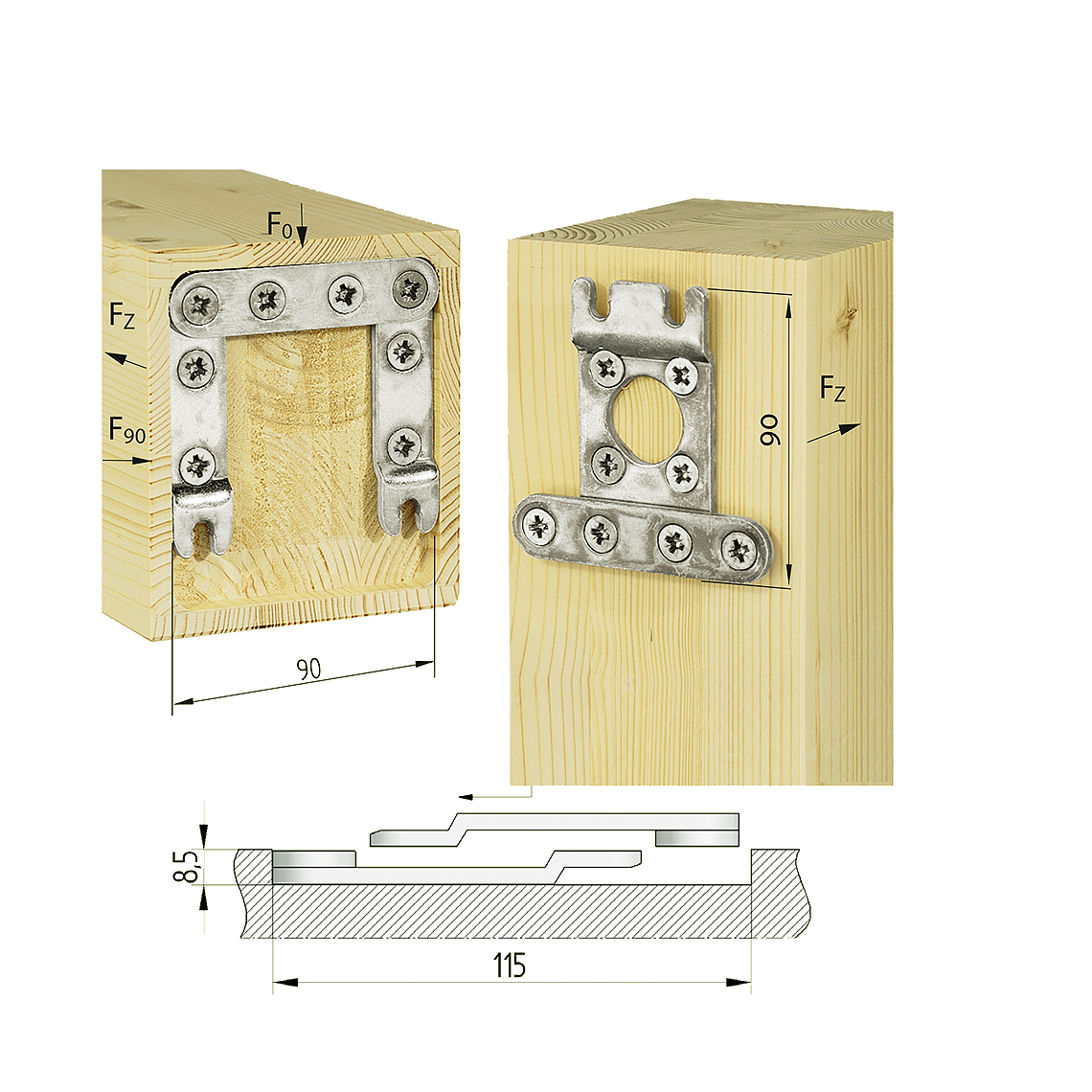

• F0 = 5.40 kN* shear force in insertion direction

* Load values refer to testing by Holzforschung Austria (HFA), valid only when using standard self tapping screws (5×40, 5×60, 6×40, 6×60 mm) per ÖNORM M5027.

Material

• High strength blue zinc coated steel

• Connector components manufactured in Austria

• Rout a concealed pocket approximately 8.5 mm deep using a handheld or CNC router.

• Position components and pre drill screw holes as needed.

• Fasten connector parts according to grain direction.

• Slide components together inside the recess until fully seated.

• Adjust screw pressure to ensure clean alignment and proper joint compression.
