GIGANT 120 x 40 Heavy Timber Beam Hanger

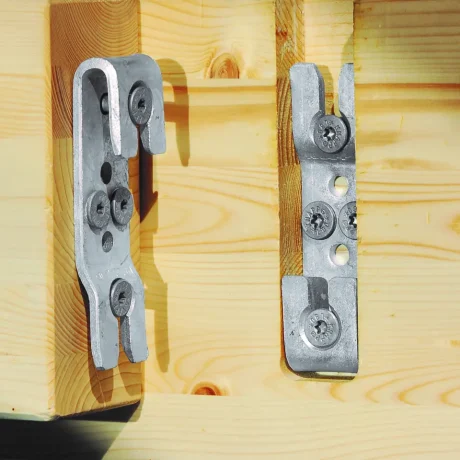

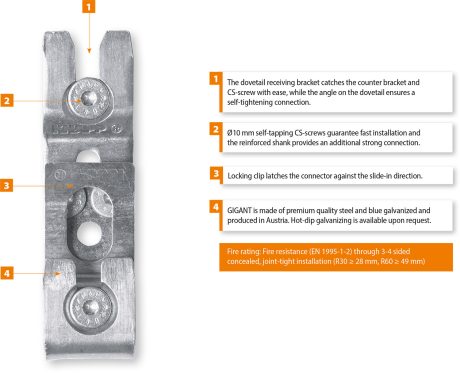

The GIGANT 120 x 40 is a concealed heavy timber beam hanger engineered for high-strength structural connections in timber framing, log buildings, and mass timber applications. The connector consists of two identical steel brackets that interlock in a dovetail-like motion, allowing the secondary beam to slide into place with immediate load transfer.

One bracket is recessed into the primary timber member, while the matching bracket mounts directly to the secondary beam using KNAPP SK screws. The short hooking path accelerates installation, and the self-tensioning connector geometry maintains long-term joint compression. Installation can be fully concealed or visible depending on project requirements.

Key Features

• High-load concealed connector for main and secondary beams

• Short hooking path supports rapid drop-in assembly

• Self-tightening design keeps the joint compressed over time

• Works with glulam, solid timber, mass timber, and log construction

• Suitable for softwoods and hardwoods under ETA extension

• Compatible with timber, steel, and concrete supports

• Fire resistance performance when installed fully concealed

• Allows disassembly and reassembly

• Available in blue galvanized or hot-dip galvanized finish

• Glulam beam-to-beam connections

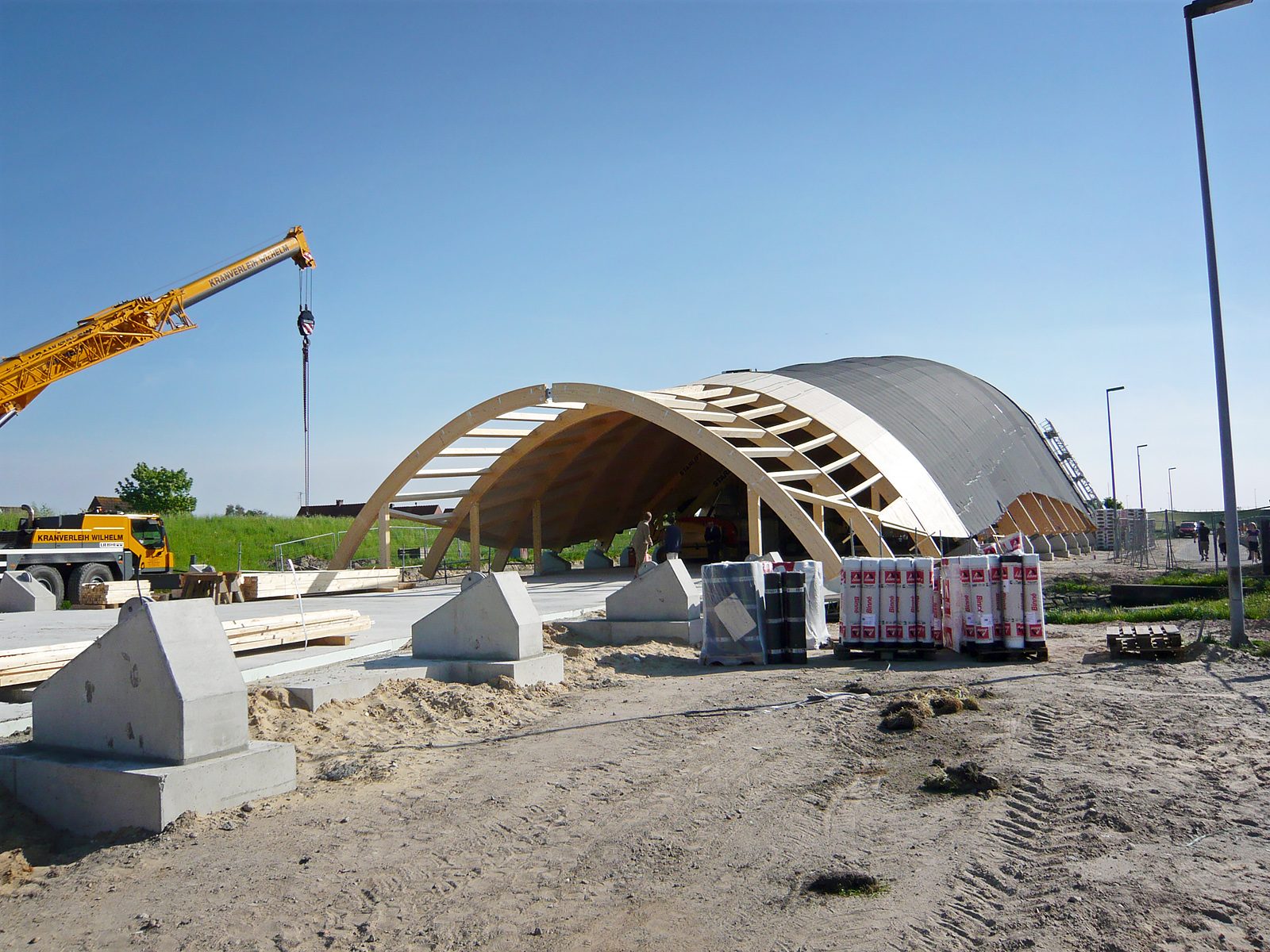

• Heavy timber and mass timber structures

• Timber frame and hybrid construction

• Log home construction

• Pergolas, canopies, sunrooms, and exterior timber structures

• Any application requiring a concealed, high-adjustability beam hanger

Set Includes:

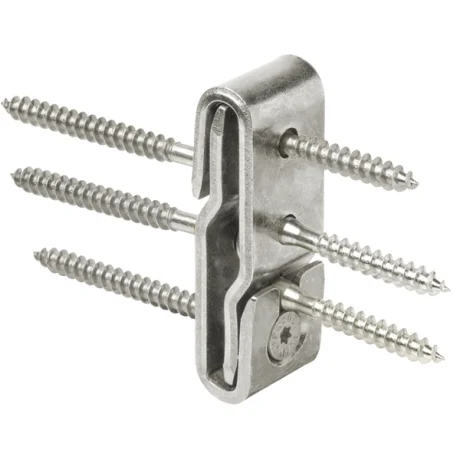

• 2 pcs. GIGANT 120/40 brackets

• 3 pcs. KNAPP SK screws 10 x 80 mm

• 3 pcs. KNAPP SK screws 10 x 120 mm

Load Capacity:

• 12.7 kN* characteristic capacity F2,Rk in insertion direction
  *Valid only when using original KNAPP SK screws per ETA-10/0189, based on C24 pine.

Material and Installation Requirements:

• End-grain attachment: SK screws 10 x 120 mm

• Side-grain attachment: SK screws 10 x 80 mm

• Connector becomes immediately load-bearing once engaged

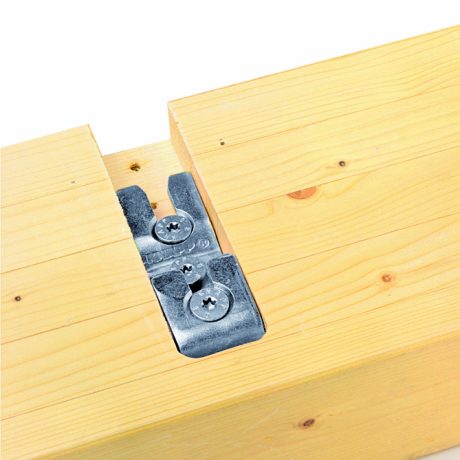

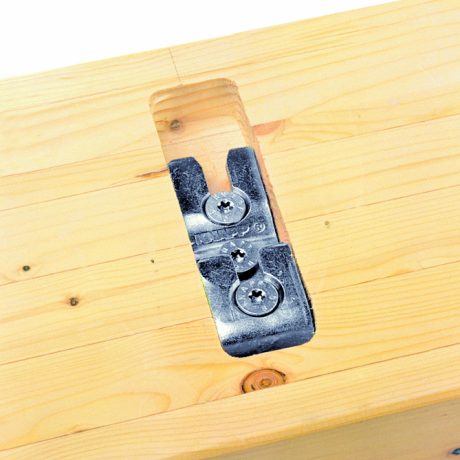

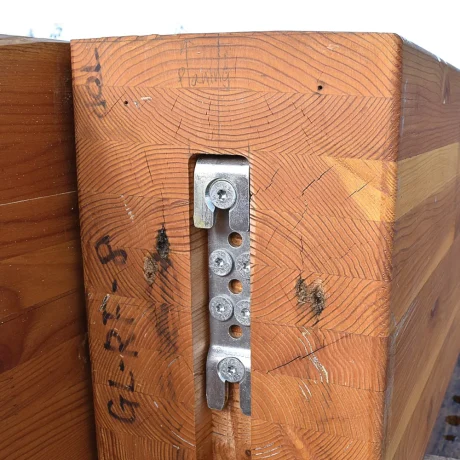

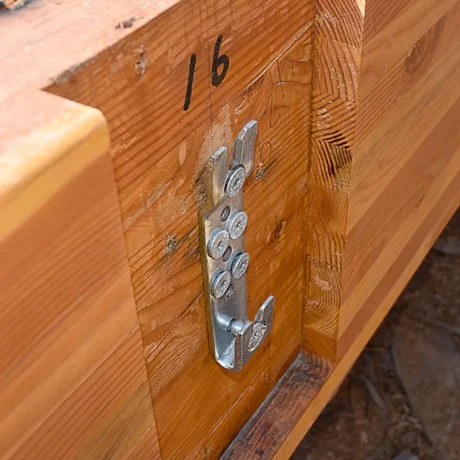

• Can be installed concealed with a milled recess or visibly

Optional Accessories:

• GIGANT Locking Clip for securing the connection against pull-out forces

• GIGANT Drilling Jig for precise screw positioning and consistent pilot hole layout

• GIGANT 120 x 40 Drilling Template for repeatable CNC-like accuracy when marking and drilling the screw pattern on site

• MULTI F 40 Routing Jig for producing a consistent and precise recessed housing

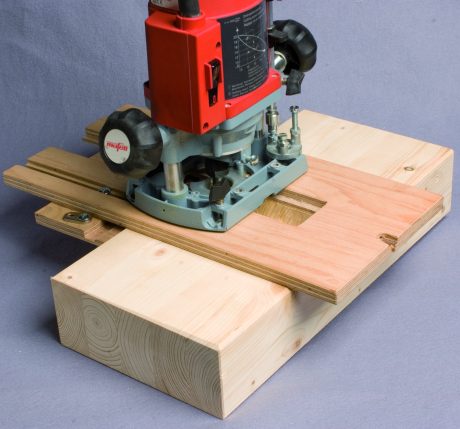

1. Cut the recess using CNC or the KNAPP MULTI F 40 routing jig.

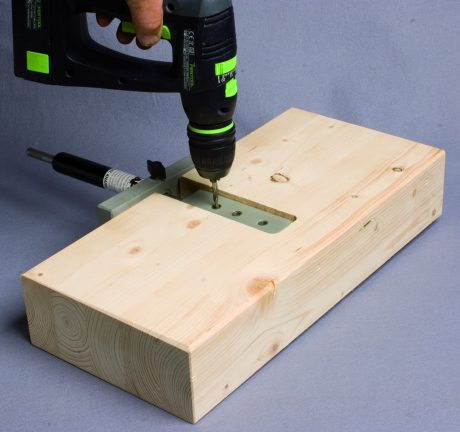

2. Pre-drill screw holes using CNC or the GIGANT drilling jig.

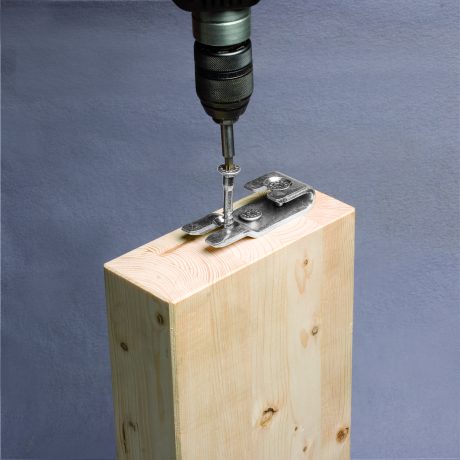

3. Install both brackets with the specified KNAPP SK screws.

4. Slide and hook the beams together until fully engaged.

5. Connection becomes load-bearing immediately.
