GIGANT 150 x 40 Heavy Timber Beam Hanger

The GIGANT 150 x 40 is a heavy-duty concealed beam hanger designed for high-capacity structural connections in timber framing, log building, and mass timber applications. The connector is composed of two identical steel brackets that interlock in a dovetail-like motion, allowing the secondary beam to slide into position with immediate load transfer.

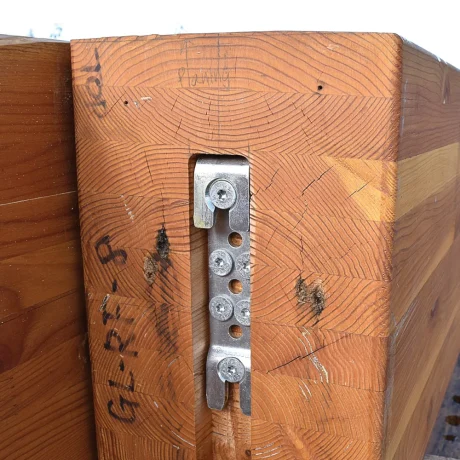

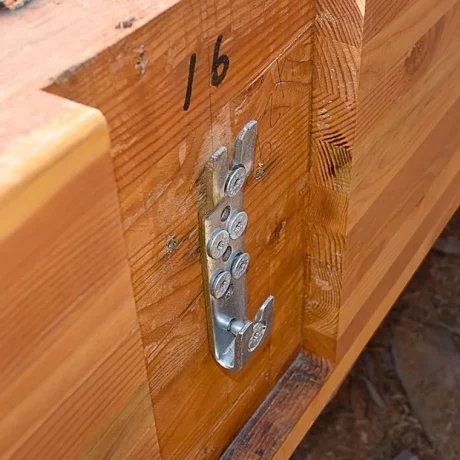

One bracket sits in a recessed housing and the other mounts directly on the beam surface using KNAPP SK screws. The short hooking path supports fast assembly, while the self-tensioning geometry maintains long-term joint compression. The connection can be installed fully concealed or visible depending on the design requirement.

Key Features

• High-load concealed beam hanger for main-to-secondary beam connections

• Short hooking path enables rapid drop-in assembly

• Maintains constant joint pressure for gap-free performance

• Suitable for softwood and hardwood per ETA extension

• Works with glulam, solid timber, mass timber, and log construction

• Can connect timber to timber, steel, or concrete bearing conditions

• Fire resistance performance with four-sided concealed installation

• Allows disassembly and reassembly when required

• Available in blue galvanized and hot-dip galvanized finishes

• Heavy timber beam to beam connections

• Glulam structural joints

• Timber frame and hybrid construction

• Log home construction

• Canopies, pergolas, sunrooms, exterior timber structures

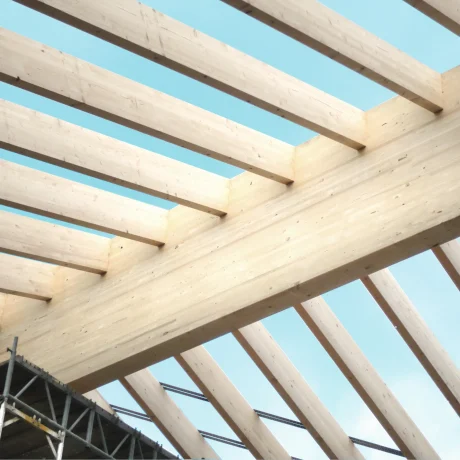

• Mass timber buildings requiring concealed connectors

Set Includes:

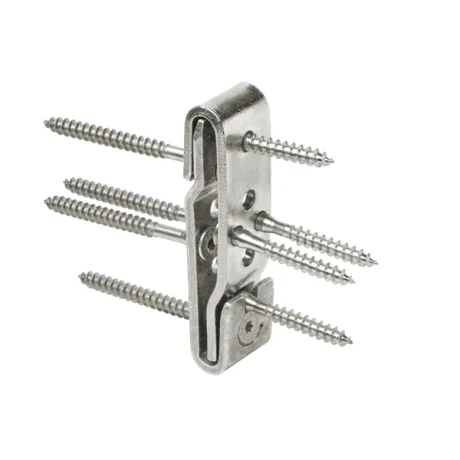

• 2 pcs. GIGANT 150/40 connectors

• 4 pcs. KNAPP SK screws 10 x 80 mm

• 4 pcs. KNAPP SK screws 10 x 120 mm

Load Capacity:

• 19.6 kN* characteristic F2,Rk in the insertion direction
  *Values apply only when using original KNAPP SK screws per ETA-10/0189, based on C24 pine.

Material and Installation Requirements:

• End grain installation: SK screws 10 x 120 mm

• Side grain installation: SK screws 10 x 80 mm

• Immediately load-bearing once the brackets are engaged

• Can be installed concealed with routed recess or visible

Optional Accessories:

• GIGANT Locking Clip for securing the connection against pull-out forces

• GIGANT Drilling Jig for precise screw positioning and consistent pilot hole layout

• MULTI F 40 Routing Jig for producing the connector recess with repeatable CNC-level accuracy

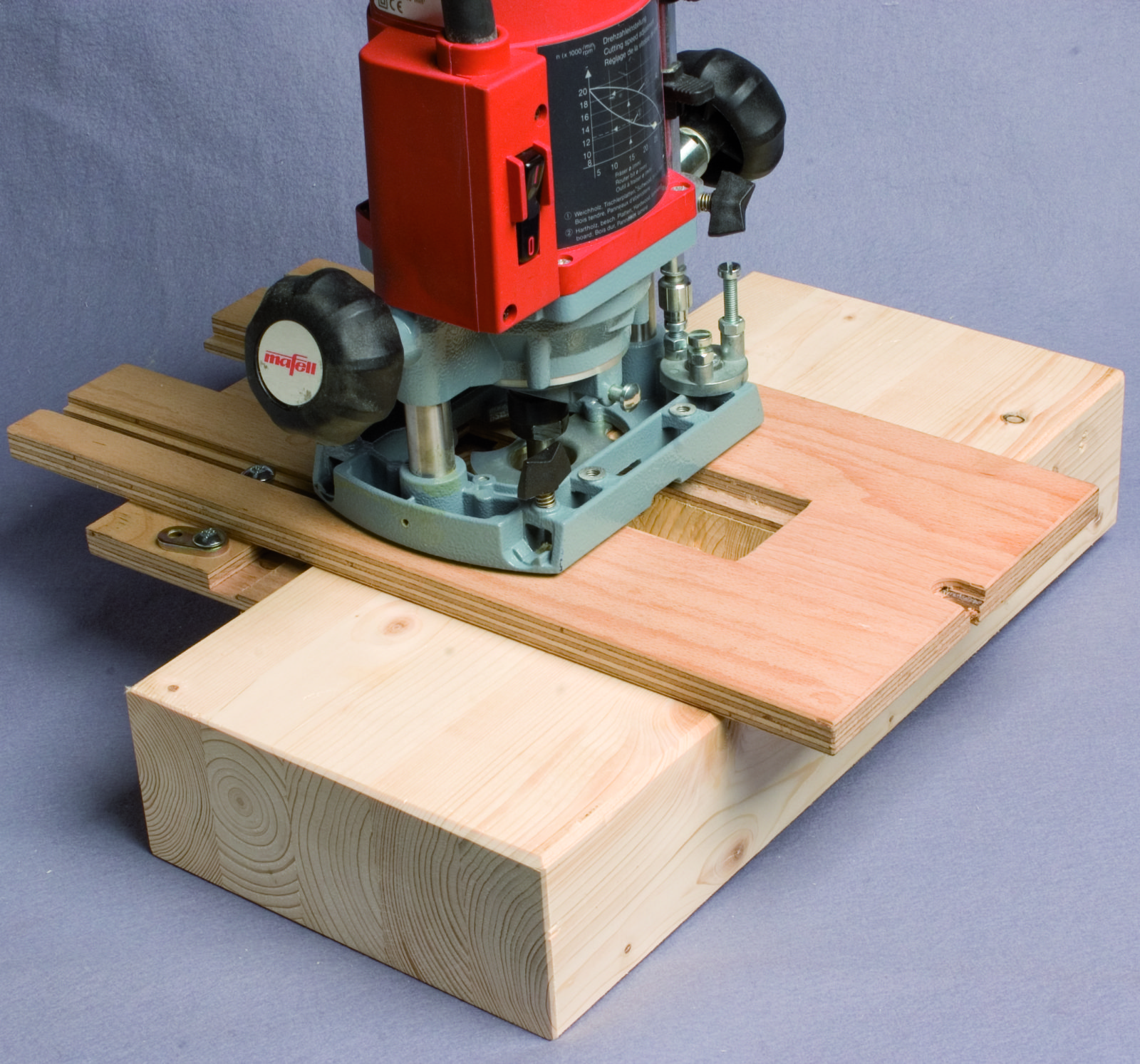

1. Cut the recess using CNC or the KNAPP MULTI F 40 routing jig.

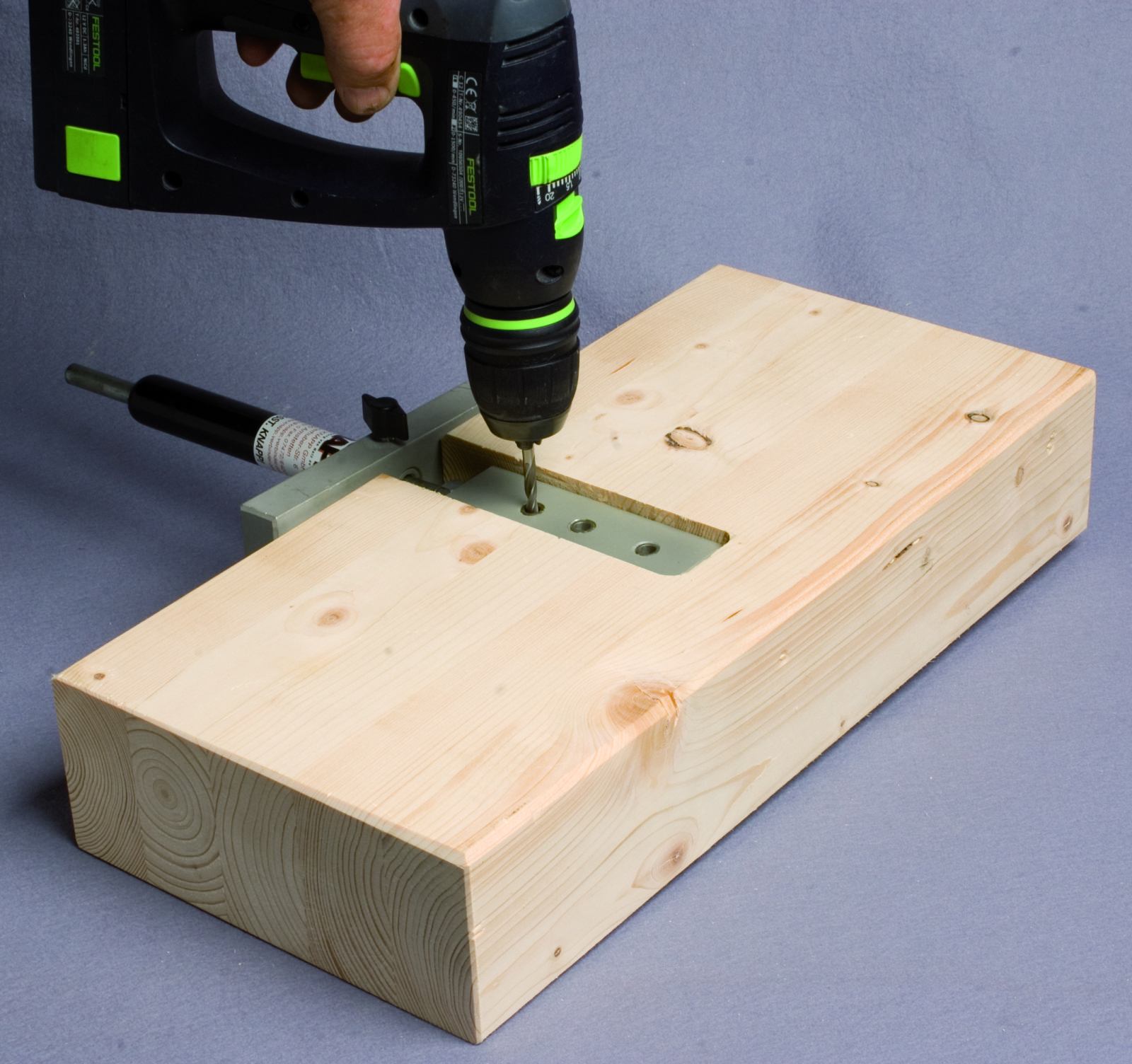

2. Pre-drill screw positions using CNC or the GIGANT drilling jig.

3. Install both brackets with the prescribed KNAPP SK screws.

4. Slide beams together until fully engaged.

5. Joint becomes load-bearing immediately.
