MEGANT 310 x 100 x 40 – Heavy Duty Beam Hanger

The MEGANT 310 x 100 x 40 is a pre engineered high capacity beam hanger system built for mass timber post and beam and girder connections. Manufactured from precision machined aluminum, the system uses two connector plates and a paired set of interlocking clamping jaws that automatically lock the connection once engaged.

Installation is possible from any direction — top, bottom, or either side — with only 19 mm of insertion travel required to fully seat the connector. The system compensates up to 3 mm of manufacturing or installation tolerance and supports fully concealed installation for improved fire performance. MEGANT provides consistent, repeatable assembly for shop prefabrication as well as rapid on site construction.

MEGANT connectors are suitable for timber to timber, timber to steel, and timber to concrete interfaces and are approved under ETA 15/0667.

Key Features

• High capacity aluminum beam hanger for mass timber structures

• Installation possible from all four directions

• Short 19 mm slide in travel for fast assembly

• Automatically locking clamping mechanism

• Compensates up to 3 mm of installation tolerance

• Fully concealed installation option for enhanced fire protection

• Corrosion resistant aluminum components

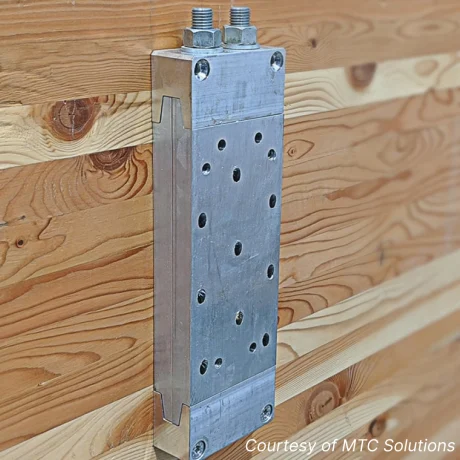

• Suitable for visible or concealed installation

• Ideal for prefabricated mass timber construction

• Glulam and solid timber beam hangers

• Mass timber post and beam systems

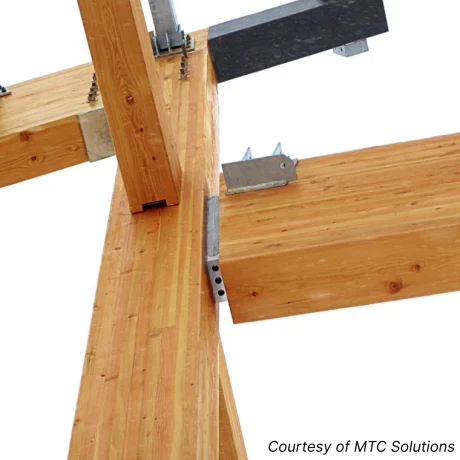

• Main to secondary beam and girder connections

• Hybrid timber to steel or concrete connections

• Commercial mass timber, engineered timber, and heavy timber projects

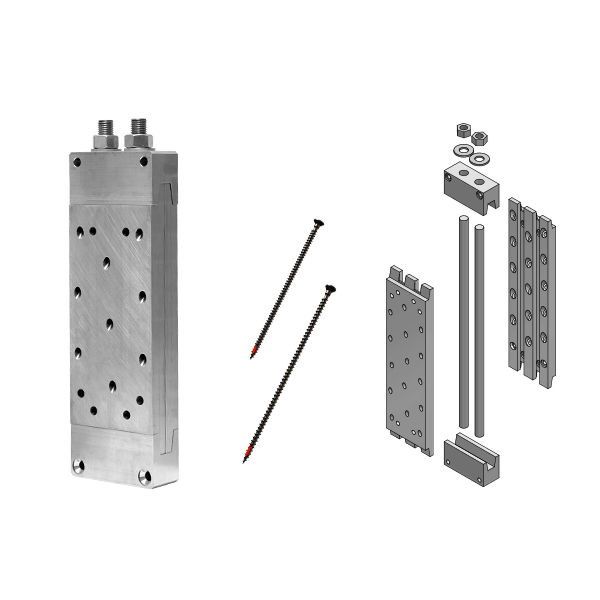

Included in the Set

• 2 MEGANT connector plates 250 / 100 / 20

• 1 clamping jaw 100 / 50 / 40

• 1 clamping jaw 100 / 50 / 40 / M16

• 2 threaded rods M16 / 340

• 2 M16 nuts

• 2 M16 washers

Required Screws (not included)

• 34 pcs fully threaded 8 × 160 mm screws installed at 45° per ETA

• ICC approved ASSY VG CSK or KNAPP SK screws per ETA 15/0667

Load Capacity

• F2,Rk = 124.0 kN in insertion direction*

• Minimum beam cross section: 140 × 440 mm

*Valid only when using approved screws according to ETA 15/0667

Material

• Aluminum alloy AW 6082 connector plates and jaws

• Threaded rod assembly per ETA specifications

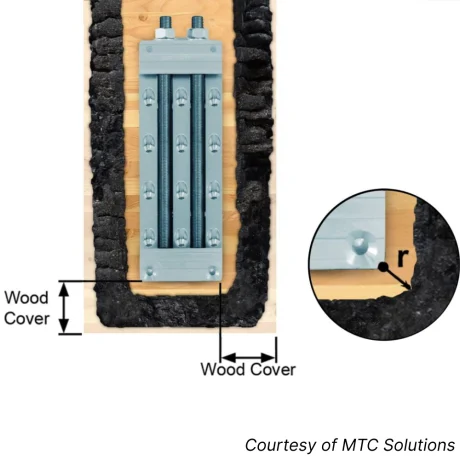

• CNC or rout the housing for concealed installation, or mount plates flush for visible installation.

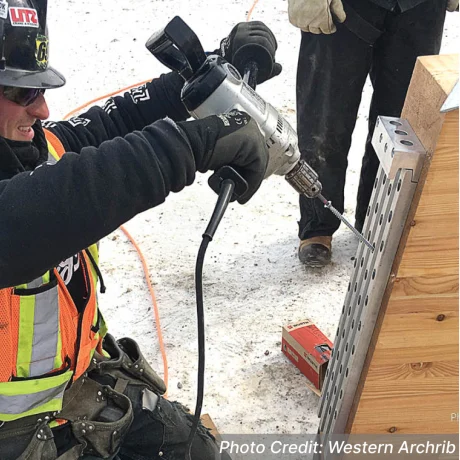

• Pre drill 45° and perpendicular screw holes using a MEGANT drilling jig for accurate positioning.

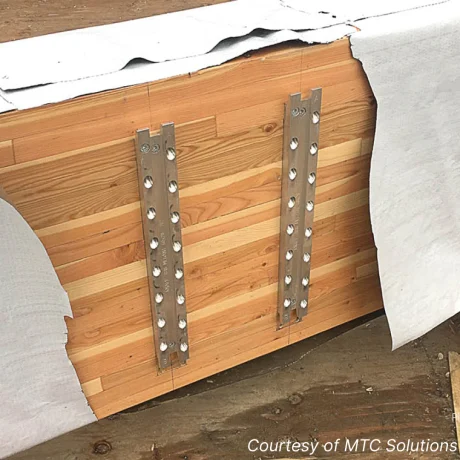

• Install both connector plates with the required fully threaded screws.

• Insert and tighten the clamping jaws and threaded rods until fully seated.

• Slide the beam into place — only 19 mm of travel is required for full engagement.

• Once engaged and tightened, the connection becomes immediately load bearing.
