MEGANT 310 x 60 x 40 – Heavy Duty Beam Hanger

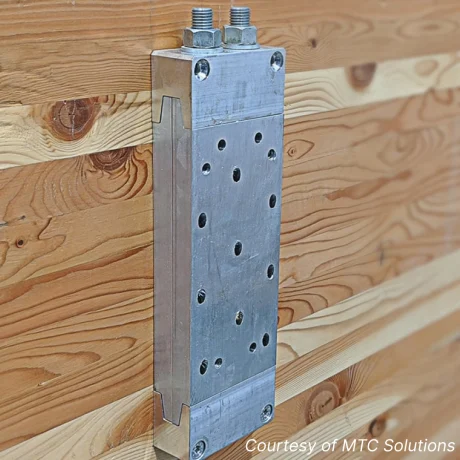

The MEGANT 310 x 60 x 40 is a high-capacity mass timber beam hanger engineered for demanding post-and-beam and girder-to-beam connections. Manufactured from precision-machined aluminum, the system consists of two identical connector plates, a pair of interlocking clamping jaws, and a threaded rod assembly that automatically locks the connection once engaged.

Its unique design allows installation from all four directions, including upward installation from below, with only 19 mm of insertion travel required to fully seat the connection. The MEGANT system accommodates 3 mm of installation tolerance, supports concealed installation for enhanced fire performance, and provides fast, reliable assembly with a high level of prefabrication.

MEGANT connectors are designed for timber-to-timber, timber-to-steel, and timber-to-concrete configurations and have been tested and approved under ETA 15/0667

Key Features

• High-capacity aluminum connector for mass timber post-and-beam joints

• Installation possible from top, bottom, or either side

• Only 19 mm of travel needed to engage the joint

• Automatically locking clamping system

• Supports 3 mm tolerance compensation

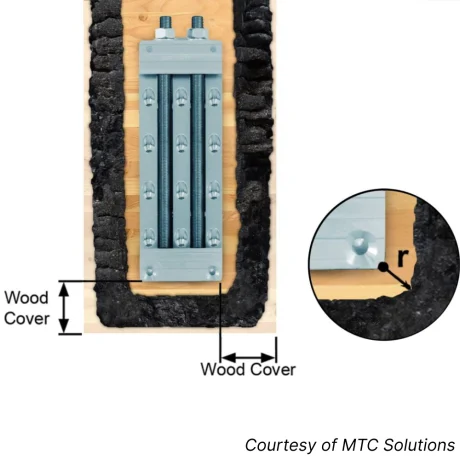

• Concealed installation option for improved fire resistance

• Corrosion-resistant aluminum connector body

• Suitable for timber, steel, and concrete connections

• High degree of prefabrication for efficient on-site assembly

• Beam hanger for glulam and solid sawn beams

• Mass timber post-and-beam systems

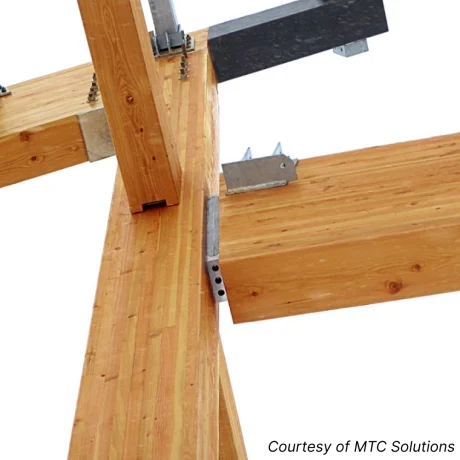

• Girder-to-purlin and main-to-secondary beam connections

• Hybrid connections with steel or concrete

• Engineered timber structures requiring high load transfer

• Timber frame, log building, heavy timber, and commercial mass timber projects

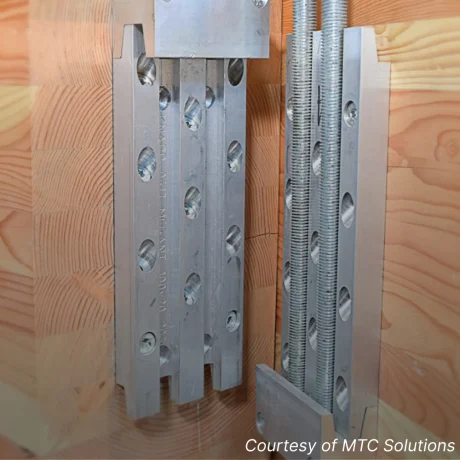

Included in the Set

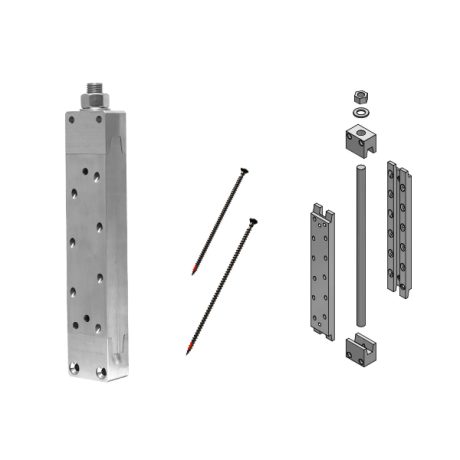

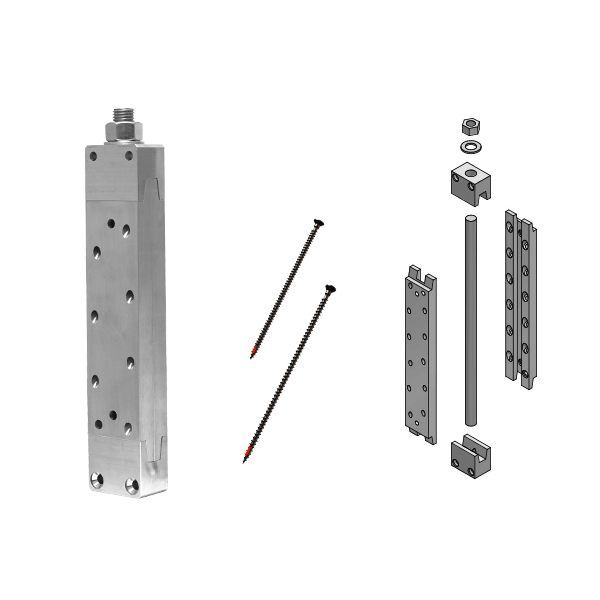

• 2 MEGANT connector plates 250 / 60 / 20

• 1 clamping jaw 60 / 50 / 40

• 1 clamping jaw 60 / 50 / 40 / M20

• 1 threaded rod M20 / 340

• 1 M20 nut

• 1 M20 washer

Required Screws (not included)

• 24 pcs fully threaded RICON S CS 8 × 160 mm screws (45° installation per ETA)

• ICC-approved ASSY VG CSK or equivalent KNAPP screws according to ETA 15/0667

Load Capacity

• F2,Rk = 96.8 kN* in insertion direction

• Minimum beam cross-section: 100 × 440 mm

• *Valid only when using original approved screws per ETA 15/0667

Material

• Aluminum alloy AW 6082 components

• Threaded rod and hardware per ETA specifications

• Rout or CNC machine the recess in both main and secondary members according to MEGANT installation dimensions.

• Pre-drill angled and perpendicular screw holes using a MEGANT drilling jig for accurate screw alignment.

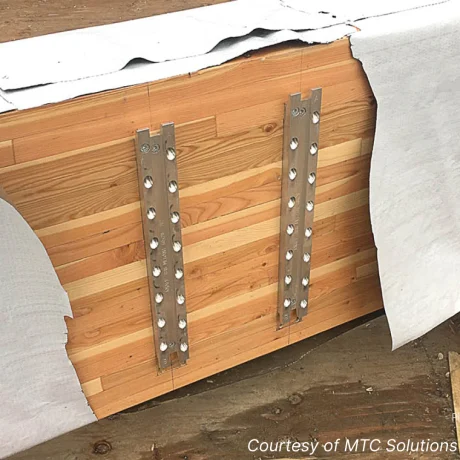

• Install the connector plates on both members with the specified fully threaded screws.

• Insert the clamping jaws and threaded rod, tightening the rod assembly to bring both jaws into full bearing.

• Engage the beams by sliding the connector into place. Only 19 mm of travel is required for full seating.

• Connection becomes immediately load-bearing once fully engaged and tightened.
