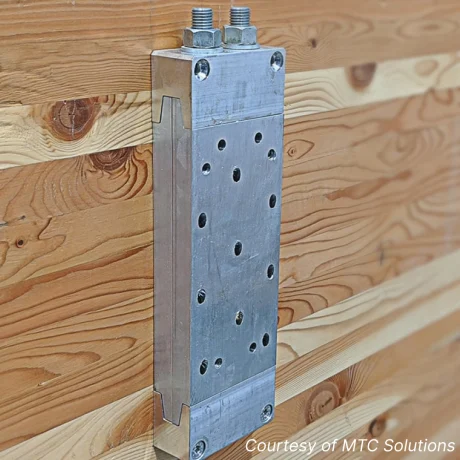

MEGANT 430 x 100 x 40 – Heavy Duty Beam Hanger

The MEGANT 430 x 100 x 40 is a pre engineered high capacity beam hanger system developed for mass timber post and beam and girder connections. Precision machined from high strength aluminum, the system includes two connector plates and an interlocking pair of clamping jaws that automatically lock the connection once engaged.

Installation is possible from any direction — top, bottom, or either side — with only 19 mm of insertion travel required to fully seat the connector. The MEGANT system compensates up to 3 mm of manufacturing or installation tolerance, supports fully concealed installation for improved fire performance, and provides repeatable, shop friendly prefabrication and fast on site assembly.

MEGANT connectors are ETA approved under ETA 15/0667 and are suitable for structural timber to timber, timber to steel, and timber to concrete interfaces. With ICC approved screw patterns, the system delivers reliable high capacity performance for engineered mass timber structures.

Key Features

• High capacity machined aluminum beam hanger

• Installation possible from all four directions

• Short 19 mm slide in distance for fast assembly

• Automatically locking clamping mechanism

• Compensates up to 3 mm of installation tolerance

• Concealed installation option for enhanced fire protection

• Corrosion resistant aluminum components

• Suitable for visible or concealed installation

• Ideal for shop prefabrication and mass timber construction

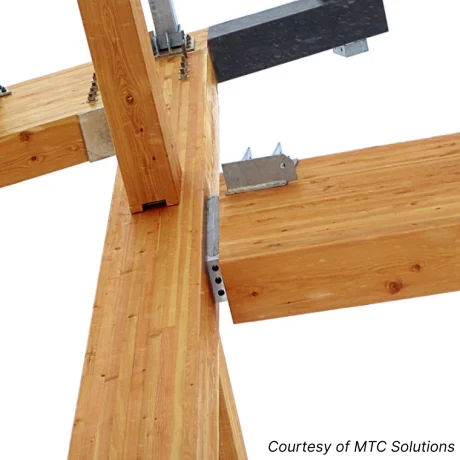

• Glulam and solid timber beam hangers

• Mass timber post and beam structures

• Main to secondary beam and girder connections

• Hybrid timber to steel and timber to concrete assemblies

• Commercial mass timber and engineered structural timber buildings

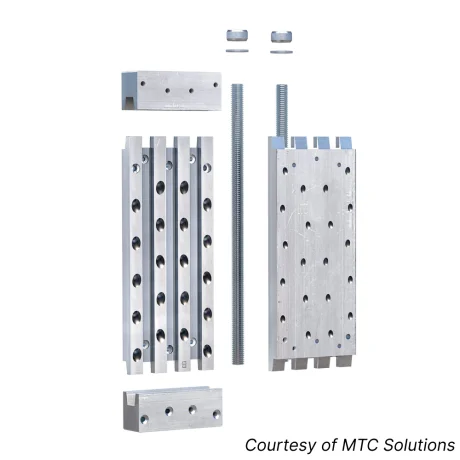

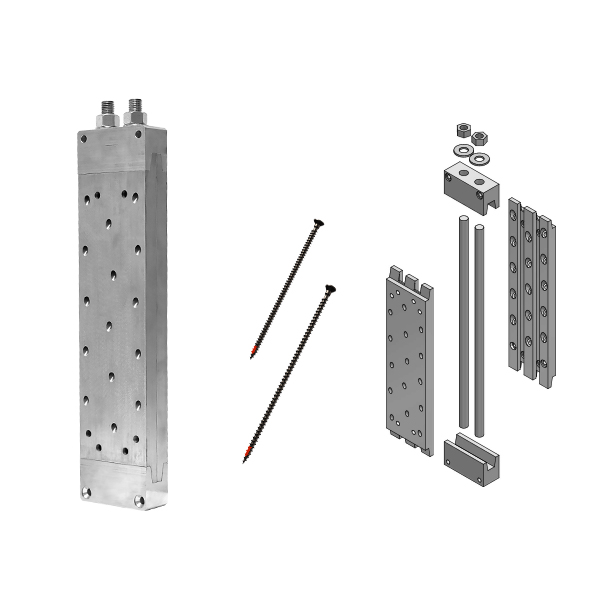

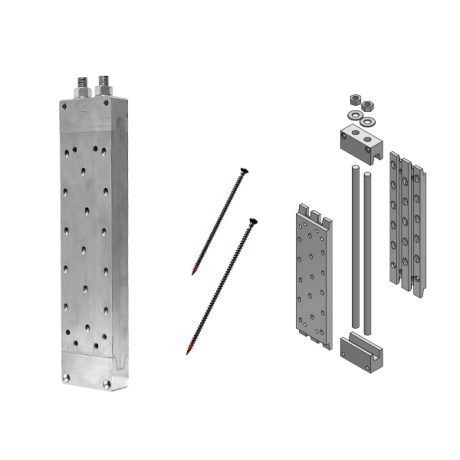

Included in the Set

• 2 MEGANT connector plates 370 / 100 / 20

• 1 clamping jaw 100 / 50 / 40

• 1 clamping jaw 100 / 50 / 40 / M16

• 2 threaded rods M16 / 460

• 2 M16 nuts

• 2 M16 washers

Required Screws (not included)

• 46 pcs fully threaded 8 × 160 mm screws for angled 45° installation per ETA

• ICC approved ASSY VG CSK or KNAPP SK screws per ETA 15/0667

Load Capacity

• F2,Rk = 207.0 kN in insertion direction*

• Minimum beam cross section: 140 × 520 mm

*Valid only when using approved screws according to ETA 15/0667

Material

• Aluminum alloy AW 6082 connector plates and clamping jaws

• Threaded rod system per ETA specifications

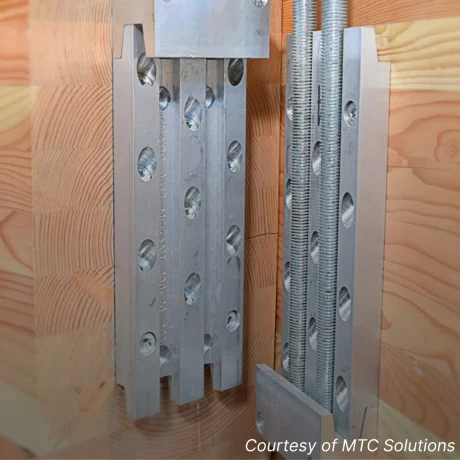

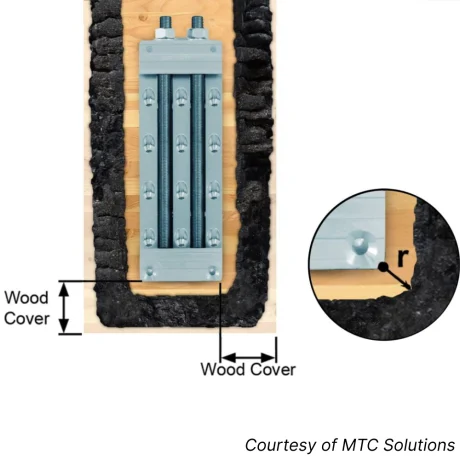

• CNC or rout the housing per MEGANT dimensions for a concealed installation, or mount plates flush for a visible configuration.

• Pre-drill angled (45°) and perpendicular screw holes using a MEGANT drilling jig for accurate screw placement.

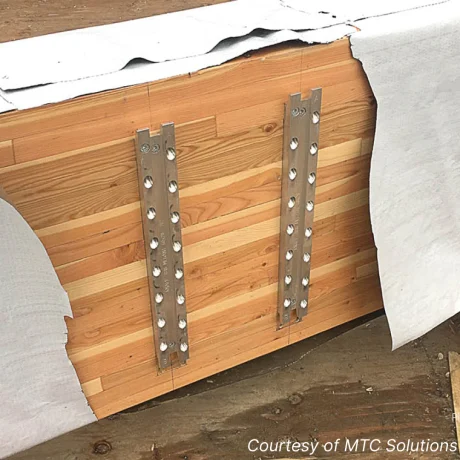

• Install connector plates using the required fully threaded screws.

• Insert and tighten the clamping jaws and threaded rods until fully seated.

• Slide the beam into place — only 19 mm of travel is required for full engagement.

• Once engaged and tightened, the connector becomes immediately load bearing.
