MEGANT 430 x 150 x 50 – Heavy Duty Beam Hanger

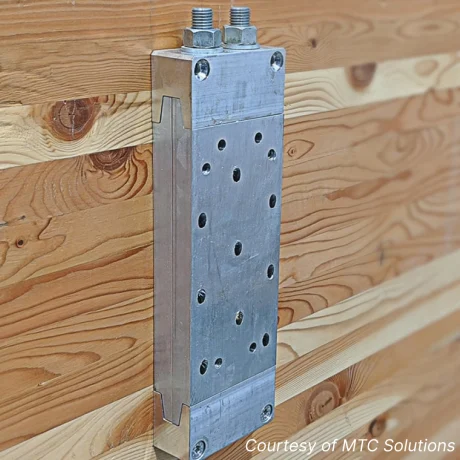

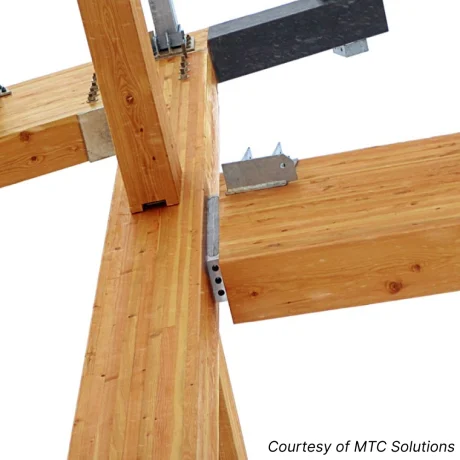

The MEGANT 430 x 150 x 50 is a high capacity, pre engineered beam hanger system designed for demanding mass timber post and beam and girder connections. Precision machined from aluminum, the system incorporates two connector plates and a pair of interlocking clamping jaws that automatically lock the connection as soon as the beam is engaged.

The MEGANT system allows installation from any direction — top, bottom, or either side — with only 19 mm of insertion travel required to fully seat the connector. It compensates up to 3 mm of manufacturing or installation tolerance and can be installed fully concealed for improved fire performance. MEGANT enables clean, repeatable assembly in both prefabricated shop environments and on site installations.

MEGANT connectors are suitable for structural timber to timber, timber to steel, and timber to concrete connections and are approved under ETA 15/0667.

Key Features

• High capacity machined aluminum connector for mass timber structures

• Installation possible from all four directions

• Short 19 mm slide in distance for rapid assembly

• Automatically locking clamping jaw system

• Compensates up to 3 mm of installation tolerance

• Fully concealed installation option for enhanced fire resistance

• Corrosion resistant aluminum components

• Suitable for both visible and concealed mounting

• Ideal for large format mass timber and engineered timber construction

• Glulam and solid timber beam hangers

• Mass timber post and beam systems

• Main to secondary beam and girder connections

• Timber to steel and timber to concrete hybrid connections

• Commercial and heavy timber structures requiring high capacity connectors

Included in the Set

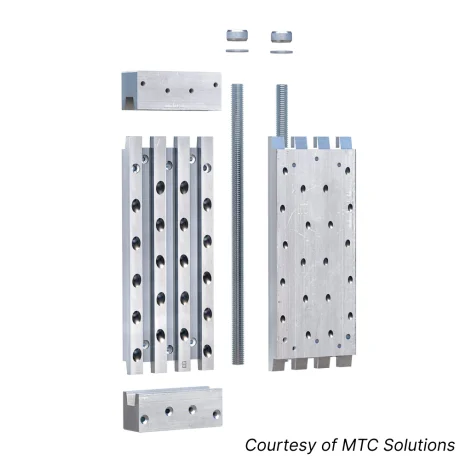

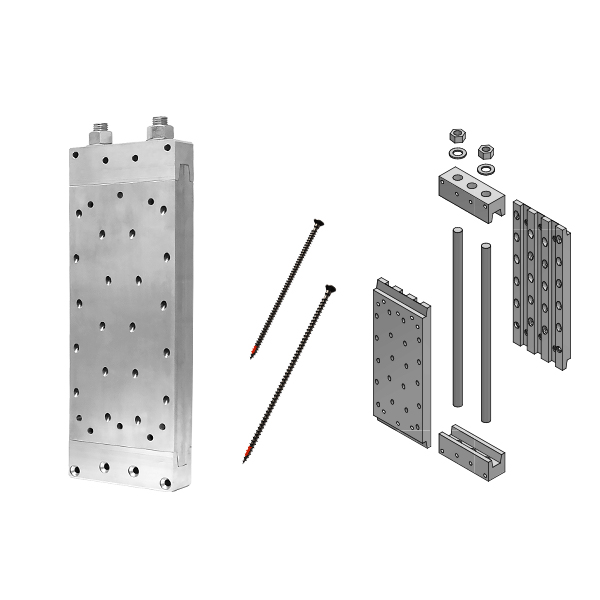

• 2 MEGANT connector plates 370 / 150 / 25

• 1 clamping jaw 150 / 50 / 50

• 1 clamping jaw 150 / 50 / 50 / M20

• 2 threaded rods M20 / 460

• 2 M20 nuts

• 2 M20 washers

Required Screws (not included)

• 64 pcs fully threaded 8 × 160 mm screws installed at 45° per ETA
  (or equivalent approved KNAPP SK / ASSY VG CSK screws per ETA 15/0667)

Load Capacity

• F2,Rk = 260.0 kN in insertion direction*

• Minimum beam cross section: 190 × 520 mm

*Valid only when using approved screws according to ETA 15/0667

Material

• Aluminum alloy AW 6082 connector plates and jaws

• Threaded rod components per ETA specifications

• CNC or rout the required recess for concealed installation, or mount plates flush for visible installation.

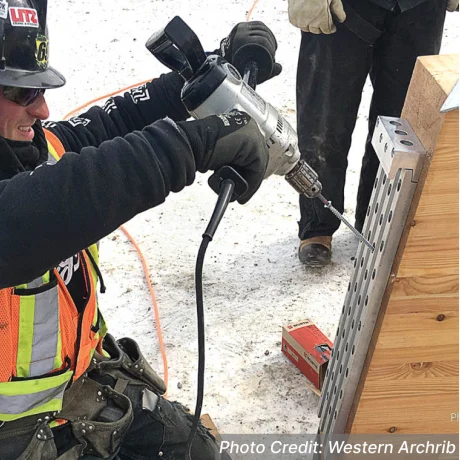

• Pre drill 45° and perpendicular screw holes using a MEGANT drilling jig for accurate placement.

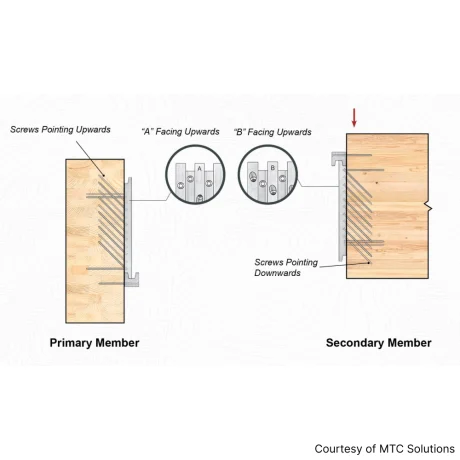

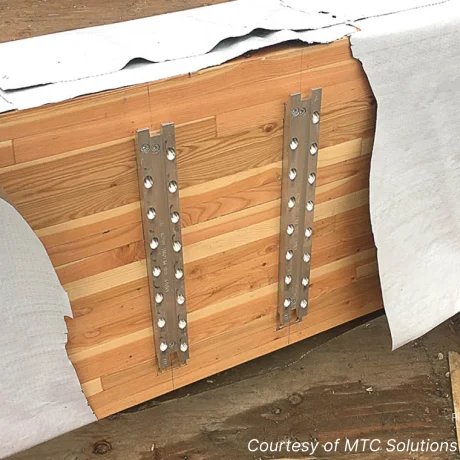

• Install both connector plates using the required fully threaded screws.

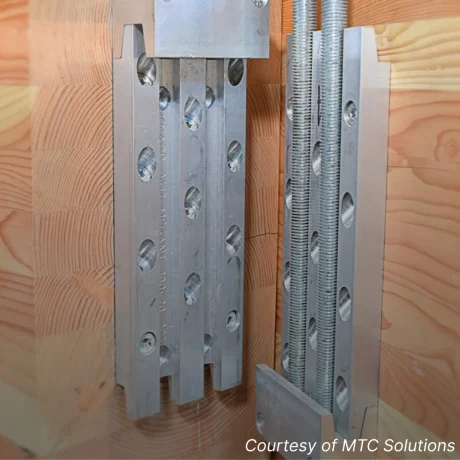

• Insert and tighten the clamping jaws and threaded rods until seated.

• Slide the beam into position; only 19 mm of travel is required to fully engage the system.

• Once engaged and tightened, the connection becomes immediately load bearing.
