MEGANT 430 x 60 x 40 – Heavy Duty Beam Hanger

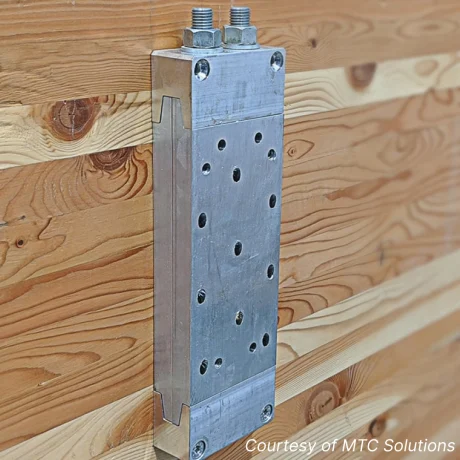

The MEGANT 430 x 60 x 40 is a pre engineered high-capacity beam hanger system developed for mass timber post and beam and girder connections. Manufactured from precision machined aluminum, the system uses two connector plates and a paired set of interlocking clamping jaws that automatically lock the connection once engaged.

Installation is possible from any direction — top, bottom, or either side — with only 19 mm of travel required to fully seat the connector. The MEGANT system compensates for up to 3 mm of tolerance, supports fully concealed installation for improved fire resistance, and provides consistent, replicable assembly in both shop prefabrication and on-site installation.

MEGANT connectors are approved under ETA 15/0667 and are suitable for structural timber to timber, timber to steel, and timber to concrete interfaces. With engineered geometry and ICC-approved screw configurations, MEGANT provides reliable performance for high-capacity mass timber structures.

Key Features

• High-capacity machined aluminum connector

• Installation possible from all four directions

• Short 19 mm insertion distance for rapid assembly

• Automatically locking clamping mechanism

• Compensates up to 3 mm of installation tolerance

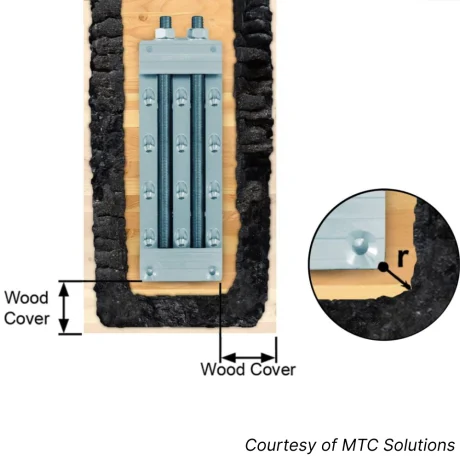

• Concealed installation option for enhanced fire performance

• Corrosion resistant aluminum components

• Can be installed in visible or concealed configurations

• Ideal for prefabricated mass timber construction

• Glulam and solid timber beam hangers

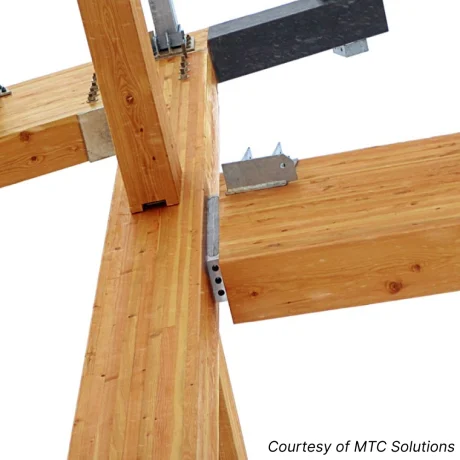

• Mass timber post and beam systems

• Main to secondary beam and girder connections

• Hybrid timber to steel and timber to concrete structures

• Engineered timber buildings and heavy timber construction

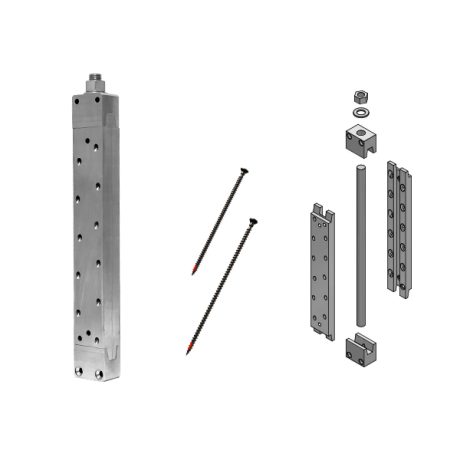

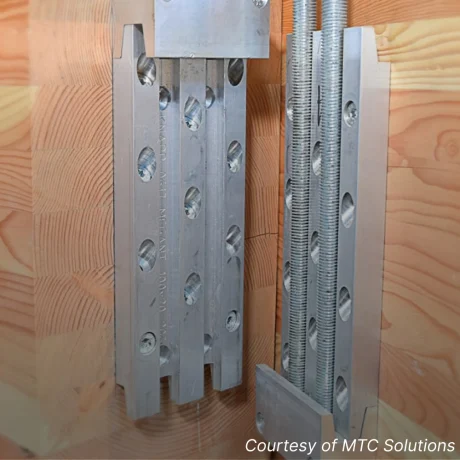

Included in the Set

• 2 MEGANT connector plates 370 / 60 / 20

• 1 clamping jaw 60 / 50 / 40

• 1 clamping jaw 60 / 50 / 40 / M20

• 1 threaded rod M20 / 460

• 1 M20 nut

• 1 M20 washer

Required Screws (not included)

• 32 pcs fully threaded 8 × 160 mm screws for 45° installation per ETA

• ICC approved ASSY VG CSK or KNAPP SK screws per ETA 15/0667

Load Capacity

• F2,Rk = 152.0 kN in insertion direction*

• Minimum beam cross section: 100 × 520 mm

* Valid only when using approved screws according to ETA 15/0667

Material

• High-strength aluminum alloy components

• Threaded rod assembly per ETA specifications

• CNC or rout the housing to the specified MEGANT dimensions for concealed installation, or mount plates flush for a visible installation.

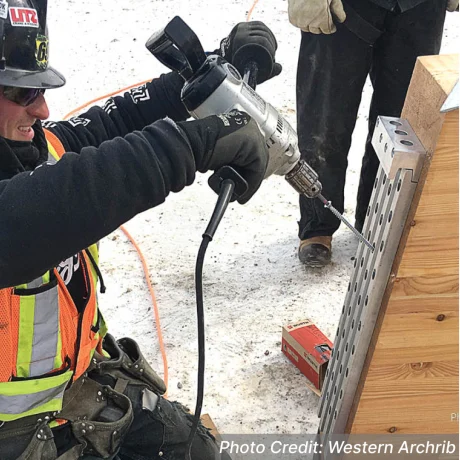

• Pre-drill angled and perpendicular screw holes using a MEGANT drilling jig for precise alignment.

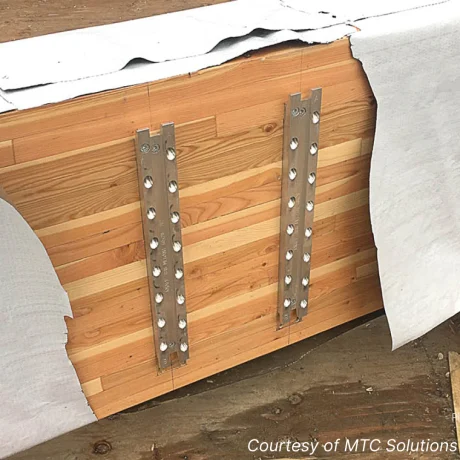

• Install the connector plates with the required fully threaded screws.

• Insert and tighten the clamping jaws and threaded rod until fully seated.

• Slide the beam into place; only 19 mm of movement is required for full engagement.

• Once engaged and tensioned, the connector becomes immediately load-bearing.
