MEGANT 550 x 150 x 50 – Heavy Duty Beam Hanger

The MEGANT 550 x 150 x 50 is a pre engineered, ultra high capacity beam hanger system designed for large-scale mass timber post and beam and girder connections. Precision machined from aluminum, the system uses two connector plates and a heavy duty pair of interlocking clamping jaws that automatically lock the connection as soon as the beam is engaged.

Installation is possible from any direction — top, bottom, or either side — with only 19 mm of insertion travel required. The MEGANT system compensates up to 3 mm of installation tolerance and supports fully concealed installation for enhanced fire protection. Its engineered geometry delivers repeatable installation quality in both shop prefabrication and on site construction.

MEGANT connectors are suitable for structural timber to timber, timber to steel, and timber to concrete interfaces and are approved under ETA 15/0667.

Key Features

• High capacity machined aluminum beam hanger

• Installation possible from all four directions

• Short 19 mm slide in distance for rapid assembly

• Automatically locking clamping mechanism

• Compensates up to 3 mm of installation tolerance

• Concealed installation option for improved fire performance

• Corrosion resistant aluminum components

• Suitable for visible or concealed mounting

• Ideal for prefabricated mass timber systems requiring high loads

• Glulam and solid timber beam hangers

• Mass timber post and beam systems

• Main to secondary beam and girder connections

• Hybrid assemblies (timber to steel or concrete)

• Engineered timber and heavy timber commercial structures

Included in the Set

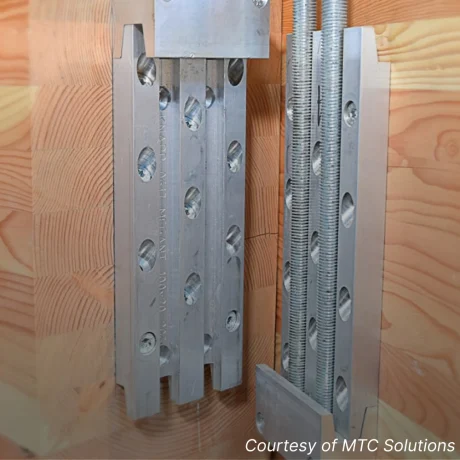

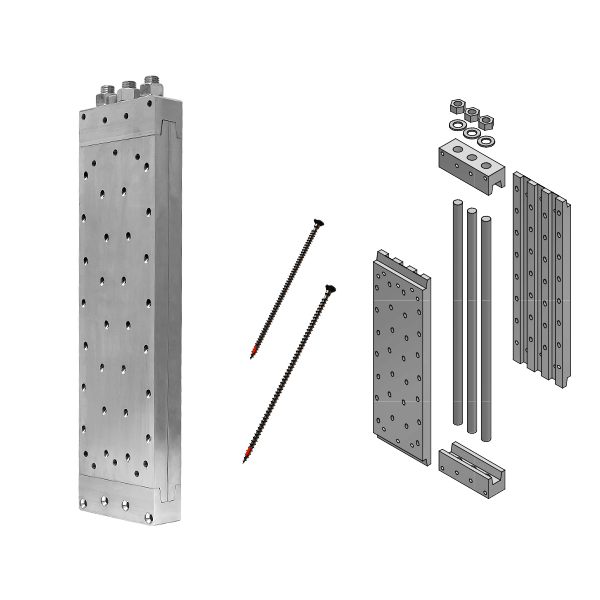

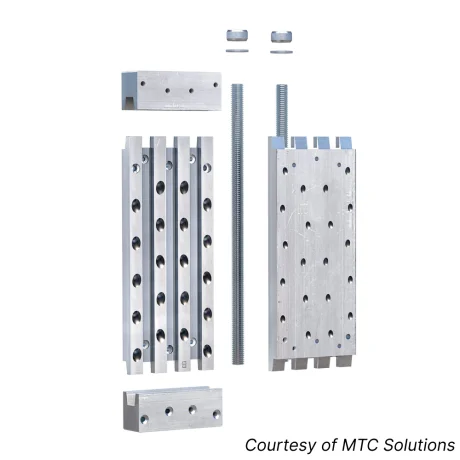

• 2 MEGANT connector plates 490 / 150 / 25

• 1 clamping jaw 150 / 50 / 50

• 1 clamping jaw 150 / 50 / 50 / M20

• 3 threaded rods M20 / 580

• 3 M20 nuts

• 3 M20 washers

Required Screws (not included)

• 80 pcs fully threaded 8 × 160 mm screws installed at 45° per ETA

• ICC approved ASSY VG CSK or KNAPP SK screws per ETA 15/0667

Load Capacity

• F2,Rk = 364.0 kN in insertion direction*

• Minimum beam cross section: 190 × 640 mm

*Valid only when using approved screws according to ETA 15/0667

Material

• High strength aluminum alloy AW 6082 components

• Threaded rod assemblies per ETA specifications

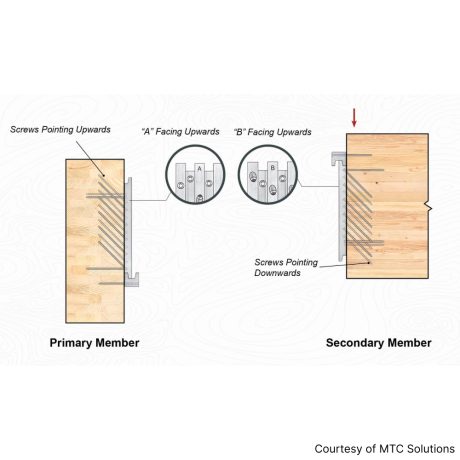

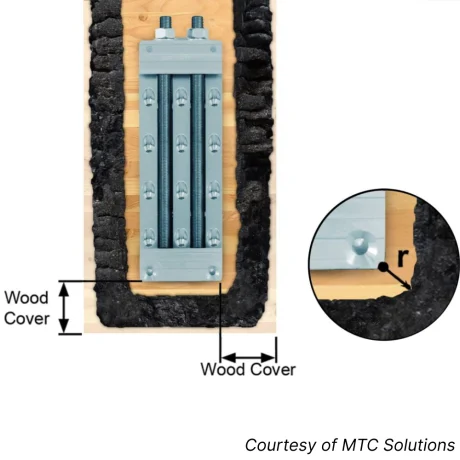

• CNC or rout the required recess for concealed installation, or mount plates flush for visible mounting.

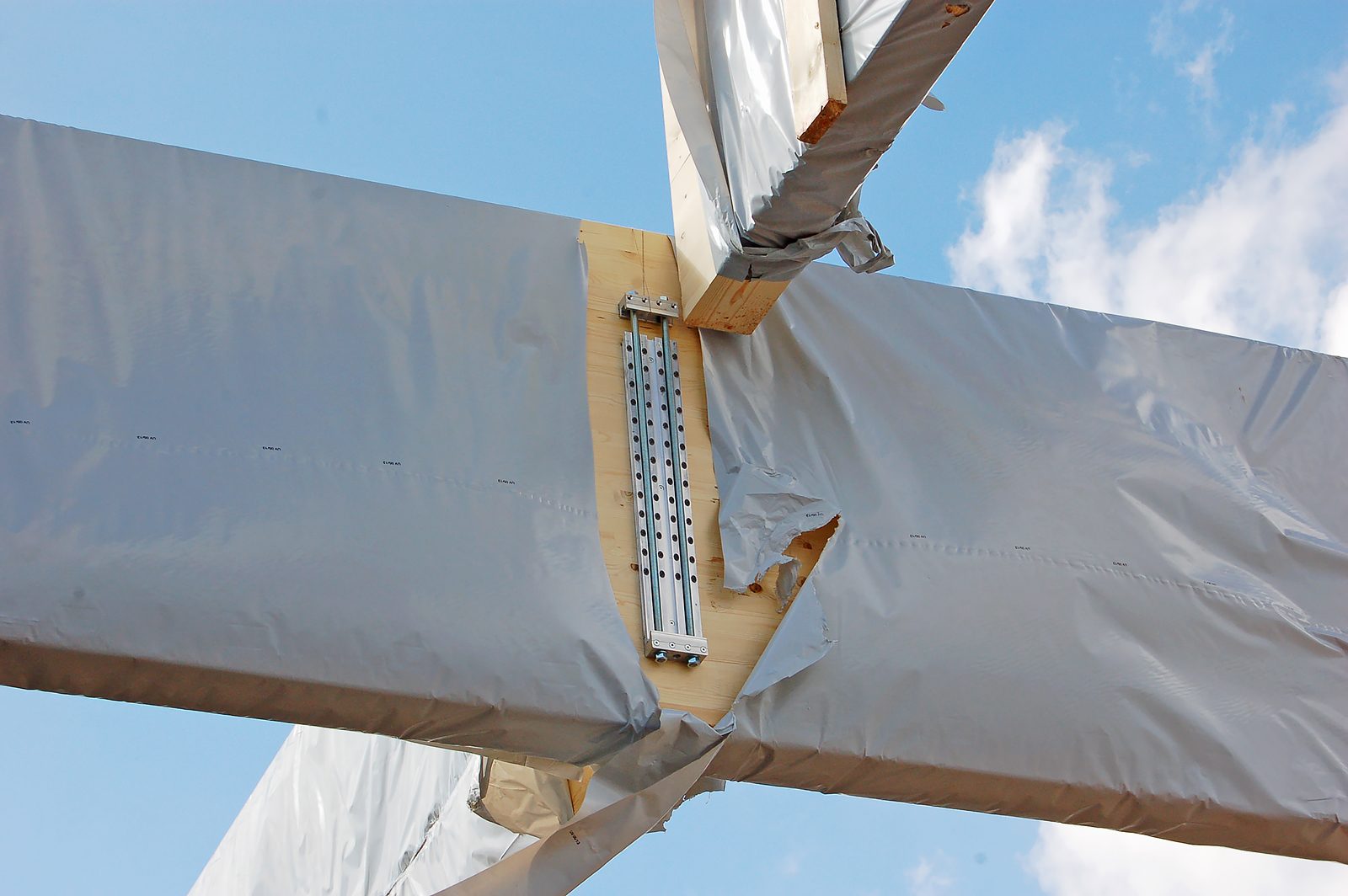

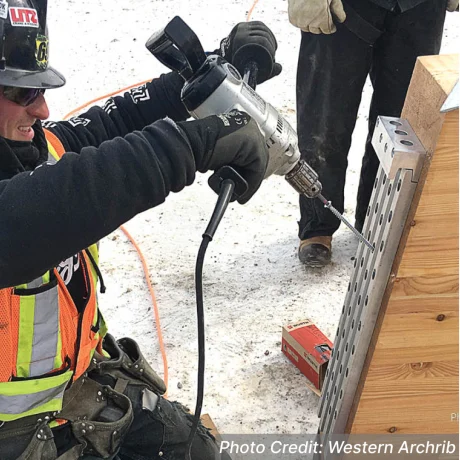

• Pre drill angled (45°) and perpendicular screw holes using a MEGANT drilling jig for accurate alignment.

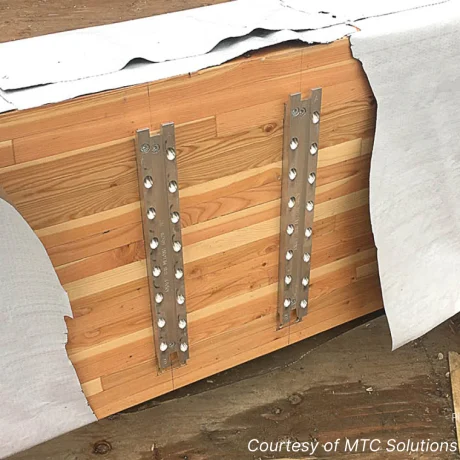

• Install both connector plates using the required fully threaded screws.

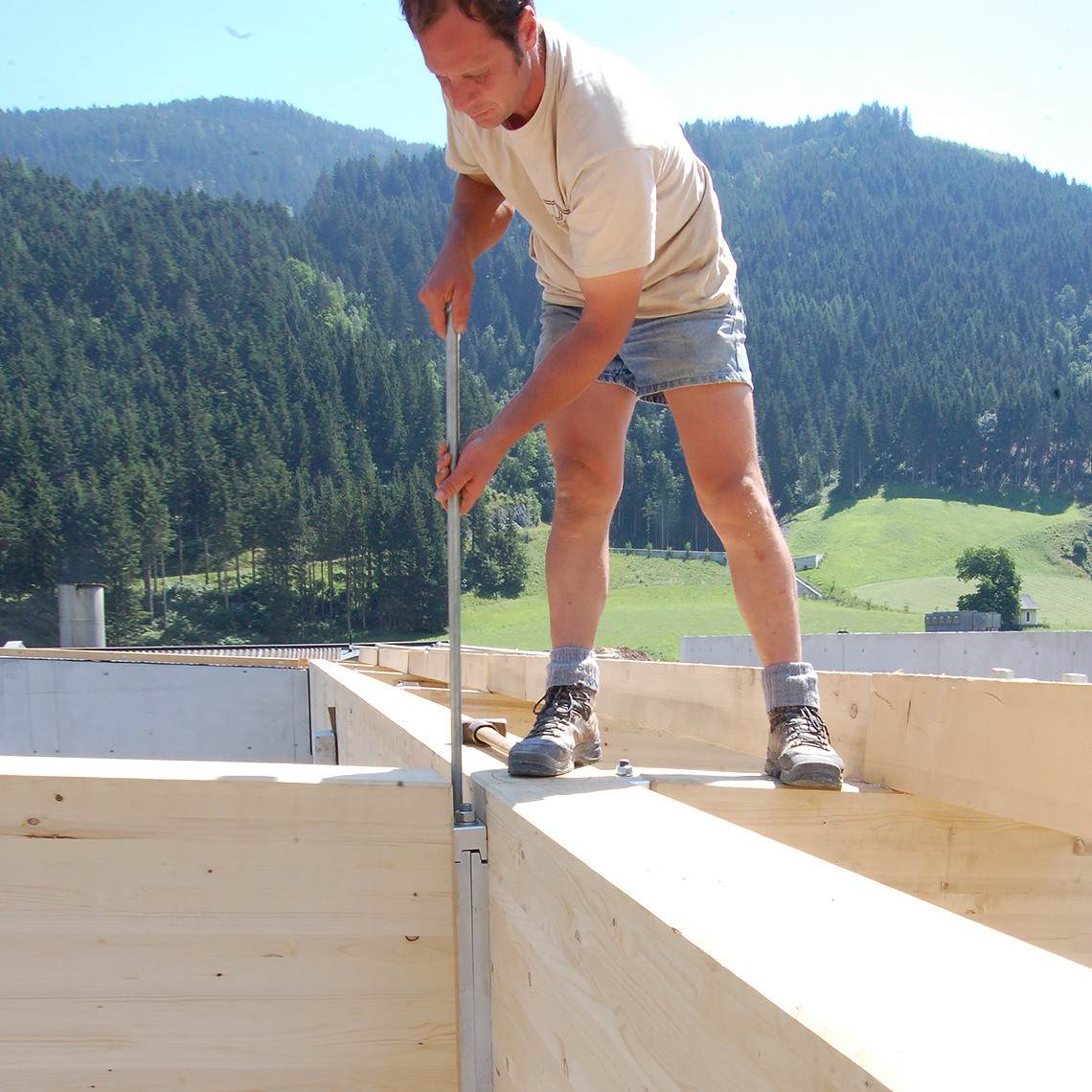

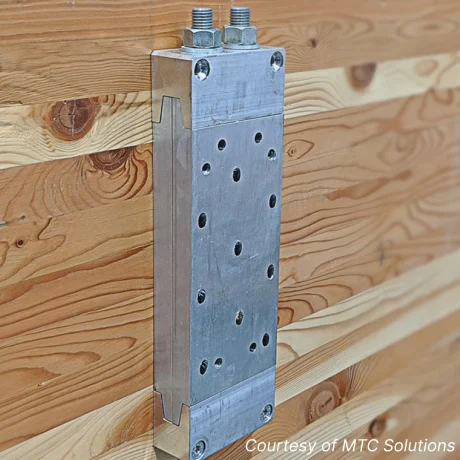

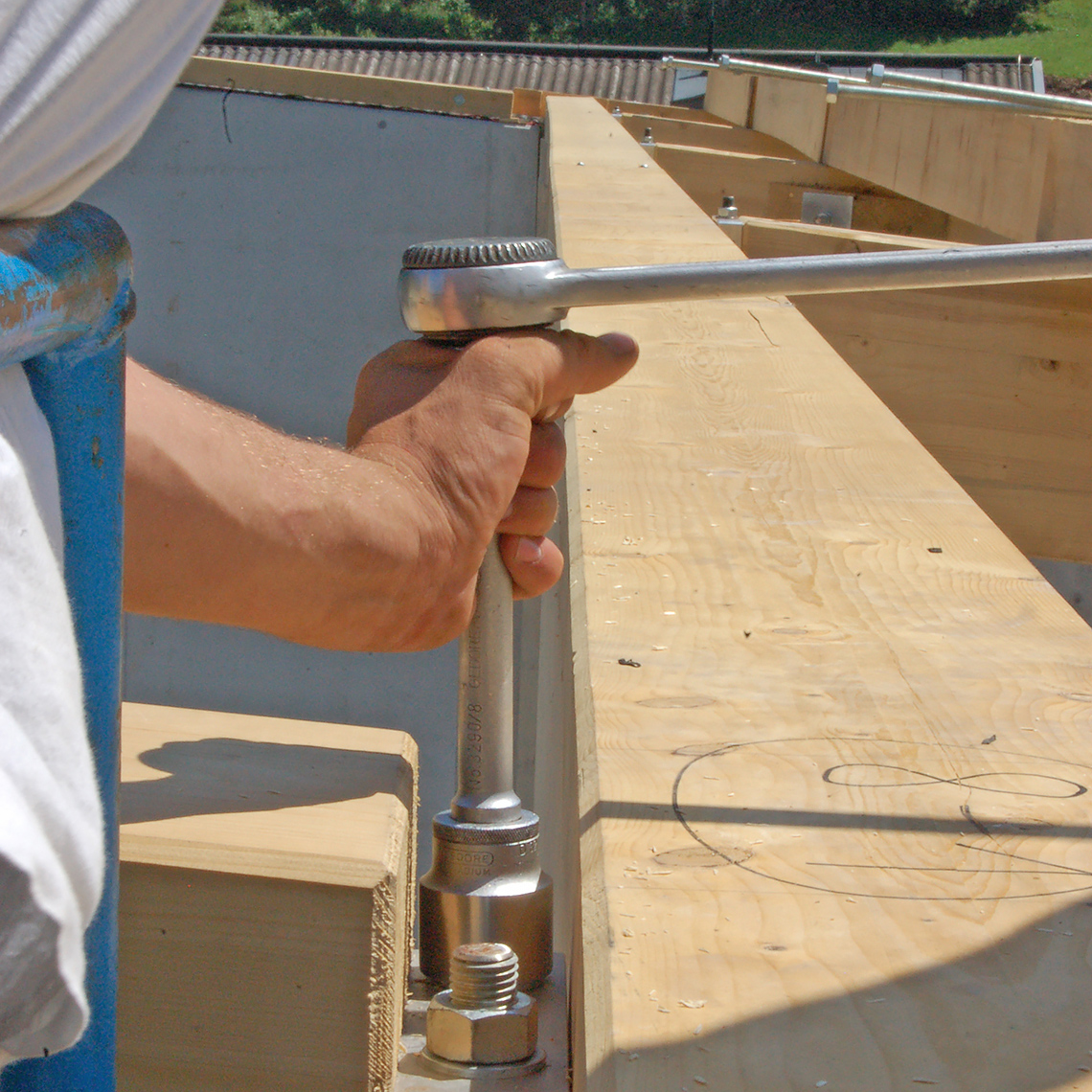

• Insert and tighten the clamping jaws and all threaded rods until fully seated.

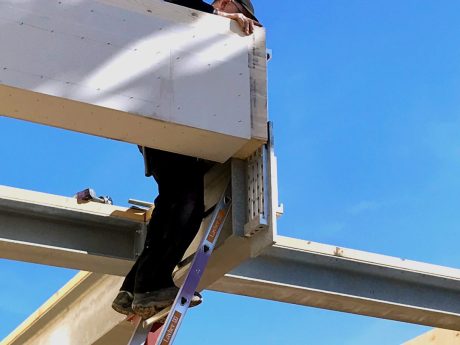

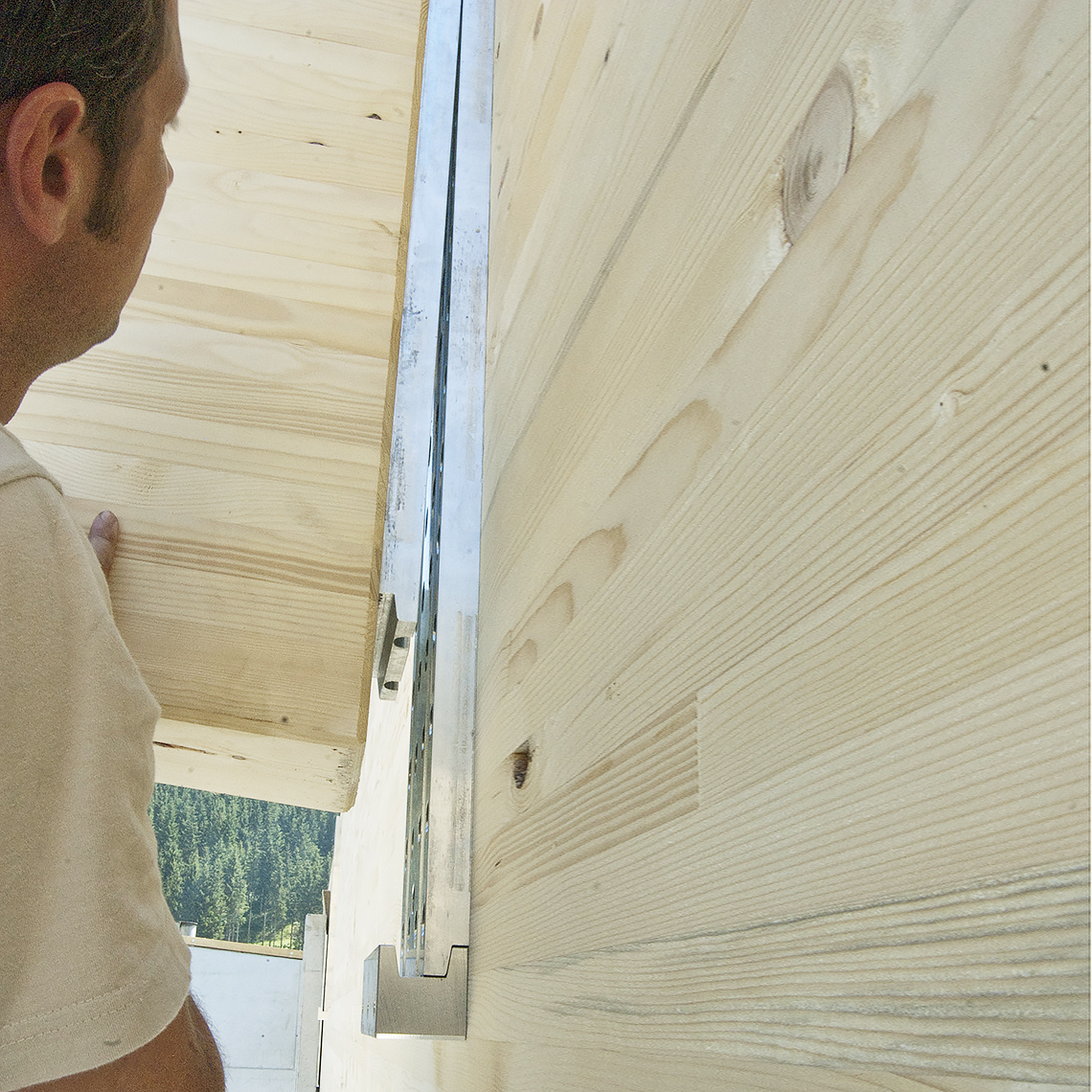

• Slide the beam into position — only 19 mm of travel is needed for full engagement.

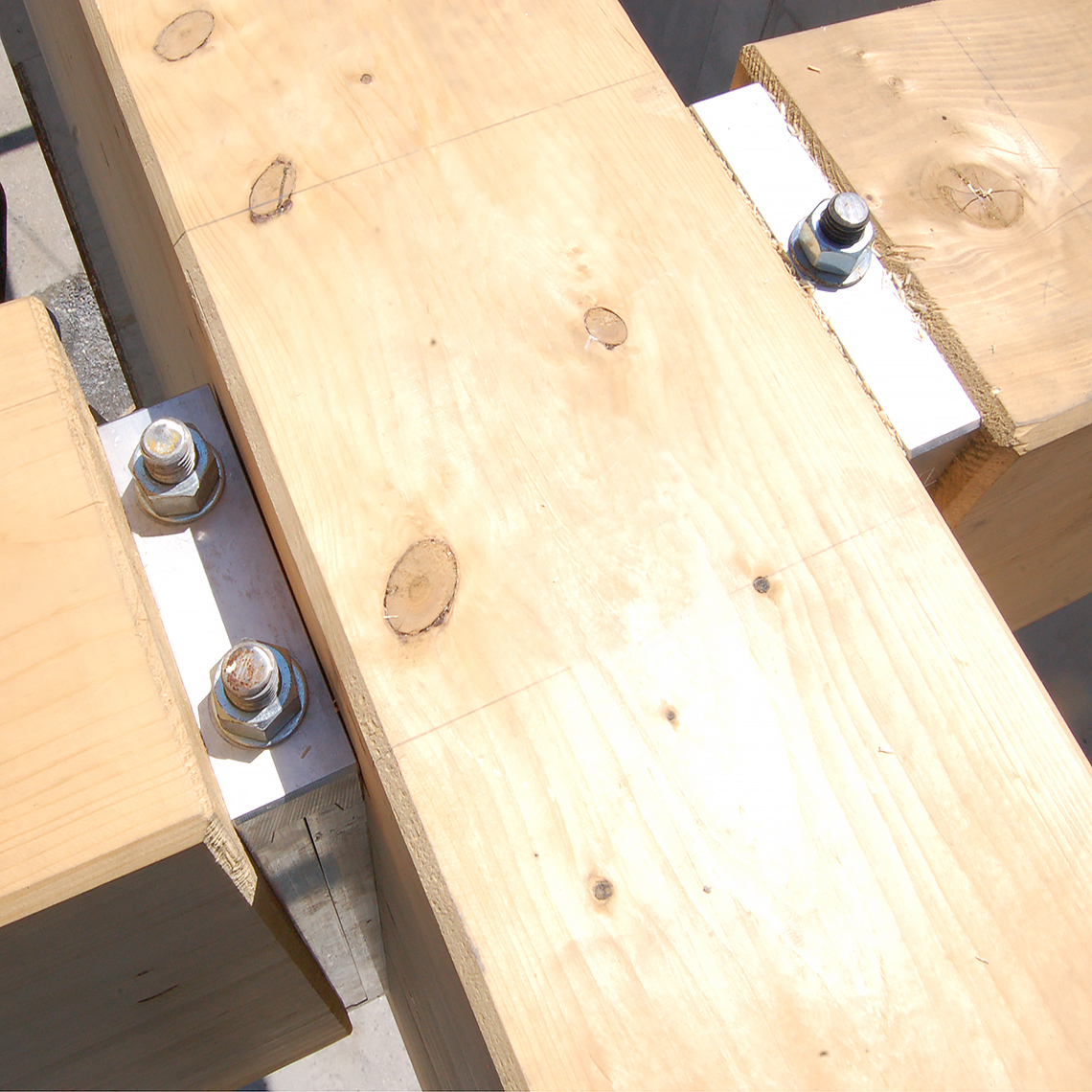

• Once tightened, the connection becomes immediately load bearing.
