RICON 16 x 66 EA Stainless Steel Beam Hanger

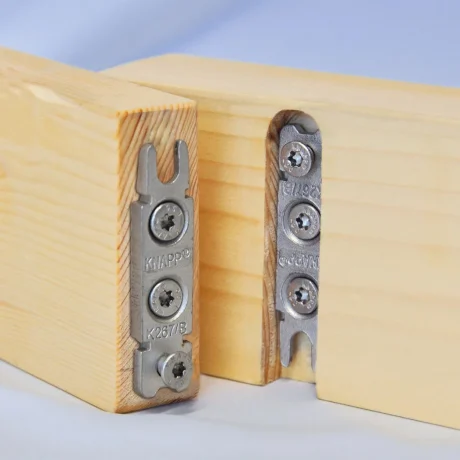

The RICON 16 x 66 EA Stainless Steel Beam Hanger is a compact concealed connection system designed for lightweight timber joints and fine architectural applications where corrosion resistance and precision are essential. Made from A2 stainless steel, it provides long-term durability in both indoor and outdoor environments (Service Class 3).

This connector consists of two identical stainless steel plates that interlock in a dovetail-like fashion to form a tight, self-aligning joint. The 66 mm plates allow for concealed, corrosion-resistant connections in small structural members, furniture-grade joinery, or decorative wood applications. Installation is fast and accurate using A2 stainless steel screws.

Key Features

• Concealed single connection for compact timber members

• 66 mm stainless steel plates with a slim 16 mm profile

• Load capacity up to 4.8 kN (insertion direction, per ETA 10/0189 with KNAPP A2 screws)

• Made from A2 stainless steel for corrosion resistance in outdoor or humid conditions

• Suitable for oak, Douglas fir, larch, and impregnated woods such as Accoya

• Self-tightening dovetail design ensures precise alignment and tight joints

• Adjustable to compensate for manufacturing or installation tolerances

• Compatible with alternate stainless steel screw options (load rating may vary)

• Optional A4 marine-grade stainless steel version available upon request

• Fine timber joinery and furniture manufacturing

• Pergolas, canopies, and small outdoor structures

• Balconies, decking, and façade details

• Playground and sports installations

• Hybrid wood-to-steel or wood-to-concrete joints

• Architectural and decorative visible timber assemblies

• Type: RICON 16 × 66 EA Stainless Steel Single Connection

• Load Capacity (F₂,Rk): 4.8 kN (per ETA 10/0189 with KNAPP stainless steel CS-screws)

• Material: AISI 304 (A2) stainless steel (optional A4 available)

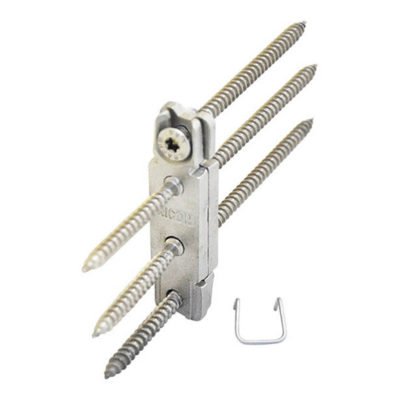

• Kit Includes:

  • 2 × RICON 16 × 66 stainless steel plates

  • 3 × self-tapping stainless steel screws A2 5×50 mm

  • 3 × self-tapping stainless steel screws A2 5×80 mm

  • 1 × stainless steel locking bracket (16 mm)

• Alternative Screw Options:

  • A2 5×25 mm (Part No. Z514)

  • A2 5×30 mm (Part No. Z515)

  • A2 5×50 mm (Part No. Z950)

  • A2 5×60 mm (Part No. Z951)
    (Load ratings vary depending on screw length and configuration)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for hardwoods and impregnated timbers (e.g., oak, larch, Accoya)

• Mill a recess into the timber end according to the routing template.

• Mount one stainless steel plate using A2 self-tapping screws (5×50 mm and 5×80 mm, or alternate sizes).

• Attach the opposite plate to the mating surface (beam, wall, or post).

• Align and slide both plates together until fully interlocked.

• Secure with the included stainless steel locking bracket if required.

• Verify alignment and tighten all fasteners to specification.
