RICON 20 x 70 EA Stainless Steel Beam Hanger

The RICON 20 x 70 EA Stainless Steel Beam Hanger is a compact concealed connection system designed for smaller timber assemblies where corrosion resistance and clean aesthetics are essential. Manufactured from A2 stainless steel, it ensures reliable performance in outdoor or humid environments (Service Class 3), making it suitable for both structural and decorative applications.

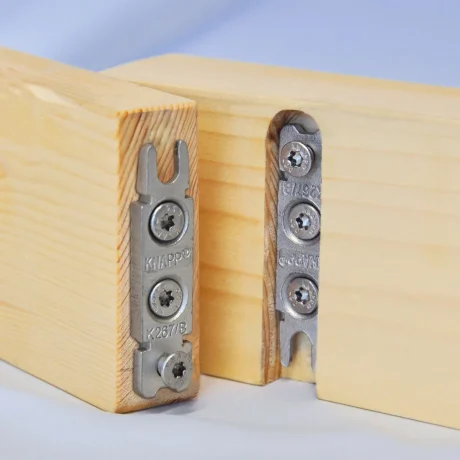

Each connector consists of two identical stainless steel plates that interlock in a dovetail-like fashion, creating a tight and self-aligning joint. The compact 70 mm plates are ideal for fine timber joinery or smaller framework connections. Installation is quick and accurate using self-tapping A2 stainless steel screws, and the connection can be installed either visible or fully concealed.

Key Features

• Concealed single connection for small-scale beam or frame joints

• Compact 70 mm stainless steel plates with 20 mm width

• Load capacity up to 4.8 kN (insertion direction, per ETA 10/0189 with KNAPP A2 screws)

• Made from A2 stainless steel for corrosion-resistant performance in outdoor and humid environments

• Compatible with oak, Douglas fir, larch, and impregnated timbers such as Accoya

• Self-tightening dovetail design ensures a precise, gap-free connection

• Adjustable to compensate for minor installation tolerances

• Reusable and demountable for prefabricated or modular assemblies

• Optional A4 marine-grade stainless steel version available upon request

• Outdoor furniture and small timber elements

• Pergolas, gazebos, patio roofs, and balcony details

• Decking assemblies and garden structures

• Playground and sports equipment

• Hybrid wood-to-steel or wood-to-concrete joints

• Architectural timber joinery and decorative framing

• Type: RICON 20 × 70 EA Stainless Steel Single Connection

• Load Capacity (F₂,Rk): 4.8 kN (per ETA 10/0189 with KNAPP stainless steel CS-screws)

• Material: AISI 304 (A2) stainless steel (optional A4 available)

• Kit Includes:

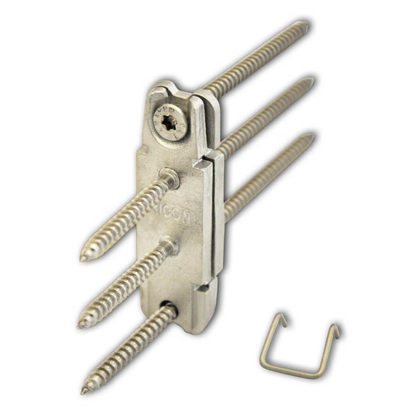

  • 2 × RICON 20 × 70 stainless steel plates

  • 3 × self-tapping stainless steel screws A2 5×50 mm

  • 3 × self-tapping stainless steel screws A2 5×80 mm

  • 1 × stainless steel locking bracket (20 mm)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for hardwoods and impregnated timbers (e.g., oak, larch, Accoya)

• Mill a recess into the beam end according to the supplied routing template.

• Mount one stainless steel plate using A2 self-tapping screws (5×50 mm and 5×80 mm).

• Attach the opposite plate to the post, wall, or structural support.

• Align and slide the plates together until fully interlocked.

• Secure with the included stainless steel locking bracket if required.

• Verify alignment and tighten all screws to specification.
