RICON 25 x 160 EA Stainless Steel Beam Hanger

The RICON 25 x 160 EA Stainless Steel Beam Hanger is a concealed single connection system designed for slim timber members and outdoor applications where corrosion resistance and aesthetics are essential. Manufactured from AISI 304 (A2) stainless steel, it provides durable, maintenance-free performance in Service Class 3 environments such as exterior structures exposed to moisture.

Each connector includes two identical A2 stainless steel plates that interlock in a dovetail-like fashion. The 160 mm plates offer strong load transfer while maintaining a slim 25 mm profile for use in narrow beam or post dimensions. Installation is fast, accurate, and repeatable using stainless steel self-tapping screws, with the option for concealed or visible mounting. The connection can be easily disassembled for inspection or reuse.

Key Features

• Concealed single connection for narrow timber members and small beam sections

• 160 mm stainless steel plates with a 25 mm width profile

• Load capacity up to 10.4 kN (insertion direction, per ETA 10/0189 with KNAPP A2 screws)

• Made from AISI 304 stainless steel for outdoor and humid environments (Service Class 3)

• Ideal for oak, Douglas fir, larch, Accoya, and other treated or durable timbers

• Self-tightening dovetail geometry ensures alignment and prevents joint gaps

• Adjustable to compensate for construction tolerances

• Reusable and demountable for modular or prefabricated timber assemblies

• Optional A4 marine-grade stainless steel version available upon request

• Pergolas, gazebos, and patio roofs

• Outdoor furniture and small timber structures

• Balconies, decks, and railings

• Playgrounds, sports structures, and garden architecture

• Hybrid wood-to-steel or wood-to-concrete connections

• Architectural joinery in exposed or humid environments

• Type: RICON 25 × 160 EA Stainless Steel Single Connection

• Load Capacity (F₂,Rk): 10.4 kN (per ETA 10/0189 with KNAPP stainless steel CS-screws)

• Material: AISI 304 (A2) stainless steel (optional A4 available)

• Kit Includes:

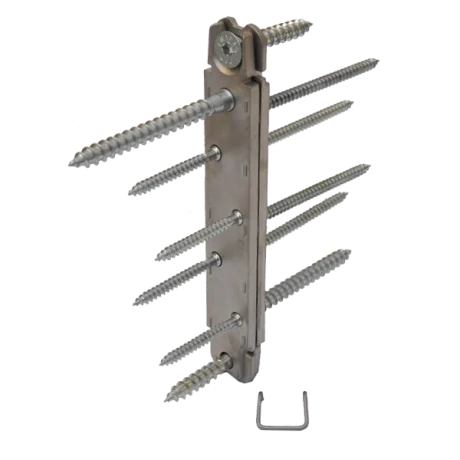

  • 2 × RICON 25 × 160 stainless steel plates

  • 4 × self-tapping stainless steel screws A2 5×50 mm

  • 4 × self-tapping stainless steel screws A2 5×80 mm

  • 2 × self-tapping stainless steel screws A2 8×50 mm

  • 2 × self-tapping stainless steel screws A2 8×80 mm

  • 1 × stainless steel locking bracket (25 mm)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Approved for hardwoods and impregnated timbers (oak, larch, Accoya)

• Mill a recess into the beam end according to the routing template.

• Mount one stainless steel plate to the beam using A2 screws (5×50 mm, 5×80 mm, 8×50 mm, 8×80 mm).

• Attach the opposite plate to the post, wall, or structural member.

• Align and slide both plates together until fully interlocked.

• Secure with the included 25 mm stainless locking bracket if required.

• Verify alignment and tighten all screws to specification.
