RICON 30 x 100 EA Stainless Steel Beam Hanger

The RICON 30 x 100 EA Stainless Steel Beam Hanger is a concealed single connection system designed for small to medium timber members in structural and architectural applications. Made from A2 stainless steel, it provides strong, corrosion-resistant performance for both indoor and outdoor use, making it ideal for Service Class 3 environments where wood is exposed to moisture.

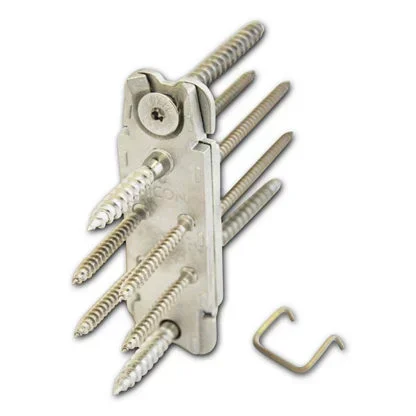

The system consists of two identical stainless steel plates that interlock in a dovetail-like configuration, creating a secure, fully concealed connection. Installation is fast and precise using self-tapping stainless steel screws, and the connection can be adjusted or disassembled for modular construction or maintenance.

Key Features

• Concealed single connection for beam-to-post or beam-to-wall joints

• 100 mm stainless steel plates with a 30 mm profile width

• Load capacity up to 10.4 kN (insertion direction, per ETA 10/0189 with KNAPP A2 screws)

• Manufactured from A2 stainless steel for outdoor or humid environments (Service Class 3)

• Compatible with durable and treated woods such as oak, Douglas fir, larch, and Accoya

• Self-aligning dovetail mechanism ensures precise, gap-free assembly

• Adjustable to compensate for minor construction tolerances

• Reusable and demountable for prefabricated or modular applications

• Optional A4 marine-grade stainless steel version available upon request

• Pergolas, carports, and patio roofs

• Outdoor furniture and garden structures

• Balconies, decks, and façades

• Playgrounds and sports installations

• Hybrid wood-to-steel or wood-to-concrete assemblies

• Architectural timber joinery in exposed or humid environments

• Type: RICON 30 × 100 EA Stainless Steel Single Connection

• Load Capacity (F₂,Rk): 10.4 kN (per ETA 10/0189 with KNAPP stainless steel CS-screws)

• Material: AISI 304 (A2) stainless steel (optional A4 available)

• Kit Includes:

  • 2 × RICON 30 × 100 stainless steel plates

  • 4 × self-tapping stainless steel screws A2 5×50 mm

  • 4 × self-tapping stainless steel screws A2 5×80 mm

  • 2 × self-tapping stainless steel screws A2 8×50 mm

  • 2 × self-tapping stainless steel screws A2 8×80 mm

  • 1 × stainless steel locking bracket (30 mm)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Approved for hardwoods and impregnated timbers (e.g., oak, larch, Accoya)

• Mill a recess into the beam end according to the routing template.

• Mount one stainless steel plate using A2 self-tapping screws (5×50 mm, 5×80 mm, 8×50 mm, and 8×80 mm).

• Attach the opposite plate to the post, wall, or supporting member.

• Align and slide both plates together until fully interlocked.

• Secure with the included stainless steel locking bracket if required.

• Verify alignment and tighten all fasteners to specification.
