RICON 30 x 140 EA Stainless Steel Beam Hanger

The RICON 30 x 140 EA Stainless Steel Beam Hanger is a concealed single connection system designed for joining one beam to a post, wall, or structural member in exposed or moisture-prone environments. Made from A2 stainless steel, it provides long-term corrosion resistance while maintaining the clean, hidden aesthetic that defines the RICON system.

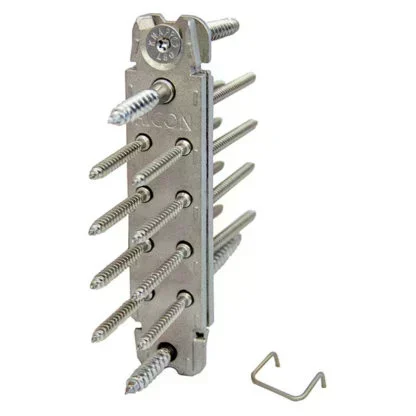

Each connector consists of two identical A2 stainless steel plates that interlock in a dovetail-like configuration. The 140 mm plates balance high load capacity with a slim 30 mm profile, making this model suitable for mid-size structural members. Installation is fast and repeatable using self-tapping stainless steel screws, and the connection can be disassembled for maintenance or reuse.

Key Features

• Concealed single connection for beam-to-post or beam-to-wall assemblies

• 140 mm stainless steel plates with a 30 mm slim profile

• Load capacity up to 16.1 kN (insertion direction, per ETA 10/0189 with KNAPP A2 screws)

• Manufactured from A2 stainless steel for Service Class 3 environments

• Suitable for oak, Douglas fir, larch, and impregnated woods such as Accoya

• Self-tightening dovetail design ensures alignment and eliminates joint gaps

• Adjustable to compensate for construction tolerances

• Reusable and demountable for modular or prefabricated systems

• Optional A4 marine-grade stainless steel version available upon request

• Timber-frame and post-and-beam construction

• Outdoor furniture, pergolas, gazebos, and patio roofs

• Carports, balconies, and decking structures

• Playgrounds, sports structures, and garden frameworks

• Hybrid wood-to-steel or wood-to-concrete joints

• Architectural joinery in humid or exposed environments

• Type: RICON 30 × 140 EA Stainless Steel Single Connection

• Load Capacity (F₂,Rk): 16.1 kN (per ETA 10/0189 with KNAPP stainless steel CS-screws)

• Material: A2 stainless steel (optional A4 marine-grade on request)

• Kit Includes:

  • 2 × RICON 30 × 140 stainless steel plates

  • 8 × self-tapping stainless steel screws A2 5×50 mm

  • 8 × self-tapping stainless steel screws A2 5×80 mm

  • 2 × self-tapping stainless steel screws A2 8×50 mm

  • 2 × self-tapping stainless steel screws A2 8×80 mm

  • 1 × stainless steel locking bracket (30 mm)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Approved for hardwoods and impregnated timbers (e.g., oak, larch, Accoya)

• Mill a recess into the beam end according to the supplied routing template.

• Mount one stainless steel plate to the beam using A2 self-tapping screws (5×50 mm, 5×80 mm, 8×50 mm, and 8×80 mm).

• Attach the opposite plate to the post, wall, or supporting member.

• Align and slide both plates together until fully interlocked.

• Secure with the included stainless steel locking bracket if required.

• Verify alignment and tighten all screws to specification.
