RICON 30 x 80 EA Stainless Steel Beam Hanger

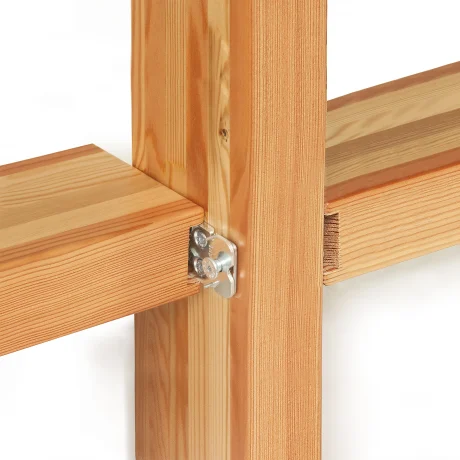

The RICON 30 × 80 EA Stainless Steel Beam Hanger is a concealed single-connection system designed for joining beams to posts or primary members in timber construction. Manufactured from A2 stainless steel, this connector is suitable for both indoor and outdoor applications where corrosion resistance, durability, and a clean architectural finish are required.

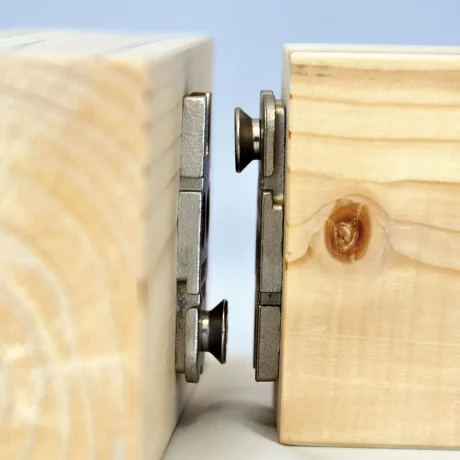

The system consists of two identical stainless steel connector plates that interlock in a dovetail-style connection. One plate is installed into a milled recess, while the mating plate is surface-mounted. During assembly, the plates slide together and lock securely, creating a strong, concealed joint. An optional stainless steel locking bar can be installed to secure the connection while still allowing future disassembly if required.

Key Features

• Concealed stainless steel connector for single beam connections

• A2 stainless steel for indoor and outdoor use

• Slim profile suitable for timber widths from 30 mm

• Interlocking dovetail design for fast and precise assembly

• Adjustable joint allows compensation for installation tolerances

• Can be installed concealed or partially visible

• Disassembly and reassembly possible for maintenance or modular construction

• Tested, patented, and ETA approved

• Post-and-beam construction

• Main and secondary beam connections

• Indoor and outdoor furniture

• Pergolas, carports, patio roofs, and balconies

• Garden structures and architectural woodwork

• Playgrounds and sports equipment

• Suitable for hardwoods and special woods such as oak, Douglas fir, larch, and Accoya

• Connector type: RICON EA single connection

• Size: 30 × 80 mm

• Material: A2 stainless steel

• Characteristic load capacity F2,Rk: 7.5 kN*

• Approved service classes: 1, 2, and 3 (indoor, roofed outdoor, and outdoor applications)

• ETA approval: ETA-10/0189

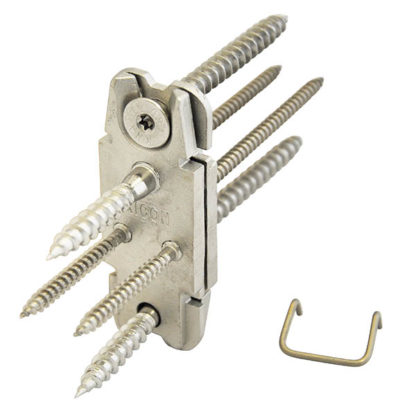

Kit Includes

• 2 × RICON 30 × 80 stainless steel connector plates

• 2 × stainless steel self-tapping screws 5 × 50 mm

• 2 × stainless steel self-tapping screws 5 × 80 mm

• 2 × stainless steel self-tapping screws 8 × 50 mm

• 2 × stainless steel self-tapping screws 8 × 80 mm

• 1 × stainless steel locking bar, 30 mm

Mill a recessed pocket into the beam according to the drilling template. Install the connector plates using the supplied stainless steel self-tapping screws. Slide the mating components together until fully engaged. Install the stainless steel locking bar to secure the connection. Final alignment can be adjusted before tightening all fasteners.

Refer to the instruction manual for detailed drilling dimensions, screw placement, and timber-specific requirements.
