RICON 40 x 160 EA Stainless Steel Beam Hanger

The RICON 40 x 160 EA Stainless Steel Beam Hanger is a concealed single connection system designed for timber-to-timber, timber-to-steel, or timber-to-concrete joints in exterior or moisture-exposed environments. Manufactured from A2 stainless steel, it provides lasting corrosion resistance for outdoor applications while maintaining the clean, hidden appearance that defines the RICON series.

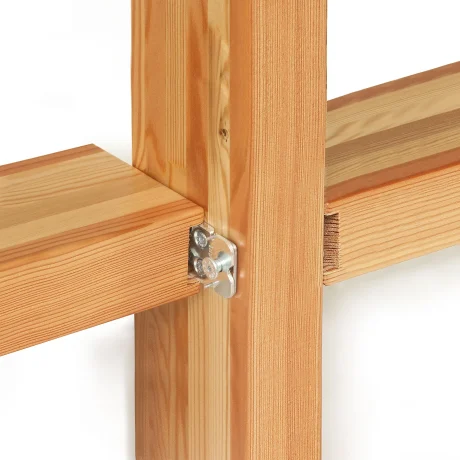

Each connector consists of two identical A2 stainless steel plates that interlock in a dovetail-like fashion. One plate is recessed into the beam end, and the other mounts to the adjoining member. As the plates engage, they self-align and form a tight, gap-free joint. Installation is fast, accurate, and repeatable using the included self-tapping stainless steel screws. The connection can be installed fully concealed or visible and disassembled for reuse if needed.

Key Features

• Concealed stainless steel single connection for beam-to-post or beam-to-wall joints

• 160 mm connector plates for large timber members and structural outdoor use

• Load capacity up to 18.9 kN (insertion direction, per ETA 10/0189 with original KNAPP A2 screws)

• Made from A2 stainless steel for high corrosion resistance (Service Class 3)

• Ideal for exterior timber structures exposed to moisture and salt air

• Self-tightening dovetail design ensures alignment and prevents gaps over time

• Adjustable to compensate for dimensional tolerances

• Reusable and demountable for prefabricated or modular assemblies

• Suitable for special timber species such as oak, Douglas fir, larch, and Accoya

• Compatible with aluminum, steel, and concrete base profiles

• Outdoor timber and hybrid construction

• Carports, pergolas, gazebos, and patio roofs

• Garden furniture, balconies, and decking assemblies

• Playground and sports structures

• Timber-to-steel or timber-to-concrete hybrid joints

• Architectural and structural joinery requiring concealed stainless connectors

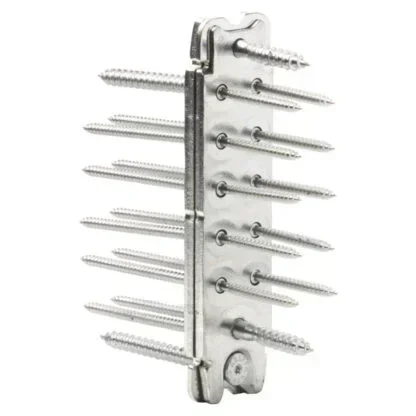

• Type: RICON 40 × 160 EA Stainless Steel Single Connection

• Load Capacity (F₂,Rk): 18.9 kN (per ETA 10/0189 with KNAPP stainless steel CS-screws)

• Material: A2 stainless steel (optional A4 marine-grade stainless steel on request)

• Kit Includes:

  • 2 × RICON 40 × 160 stainless steel plates

  • 10 × self-tapping stainless steel screws A2 5×50 mm

  • 10 × self-tapping stainless steel screws A2 5×80 mm

  • 2 × self-tapping stainless steel screws A2 8×50 mm

  • 2 × self-tapping stainless steel screws A2 8×80 mm

  • 1 × RICON stainless steel locking bracket (40 mm)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for use with hardwoods and impregnated woods (oak, larch, Accoya)

• Mill a recess into the beam end using the provided template.

• Mount one stainless steel plate to the beam using A2 self-tapping screws (5×50 mm, 5×80 mm, 8×50 mm, and 8×80 mm).

• Attach the opposite plate to the post, wall, or structural support.

• Align and slide the plates together until fully interlocked.

• Secure with the stainless steel locking bracket if required.

• Verify alignment and tighten all fasteners to specification.
