RICON 40 x 40 EA Stainless Steel Beam Hanger

The RICON 40 x 40 EA Stainless Steel Beam Hanger is a compact concealed connector designed for smaller timber assemblies and outdoor applications where corrosion resistance is required. This version uses A2 stainless steel plates that interlock in a dovetail-like fashion, allowing small beams, rails, or posts to be joined cleanly and securely.

The connector installs using stainless steel self-tapping screws on both the end grain and face grain of the timber element. It can be used fully concealed or visible and is suitable for hardwoods, softwoods, and impregnated timber products such as Accoya.

Key Features

• Compact 40 mm stainless steel connector for small timber joints

• Fully concealed or visible installation

• Designed for hardwoods, softwoods, and impregnated timbers

• Suitable for outdoor applications such as patios, pergolas, balconies, and garden structures

• A2 stainless steel ensures corrosion-resistant performance in Service Class 3 environments

• Self-tightening dovetail action provides secure, gap-free engagement

• Allows adjustment to compensate for installation tolerances

• Can be installed and removed multiple times

• ETA certified for structural timber applications

• Small timber beams and secondary connections

• Outdoor furniture, pergolas, railing components, and garden structures

• Light framing elements in balconies and patio roofs

• Timber-to-timber, timber-to-steel, or timber-to-concrete joints

• Architectural or decorative timber assemblies requiring a clean finish

• Type: RICON 40 x 40 EA Stainless Steel

• Load Capacity (F₂,Rk): 4.0 kN (insertion direction; per ETA-10/0189 with KNAPP stainless steel screws)

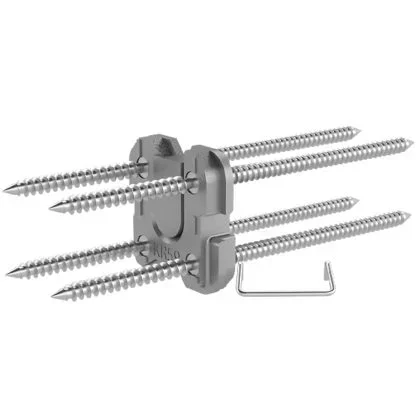

• Set Includes:

  • 2 × RICON 40 × 40 stainless steel A2 plates

  • 4 × SK stainless steel screws A2 5 × 50 mm

  • 4 × SK stainless steel screws A2 5 × 80 mm

  • 1 × Stainless steel locking bracket (40 mm)

• Material: A2 stainless steel

• Minimum Timber Width: 20 mm

• Installation Type: Concealed or surface-mounted

• ETA Compliance: Valid only when using original KNAPP stainless steel screws

• Prepare the Timber Element

  • Mill a recess for concealed installation if required.

• Install the First Plate

  • Attach with A2 5 × 50 mm and 5 × 80 mm screws according to screw pattern.

• Mount the Opposing Plate

  • Fasten to the mating member in mirrored orientation.

• Engage the Connection

  • Slide the two plates together until fully interlocked.

• Optional Locking Bracket

  • Insert the stainless steel locking bracket to secure the connection if needed.

• Verify Fit

  • Ensure plates are fully seated and the joint is tight.
