RICON 40 x 80 EA Stainless Steel Beam Hanger

The RICON 40 x 80 EA Stainless Steel Beam Hanger is a concealed single connection system designed for small to mid-sized timber assemblies where corrosion resistance, clean aesthetics, and reliable structural performance are essential. Made from A2 stainless steel, this connector provides long-term durability in Service Class 3 environments—ideal for outdoor or moisture-exposed applications.

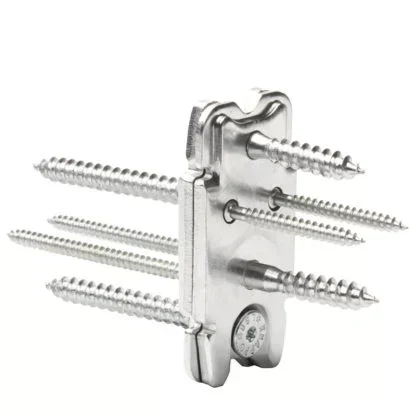

Each connector includes two identical stainless steel plates that interlock in a dovetail-like configuration. The 80 mm plates allow for fast, precise assembly with self-aligning engagement. Installation is simple and repeatable using A2 self-tapping screws, and the system can be disassembled and reused for modular construction.

Key Features

• Concealed single connection for beam-to-post or beam-to-wall assemblies

• 80 mm stainless steel plates with 40 mm width for compact timber joints

• Load capacity up to 7.5 kN (insertion direction, per ETA 10/0189 with KNAPP A2 screws)

• A2 stainless steel construction for outdoor, humid, or coastal environments (Service Class 3)

• Ideal for special timber species such as oak, Douglas fir, larch, and Accoya

• Self-tightening dovetail mechanism ensures tight, gap-free connection

• Adjustable to compensate for construction tolerances

• Reusable and demountable for prefabricated or modular timber systems

• Optional A4 marine-grade stainless steel version available upon request

• Pergolas, gazebos, and canopies

• Patio roofs, balconies, and decking structures

• Carports and garden architecture

• Outdoor and indoor furniture

• Playgrounds and sports installations

• Hybrid wood-to-steel or wood-to-concrete joints

• Type: RICON 40 × 80 EA Stainless Steel Single Connection

• Load Capacity (F₂,Rk): 7.5 kN (per ETA 10/0189 with KNAPP stainless steel CS-screws)

• Material: AISI 304 (A2) stainless steel (optional A4 available)

• Kit Includes:

  • 2 × RICON 40 × 80 stainless steel plates

  • 2 × self-tapping stainless steel screws A2 5×50 mm

  • 2 × self-tapping stainless steel screws A2 5×80 mm

  • 2 × self-tapping stainless steel screws A2 8×50 mm

  • 2 × self-tapping stainless steel screws A2 8×80 mm

  • 1 × stainless steel locking bracket (40 mm)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Approved for hardwoods and impregnated timbers (e.g., oak, larch, Accoya)

• Mill a recess into the beam end according to the routing template.

• Mount one stainless steel plate using A2 self-tapping screws (5×50 mm, 5×80 mm, 8×50 mm, and 8×80 mm).

• Attach the opposite plate to the post, wall, or supporting beam.

• Align and slide both plates together until fully interlocked.

• Secure with the stainless steel locking bracket if required.

• Verify alignment and tighten all fasteners to specification.
