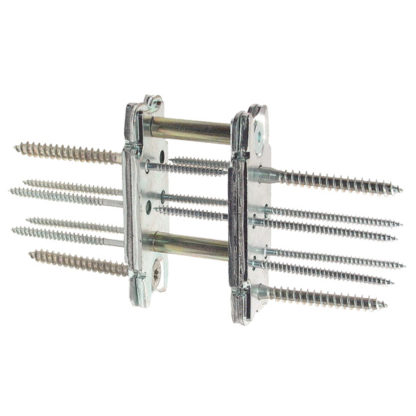

RICON DA 40 x 100 VM78 Beam Hanger

The RICON DA 40 x 100 VM78 Beam Hanger is a concealed double connection system for joining two beams to a single post. It uses through-post compound nuts to maintain alignment and prevent screw interference in cross-joint applications.

With compact 100 mm plates, this version is suited for shallow beam profiles or applications with tight spacing requirements. The VM78 configuration includes 78 mm compound nuts designed for 80 mm post sections, providing deep anchorage and structural stability. The system ensures a flush, hidden joint and allows quick installation or removal during prefabrication or maintenance.

Key Features

• Concealed double connection for beams meeting at one post

• 100 mm plate design for compact beam dimensions

• VM78 configuration with 78 mm compound nuts for 80 mm post thickness

• Load capacity up to 26 kN depending on timber type and configuration

• Through-post fastening provides precise alignment and load transfer

• Adjustable to correct minor tolerance deviations

• Removable and reusable for modular or prefabricated assemblies

• Optional corrosion protection for outdoor or high-humidity environments

• Timber-frame and post-and-beam structures

• Glulam, LVL, or solid timber beam joints

• Prefabricated or modular building systems

• Roof, canopy, or pergola assemblies

• Hybrid wood-to-steel or wood-to-concrete connections

• Concealed structural joinery in architectural applications

• Type: RICON DA 40 x 100 VM78 Double Connection

• Load Capacity: Up to 26 kN (based on timber density and setup)

• Material: Zinc-coated steel (optional stainless steel or special coatings)

• Kit Includes:

  • 4 × RICON DA 40 × 100 plates

  • 4 × SK-screws M8x25

  • 8 × SK-screws 5×80 mm

  • 4 × SK-screws 5×50 mm

  • 4 × SK-screws 8×80 mm

  • 2 × locking brackets

  • 2 × compound nuts M8 10×78 mm (for 80 mm post thickness)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for use with hardwood materials

• Mill the recess into the end grain of each beam according to the template.

• Mount the plates using SK-screws (5×80 mm, 5×50 mm, and 8×80 mm).

• Drill through the post and insert the compound nuts (M8 10×78 mm).

• Attach the opposite plates with M8x25 SK-screws.

• Align and slide both beams into position until the plates interlock.

• Secure the connection using the supplied locking brackets.

• Verify alignment and perform final tightening before finishing.
