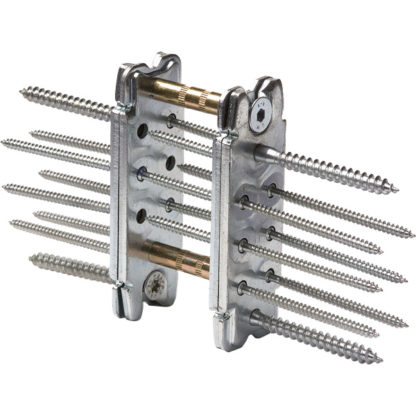

RICON DA 40 x 120 VM58 Beam Hanger

The RICON DA 40 x 120 VM58 Beam Hanger is a concealed double connection system designed for joining two beams to a single post. This version uses 58 mm compound nuts for 60 mm post sections, providing accurate alignment and secure through-post fastening in compact structural assemblies.

With 120 mm plates, the connection is optimized for shallower beam depths while maintaining reliable load transfer and complete concealment. The system is designed for fast, precise installation and can be disassembled or reused as needed in prefabricated or modular timber construction.

Key Features

• Concealed double connection for two beams meeting on one post

• VM58 configuration with 58 mm compound nuts for 60 mm post thickness

• Compact 120 mm plates for low-profile beam applications

• Load capacity up to 26 kN depending on timber density and setup

• Through-post connection eliminates screw interference and maintains alignment

• Adjustable for tolerance correction during installation

• Reusable and demountable for modular or prefabricated construction

• Optional corrosion protection for humid or exterior environments

• Timber-frame and post-and-beam assemblies

• Glulam, LVL, and solid wood beam connections

• Modular and prefabricated building systems

• Roofs, pergolas, and canopies

• Hybrid wood-to-steel or wood-to-concrete joints

• Structural timber connections requiring concealed joinery

• Type: RICON DA 40 x 120 VM58 Double Connection

• Load Capacity: Up to 26 kN (based on timber type and configuration)

• Material: Zinc-coated steel (optional stainless steel or special coatings)

• Kit Includes:

  • 4 × RICON DA 40 x 120 plates

  • 4 × SK-screws M8x25

  • 12 × SK-screws 5×80 mm

  • 6 × SK-screws 5×50 mm

  • 4 × SK-screws 8×80 mm

  • 2 × locking brackets

  • 2 × compound nuts M8 10×58 mm (for 60 mm post thickness)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for use with hardwood materials

• Mill a recess into the end grain of each beam following the template.

• Mount the connector plates using the supplied SK-screws (5×80 mm, 5×50 mm, and 8×80 mm).

• Drill through the post and insert the compound nuts (M8 10×58 mm).

• Attach the opposite plates using M8x25 SK-screws.

• Align and slide the beams together until the plates interlock.

• Install the locking brackets to secure the connection.

• Confirm alignment and tighten all fasteners as needed.
