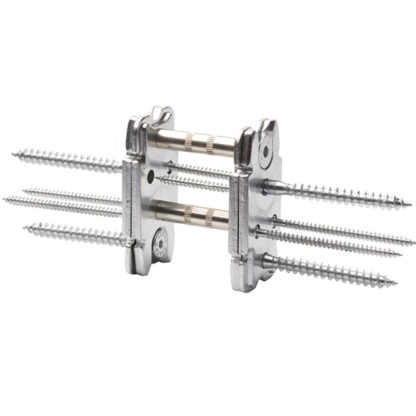

RICON DA 40 x 80 VM58 Beam Hanger

The RICON DA 40 x 80 VM58 Beam Hanger is a concealed double connection system for joining two beams to a single post. It provides a compact and hidden structural joint with high load-bearing capacity and precise alignment using through-post compound nuts.

This version features 80 mm connector plates and 58 mm compound nuts designed for 60 mm post sections. The configuration offers a strong and space-efficient solution for lighter framing layouts, ensuring a clean, flush finish suitable for both prefabricated and on-site construction.

Key Features

• Concealed double connection for beams meeting on one post

• 80 mm compact plate design for minimal beam depths

• VM58 configuration with 58 mm compound nuts for 60 mm post thickness

• Load capacity up to 26 kN depending on timber density and configuration

• Through-post fastening ensures consistent alignment and secure fit

• Adjustable for small tolerance corrections during installation

• Reusable and demountable for modular or prefabricated assemblies

• Optional corrosion protection for exterior or high-humidity applications

• Timber-frame and post-and-beam construction

• Glulam, LVL, and solid timber joints

• Modular and prefabricated timber systems

• Roofs, pergolas, and canopies

• Hybrid wood-to-steel or wood-to-concrete assemblies

• Concealed joinery in architectural and structural timber projects

• Type: RICON DA 40 x 80 VM58 Double Connection

• Load Capacity: Up to 26 kN (depending on timber type and configuration)

• Material: Zinc-coated steel (optional stainless steel or special coatings)

• Kit Includes:

  • 4 × RICON DA 40 x 80 plates

  • 4 × SK-screws M8x25

  • 4 × SK-screws 5×80 mm

  • 2 × SK-screws 5×50 mm

  • 4 × SK-screws 8×80 mm

  • 2 × locking brackets

  • 2 × compound nuts M8 10×58 mm (for 60 mm post thickness)

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for use with hardwood materials

• Mill a recess into the end grain of both beams according to the template.

• Mount the connector plates using SK-screws (5×80 mm, 5×50 mm, and 8×80 mm).

• Drill through the post and insert the compound nuts (M8 10×58 mm).

• Attach the opposite plates using M8x25 SK-screws.

• Align and slide both beams into position until the plates interlock.

• Install the locking brackets to secure the connection.

• Check alignment and tighten all fasteners as required.
