RICON EA 40 x 100 Beam Hanger Set

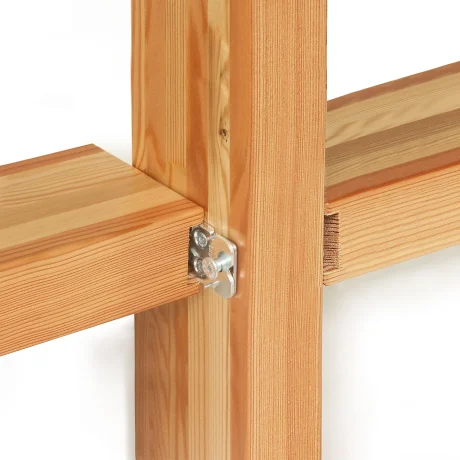

The RICON EA 40 x 100 Beam Hanger Set is a concealed single connection system designed for joining one beam to a post, wall, or support member. It provides a precise, fully hidden joint that allows high load transfer with a slim and unobtrusive design.

Each connector consists of two identical steel plates that interlock in a dovetail-like fashion. The 100 mm plates are ideal for compact timber members or applications with space limitations while still offering high structural performance. Installation is fast and repeatable using self-tapping screws, and the connection can be assembled or removed multiple times if required.

Key Features

• Concealed single connection for beam-to-post or beam-to-wall assemblies

• 100 mm connector plates for compact beam dimensions

• Load capacity up to 15.4 kN (insertion direction, per ETA 10/0189 with original KNAPP CS-screws)

• Self-tightening dovetail geometry ensures alignment and prevents gaps

• Adjustable to compensate for tolerances during installation

• Compatible with timber, steel, and concrete structures

• Reusable and demountable for modular or prefabricated applications

• Optional corrosion-resistant coatings for humid or exterior environments

• Compatible with aluminum base profiles from RP, Schüco, MBJ, Guttmann, RAICO, and Stabalux

• Concealed connection for glulam and LVL beams

• Timber-frame and post-and-beam construction

• Curtain wall and façade assemblies

• Pergolas, canopies, and sunrooms

• Hybrid wood-to-steel or wood-to-concrete connections

• Architectural timber applications requiring hidden joinery

• Type: RICON EA 40 × 100 Single Connection

• Load Capacity (F₂,Rk): 15.4 kN (per ETA 10/0189 with KNAPP CS-screws)

• Material: Zinc-coated steel (optional stainless steel or special coatings)

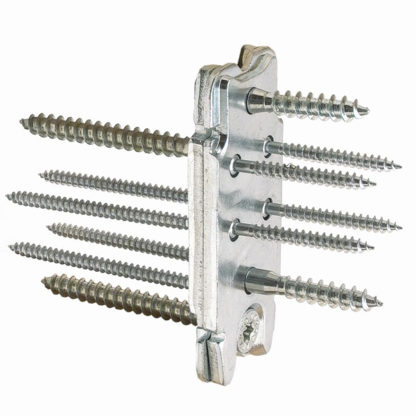

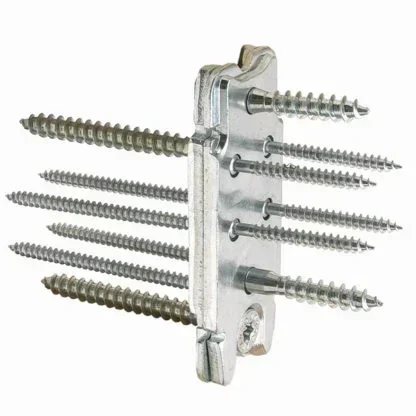

• Kit Includes:

  • 2 × RICON EA 40 × 100 plates

  • 4 × SK-screws 5×50 mm

  • 4 × SK-screws 5×80 mm

  • 2 × SK-screws 8×50 mm

  • 2 × SK-screws 8×80 mm

  • 1 × locking bracket

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for hardwoods (e.g., oak, larch, beech)

• Mill a recess into the beam end using the provided template.

• Mount one connector plate using SK-screws (5×50 mm, 5×80 mm, 8×50 mm, 8×80 mm).

• Attach the opposite plate to the post, wall, or support member.

• Align the beam and slide the plates together until fully interlocked.

• Secure the connection with the locking bracket if required.

• Verify alignment and tighten all fasteners to specification.
