RICON EA 40 x 140 Beam Hanger Set

The RICON EA 40 x 140 Beam Hanger Set is a pre-engineered concealed single connection system designed for simple and fast beam assembly. It provides a strong, flush-mounted joint suitable for structural timber and hybrid applications, including glulam, LVL, BauBuche, and hardwoods.

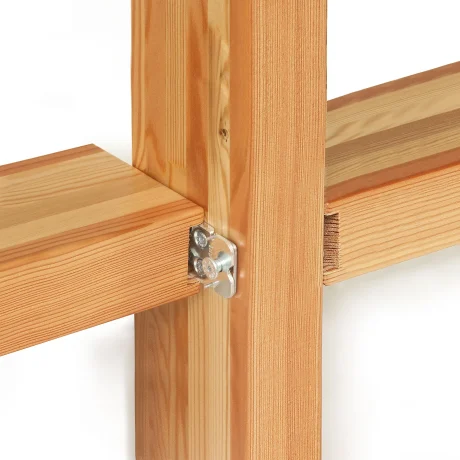

Each connector consists of two identical steel plates that interlock in a dovetail-like fashion. One plate is typically recessed into the end grain of the beam, while the other mounts flush to the adjoining member. When the plates engage, the joint self-aligns, delivering a secure, gap-free connection.

The system can be installed fully concealed or visible, making it ideal for both structural and architectural applications. KNAPP offers dedicated drilling and routing jigs to ensure accurate preparation. Installation uses self-tapping screws with integrated stops for precise depth control. An optional locking clip can be fitted to secure the connection, and removed later if disassembly is required.

Key Features

• Concealed single connection for beam-to-post or beam-to-wall assemblies

• 140 mm connector plates for mid-size beam dimensions

• Load capacity up to 24.1 kN when installed with original KNAPP CS-screws (per ETA-10/0189)

• Self-tightening dovetail mechanism ensures precise alignment and prevents joint gaps

• Supports off-center glass loads up to 700 kg with optional reinforcing plate

• Adjustable to compensate for installation tolerances

• Reusable and demountable for modular construction

• Fire resistance according to DIN 4102-2 (R30 ≥ 20 mm, R60 ≥ 40 mm)

• Mountable on timber as narrow as 50 mm up to 450 mm

• Optional corrosion-resistant coatings for indoor pool, agricultural, or coastal environments

• Compatible with aluminum base profiles from RP, Schüco, MBJ, Guttmann, RAICO, and Stabalux

• Concealed connector for main and secondary glulam beams

• Timber framework connections for curtain walls and facades

• Commercial and residential mass timber structures

• Carports, pergolas, conservatories, and sunrooms

• Hybrid wood-to-steel or wood-to-concrete assemblies

• Type: RICON EA 40 x 140 Single Connection

• Load Capacity (F₂,Rk): 24.1 kN (insertion direction, with original KNAPP CS-screws per ETA 10/0189)

• Material: Zinc-coated steel (optional stainless steel or specialty coatings)

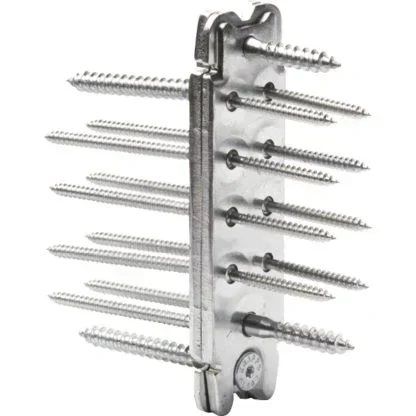

• Kit Includes:

  • 2 × RICON EA 40 x 140 plates

  • 8 × SK-screws 5×50 mm

  • 8 × SK-screws 5×80 mm

  • 2 × SK-screws 8×50 mm

  • 2 × SK-screws 8×80 mm

  • 1 × locking bracket

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for use with hardwoods (e.g., oak, larch, beech)

1. Mill the recess into the end grain of the beam using the supplied template.

2. Mount one connector plate using SK-screws (5×50 mm, 5×80 mm, 8×50 mm, and 8×80 mm).

3. Attach the opposite plate to the post, wall, or supporting member.

4. Align the beam and slide the plates together until interlocked.

5. Secure with the included locking clip if required.

6. Verify alignment and tighten all fasteners to specification.
