RICON EA 40 x 160 Beam Hanger Set

The RICON EA 40 x 160 Beam Hanger Set is a concealed single connection system engineered for joining one beam to a post, wall, or other support member. The precision interlocking plates form a strong, flush-mounted joint with reliable load transfer and minimal visual impact.

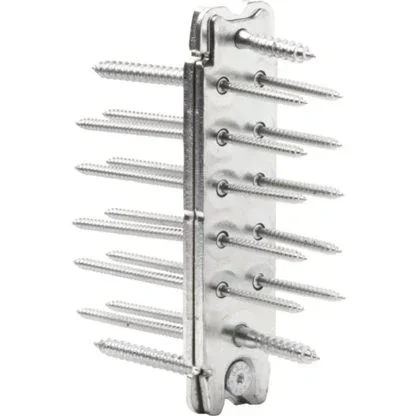

Each connector consists of two identical steel plates that hook together in a dovetail-like manner. One plate is typically recessed into the beam end, while the other mounts to the adjoining member. The system delivers a fast, repeatable installation and self-aligns as the plates engage. It can be installed fully concealed or visible, and disassembled when required for inspection or modular construction.

Key Features

• Concealed single connection for beam-to-post or beam-to-wall assemblies

• 160 mm connector plates for large beam profiles and high load capacity

• Load capacity up to 26.0 kN (insertion direction, per ETA 10/0189 with original KNAPP CS-screws)

• Self-tightening dovetail mechanism prevents joint gaps over time

• Adjustable to compensate for manufacturing and installation tolerances

• Suitable for timber, steel, and concrete connections

• Reusable and demountable for modular or prefabricated construction

• Optional corrosion-resistant coatings for outdoor or humid conditions

• Compatible with aluminum base profiles from RP, Schüco, MBJ, Guttmann, RAICO, and Stabalux

• Concealed connector for large main and secondary glulam beams

• Timber framework and curtain wall assemblies

• Commercial and residential mass timber structures

• Pergolas, canopies, and heavy timber joinery

• Hybrid wood-to-steel or wood-to-concrete connections

• Type: RICON EA 40 x 160 Single Connection

• Load Capacity (F₂,Rk): 26.0 kN (per ETA 10/0189 with KNAPP CS-screws)

• Material: Zinc-coated steel (optional stainless steel or special coatings)

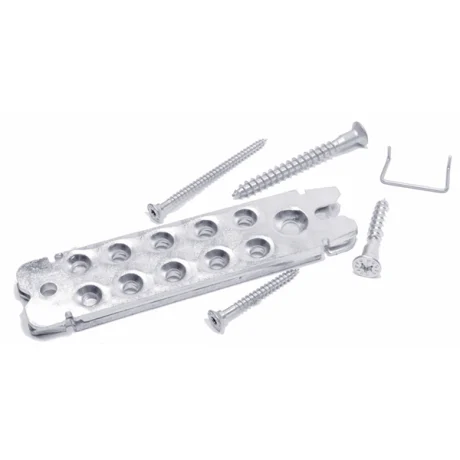

• Kit Includes:

  • 2 × RICON EA 40 x 160 plates

  • 10 × SK-screws 5×50 mm

  • 10 × SK-screws 5×80 mm

  • 2 × SK-screws 8×50 mm

  • 2 × SK-screws 8×80 mm

  • 1 × locking bracket

• Fire Resistance: R30 ≥ 20 mm, R60 ≥ 40 mm (four-sided concealed installation)

• ETA Extension: Certified for use with hardwood species such as oak, larch, and beech

• Mill a recess into the end grain of the beam using the supplied template.

• Mount one connector plate to the beam using SK-screws (5×50 mm, 5×80 mm, 8×50 mm, and 8×80 mm).

• Attach the opposite plate to the post, wall, or support member.

• Align the beam and slide the plates together until they interlock.

• Install the locking clip if additional security is required.

• Verify alignment and tighten all fasteners to specification.
