RICON S 60 x 200 – Beam Hanger w/ Screwed Collar Bolt

The RICON S 60 x 200 VK Fixed Beam Connector is a pre-engineered mass timber beam hanger designed for reliable timber-to-timber, timber-to-steel, and timber-to-concrete connections. This VK model uses a screwed collar bolt, offering stable load capacity and straightforward installation while accommodating moderate tolerance adjustment.

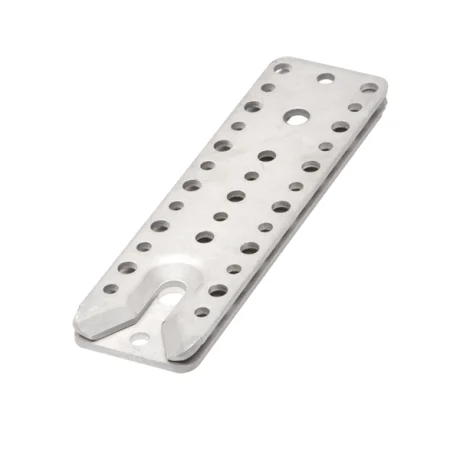

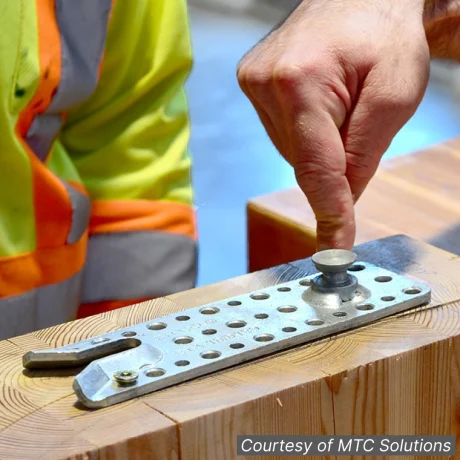

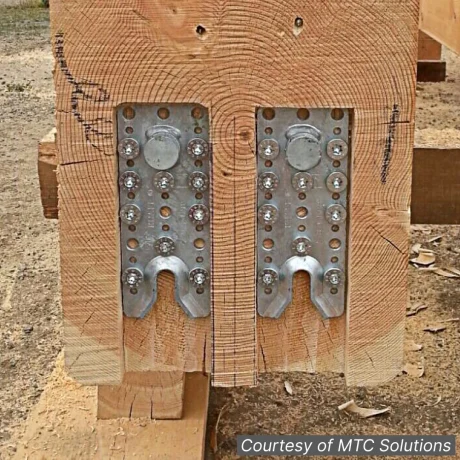

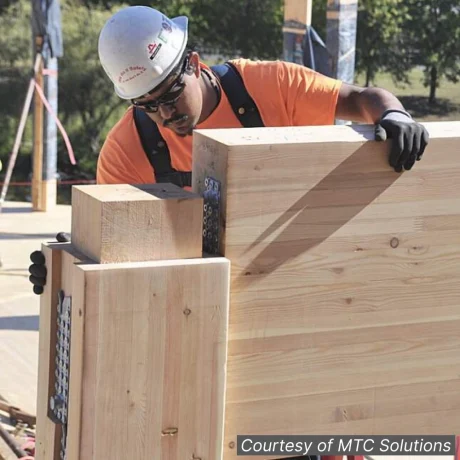

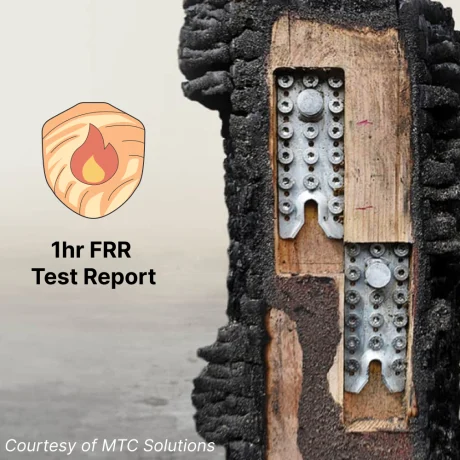

The connector consists of two identical galvanized steel plates that slide and hook together with only 35 mm of travel required to engage. Installation uses KNAPP SK structural screws driven perpendicular to the plate. The connector can be installed fully concealed using a routed recess or visibly on the beam surface. An optional locking clip is available to secure the connector against pull-out forces opposite the installation direction.

Key Features

• Pre-engineered connector for fast, repeatable installation

• Screwed collar bolt (VK) for reliable load transfer

• Short 35 mm engagement travel

• Fully load-bearing immediately after insertion

• Suitable for wood-to-wood, wood-to-steel, and wood-to-concrete

• Can be installed concealed or visible

• Compatible with CNC production or handheld routing

• High degree of prefabrication for efficient site assembly

• ETA-approved system (ETA-10/0189)

• Optional locking clip for additional mechanical securing

• Glulam and solid timber beam connections

• Mass timber construction

• Heavy timber and post-and-beam structures

• Timber frame buildings

• Log home building

• Purlin-to-girder and main-to-secondary beam joints

Included Components (1 Set)

• 2 pcs. RICON S 200/60 D12 connector plates

• 2 pcs. RICON S screwed collar bolts (VK style)

• 9 pcs. KNAPP SK screws 8×80 mm

• 9 pcs. KNAPP SK screws 8×160 mm

Optional Longer Screws for End-Grain Installations

• KNAPP SK screws 8×240 mm

  • Capacity up to 41.4 kN*

Load Capacity

• 34.9 kN characteristic load capacity F2,Rk in insertion direction*

• Valid only when using original KNAPP SK screws per ETA-10/0189 on C24 glulam
  (Reference: RICON S 200/60 VK installation drawings, pages 1–4)

Material and Installation Requirements

• End-grain attachment: SK screws 8 × 160 mm (or 8 × 240 mm where permitted)

• Side-grain attachment: SK screws 8 × 80 mm

• Minimum timber width: 100 mm

• Three 5 mm positioning holes (depth 50 mm) required in both beams (per manual)

• Connector becomes load-bearing once engaged

• Concealed installation requires routing according to the milling patterns shown in pages 1–3 of the instruction manual

Shear Reinforcement Note

Pages 2–4 of the instruction manual specify that if the secondary beam height is below recommended values, shear reinforcement using fully threaded screws may be required. Verification must be performed by a structural engineer (EN 1995-1-1, NAD).

Installation

1. Cut the recess using CNC or the KNAPP MULTI F 40 routing jig.

2. Drill three ø 5 mm × 50 mm positioning holes in both main and secondary beams.

3. Install the connector plates using the specified KNAPP SK screws.

4. Fasten the screwed collar bolt into the main beam.

5. Slide the beams together until they fully lock into place.

Important:
For secondary beams installed between two fixed members, the recess must be milled through on the underside to allow engagement (per page 4 of the manual).
