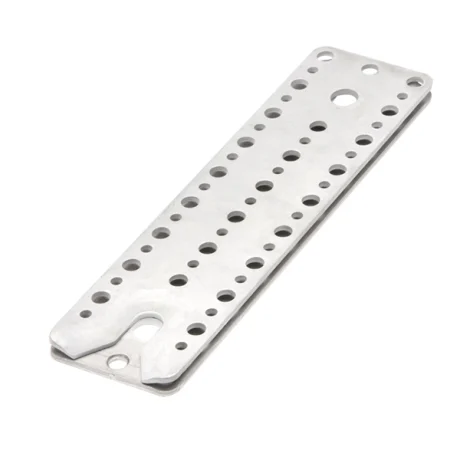

RICON S 80 x 290 – Beam Hanger w/ Screwed Collar Bolt

The RICON S 80 x 290 VK is a pre engineered galvanized steel beam connector designed for high capacity main and secondary beam joints in mass timber and heavy timber construction. It consists of two identical connector plates that engage in a dovetail like motion with only 35 mm of travel required. The VK version uses a screwed collar bolt, providing dependable mechanical engagement and a cost efficient alternative to the welded VS type.

The connector installs with self tapping CS screws driven perpendicular to the plate and can be mounted either fully concealed in a routed recess or visibly on the beam surface. Suitable for timber to timber, timber to steel, and timber to concrete applications, the RICON S VK series is widely used in glulam, CLT, post and beam, and hybrid timber structures.

Key Features

• Screwed collar bolt (VK) for stable mechanical engagement

• Short 35 mm slide in distance for fast installation

• Self tightening connection behavior

• Concealed or visible installation

• Suitable for timber, steel, and concrete supports

• High prefabrication efficiency

• Immediate load transfer once engaged

• ETA compliant when used with original KNAPP CS screws

• Beam hanger for glulam and solid timber

• Mass timber post and beam connections

• Purlin to girder assemblies

• Timber frame construction

• CLT to beam interfaces

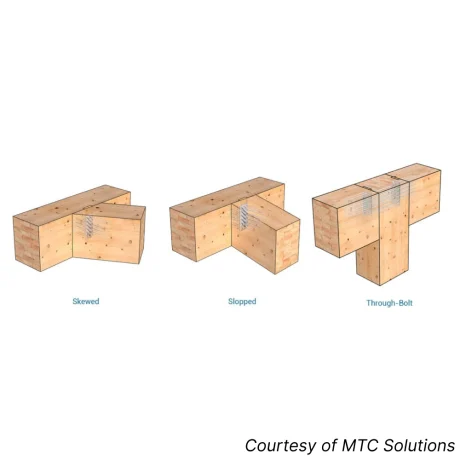

• Hybrid timber to steel or timber to concrete connections

Included in the set

• 2 pcs. RICON S 290/80 D16

• 2 pcs. RICON S screwed collar bolts

• 9 pcs. RICON S CS screws 10 x 100 mm

• 9 pcs. RICON S CS screws 10 x 200 mm

Load capacity

• Characteristic load capacity F2,Rk: 48.8 kN in insertion direction*

• *Valid only with original KNAPP CS screws according to ETA 10/0189

Optional longer screws for end grain

• RICON CS screws 10 x 300 mm

• Capacity increases up to 59.7 kN

Material

• Galvanized steel connector plates

• Structural CS screws driven perpendicular to the plate

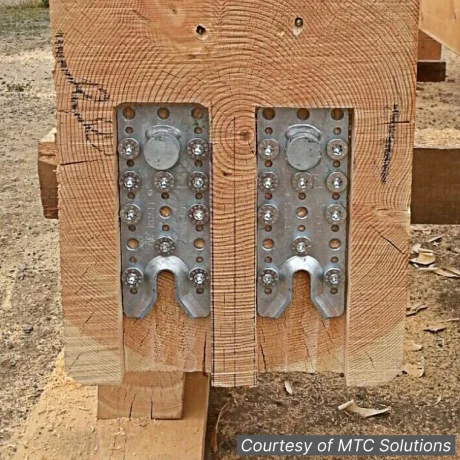

• Rout the housing using CNC or a compatible routing jig for concealed installation, or mount the connector on the surface if visible installation is preferred.

• Drill positioning holes according to the drilling template.

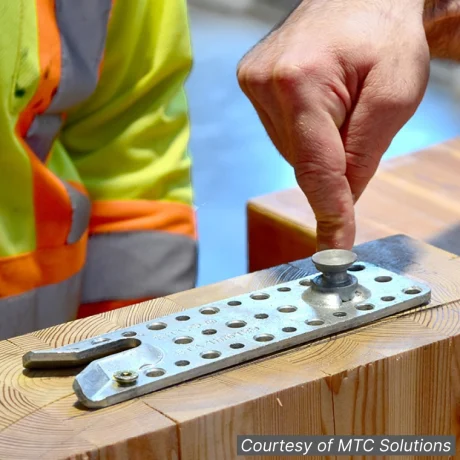

• Install the screwed collar bolt in the main member.

• Fasten connector plates with the specified 10 x 100 mm and 10 x 200 mm screws.

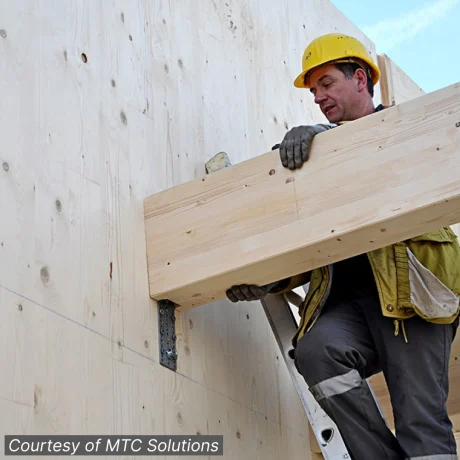

• Slide the secondary beam into place until fully engaged. The connection is load bearing immediately.
