RICON S 80 x 290 – Beam Hanger w/ Welded Collar Bolt

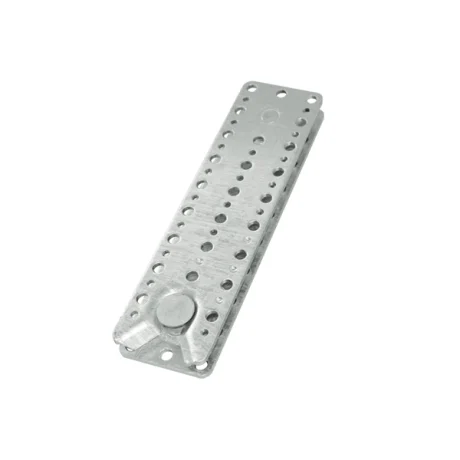

The RICON S 80 x 290 VS is a high-capacity mass timber beam hanger engineered for long-span and heavy structural connections. It consists of two identical galvanized steel plates that interlock through a dovetail-style engagement, requiring only 35 mm of travel to fully seat. The welded collar bolt (VS version) provides the highest load capacity available in the RICON S product family.

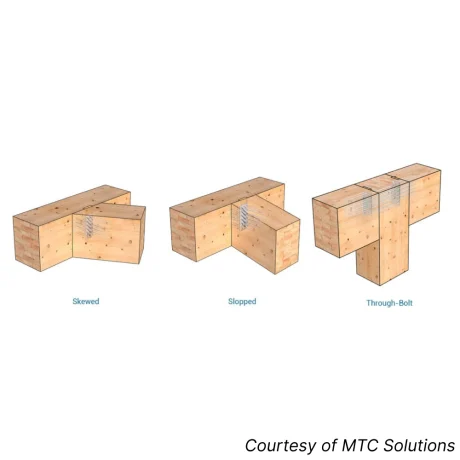

Designed for post-to-beam and beam-to-beam connections in mass timber construction, the RICON S 80 x 290 VS installs with structural screws driven perpendicular to the plate, without the need for pre-drilling. It is approved under ICC ESR-4300 for North American mass timber applications and is suitable for hardwoods, softwoods, steel interfaces, and hybrid timber-to-concrete support conditions.

This connector supports concealed installation for fire-rated assemblies and works effectively in prefabrication workflows for glulam, CLT, and engineered heavy timber systems.

Key Features

• High-capacity welded collar bolt construction

• ICC ESR-4300 approval for mass timber structures

• Short 35 mm hooking distance for rapid assembly

• Fully concealed or visible installation

• Structural screws installed perpendicular to the plate

• Self-tightening performance minimizes long-term joint movement

• Suitable for hardwood, softwood, steel, and concrete interfaces

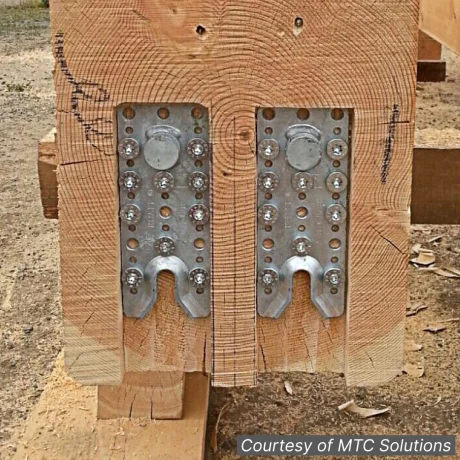

• Supports single or double-connector configurations

• Optional locking clip offers additional security against slide-out forces

• Fully compatible with workshop prefabrication

• Disassembly and reassembly possible

• Beam hangers for glulam, CLT, and engineered timber

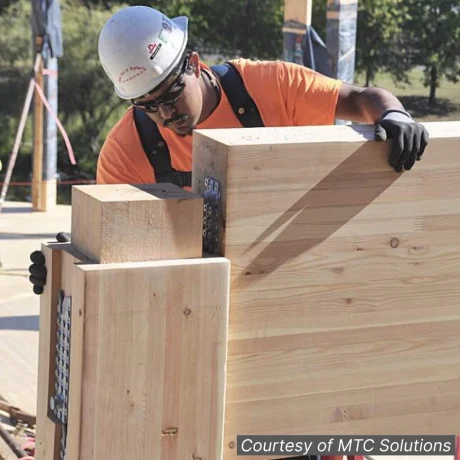

• Post-to-beam connections in mass timber and hybrid structures

• Heavy timber framing and long-span assemblies

• Timber-to-steel or timber-to-concrete connection details

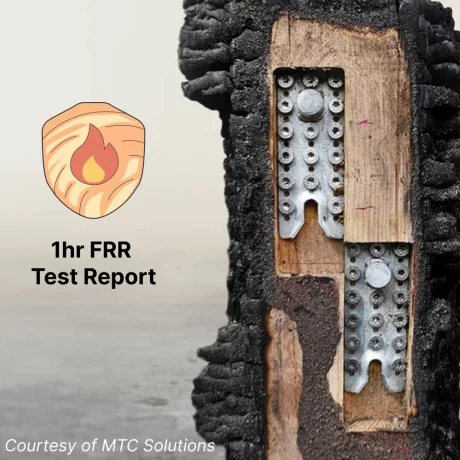

• Fire-rated concealed connections

• Structural frames, roofs, platforms, mezzanines, and purlin-to-girder systems

Connector:
RICON S 80 x 290 VS
Welded collar bolt version for maximum capacity

Material:
Galvanized steel

Load Capacity:

• Characteristic load capacity F2,Rk = 8.90 kips / 71 kN (per ICC ESR-4300)

• Valid only when using original SK / CS screws per ETA-10/0189

Required Screws:
(Exact screw count based on required load performance)

• CS screws 10 x 100 mm

• CS screws 10 x 200 mm

• Optional: CS screws 10 x 300 mm for increased end-grain capacity

Collar Bolt Variants (context):

• VS = Welded collar bolt (highest capacity)

• VK = Screwed collar bolt (moderate capacity)

• EK = Adjustable collar bolt

• GK = Spring-loaded collar bolt

• S80 adjustable with insert screw = up to 5 mm tolerance compensation

Connector Performance Notes:

• Screw quantity must be determined per project design values

• Load verification should be performed using the KNAPP dimensioning tool or engineering design tables

• Hardwood installations are permitted under current ETA extension

Optional Accessories:

• Locking clip

• MULTI F 40 routing jig for recess milling

• Drilling jigs and workshop templates

1. Cut recess with CNC or with the MULTI F 40 routing jig for concealed installation.

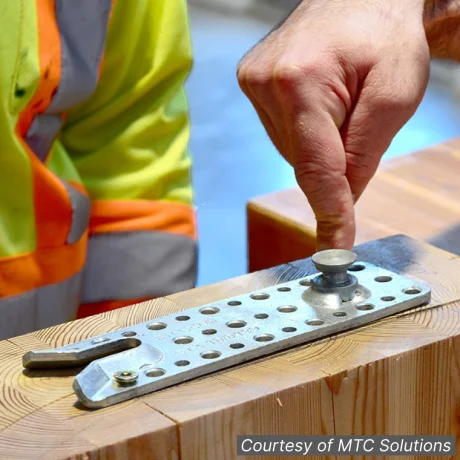

2. Position connector plates and install required SK/CS screws perpendicular to the plate.

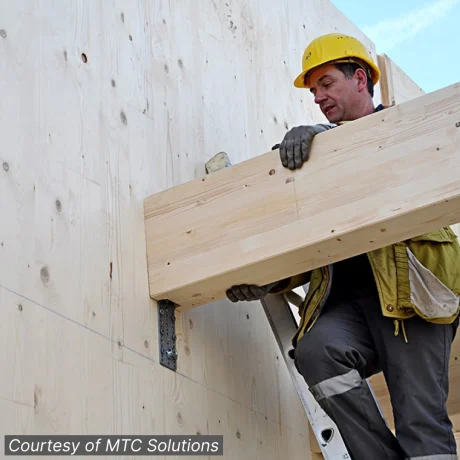

3. Align welded collar bolt with receiving plate and slide connector together using the 35 mm travel distance.

4. Install optional locking clip to secure against pull-out direction.

5. Connection is immediately load-bearing once fully engaged.

Important: Follow ICC ESR-4300 installation requirements for North American mass timber projects.
