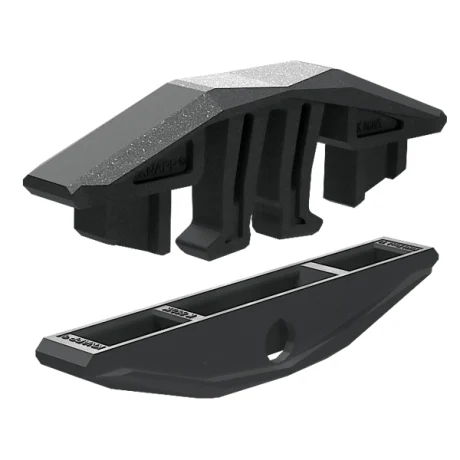

FIYU FAST 10 – Biscuit Connector for P-System Compatible Joinery

KNAPP pioneered biscuit connectors over 40 years ago with the CHAMP, and the FIYU FAST 10 builds on that legacy with advanced engineering and modern compatibility. Designed for ease, speed, and reversibility, it provides precise, secure connections at angles from 0 to 135 degrees, making it a reliable choice for both professionals and DIY enthusiasts.

Compatibility Notice

The FIYU FAST 10 Biscuit Connector is designed for use with precision groove joinery systems, including those created by the Lamello Zeta P2 biscuit joiner or compatible CNC machines. Standard biscuit joiners will not produce the required groove shape.

Disclaimer: FIYU FAST 10 is an independent product and is not affiliated with or endorsed by Lamello AG. References to P-System or related products are for compatibility and informational purposes only.

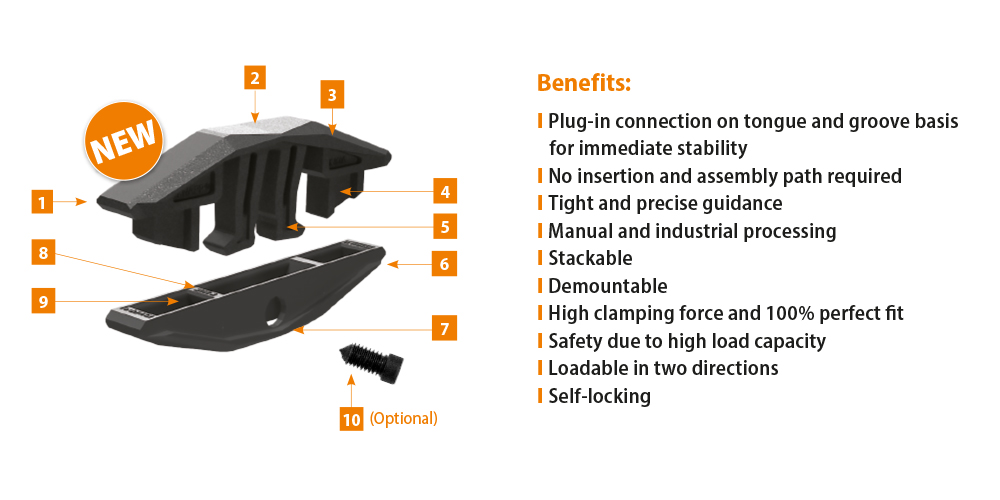

Features and Benefits

• Built on KNAPP’s legacy of biscuit connector innovation

• Cost-effective alternative to premium P-System connectors

• Quick and effortless assembly – components slide together in seconds

• Concealed connection for a clean, seamless appearance

• Self-tightening mechanism eliminates the need for clamps and prevents gaps

• Reversible and reusable – easily disassembled and reassembled

• Supports connections at angles from 0° to 135°

• Knock-down furniture

• Case goods

• Architectural millwork

• Shopfitting projects

• Furniture manufacturing

• Profile strips, covers, and frames

• Connector Type: Biscuit connector for P-System compatible joinery

• Material Compatibility: Softwoods and uncoated plastic materials

• Assembly Angles: 0° to 135°

• Mounting: Snap-in connection using precision grooves cut with Lamello Zeta P2 or CNC (not compatible with standard biscuit joiners)

• Installation Notes:

  • Ensure proper depth settings on P-System-compatible joinery tools

  • Insert connectors flush with edges and push components securely into place

• Advantages: Concealed, self-tightening, demountable, reversible connector

• Applications: Furniture, case goods, shopfitting, architectural millwork, and KD/RTA assembly

Installation Steps

1. Cut the Groove

   • Use a Lamello Zeta P2 or compatible CNC (standard biscuit joiners will not work).

   • Set depth to 10 mm and cut a P-System groove.

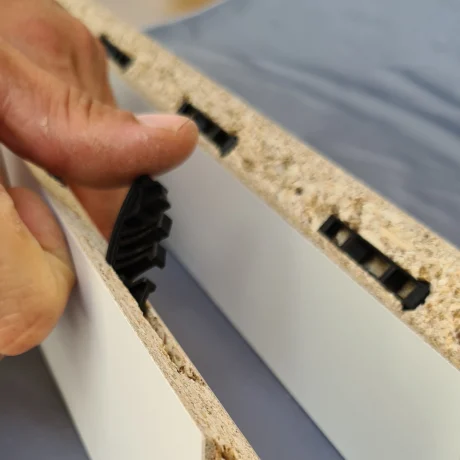

2. Insert the Connector

   • Dry fit first to check alignment.

   • Optional: Apply KNAPP Adhesive PU+ inside the groove.

   • Insert the FIYU FAST 10 so it sits flush with the edge.

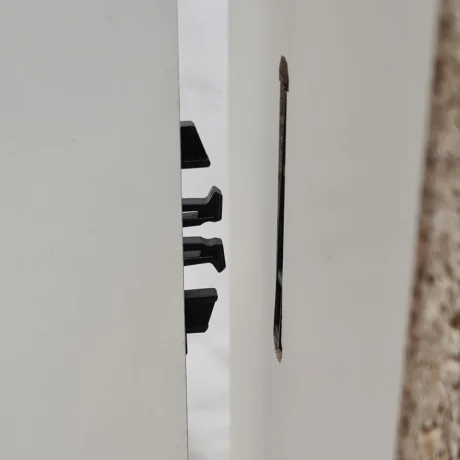

3. Assemble

   • Align workpieces and slide them together until the connector locks.

   • Apply pressure; use clamps if adhesive is used.

Tips

• Always dry fit before final assembly.

• Ensure material thickness is at least 16 mm.
