METAL Biscuit Connector Set

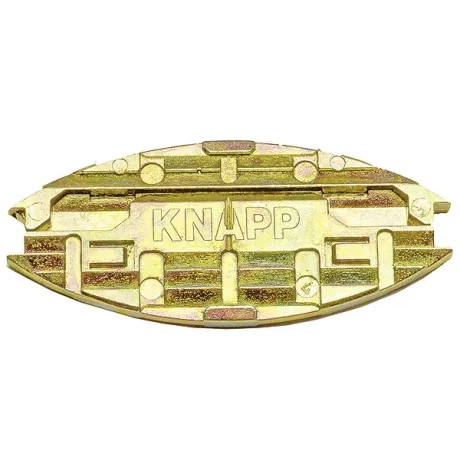

The METAL biscuit connector is a #20 self-tightening, non-visible slide-in connector made of zinc die-cast alloy. With integrated locking tabs, it’s ideal for load-bearing joints in panels, boards, and furniture.

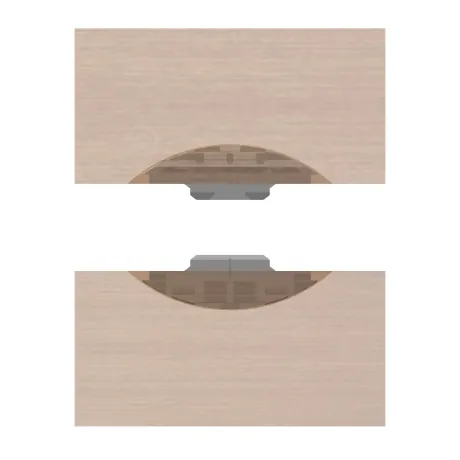

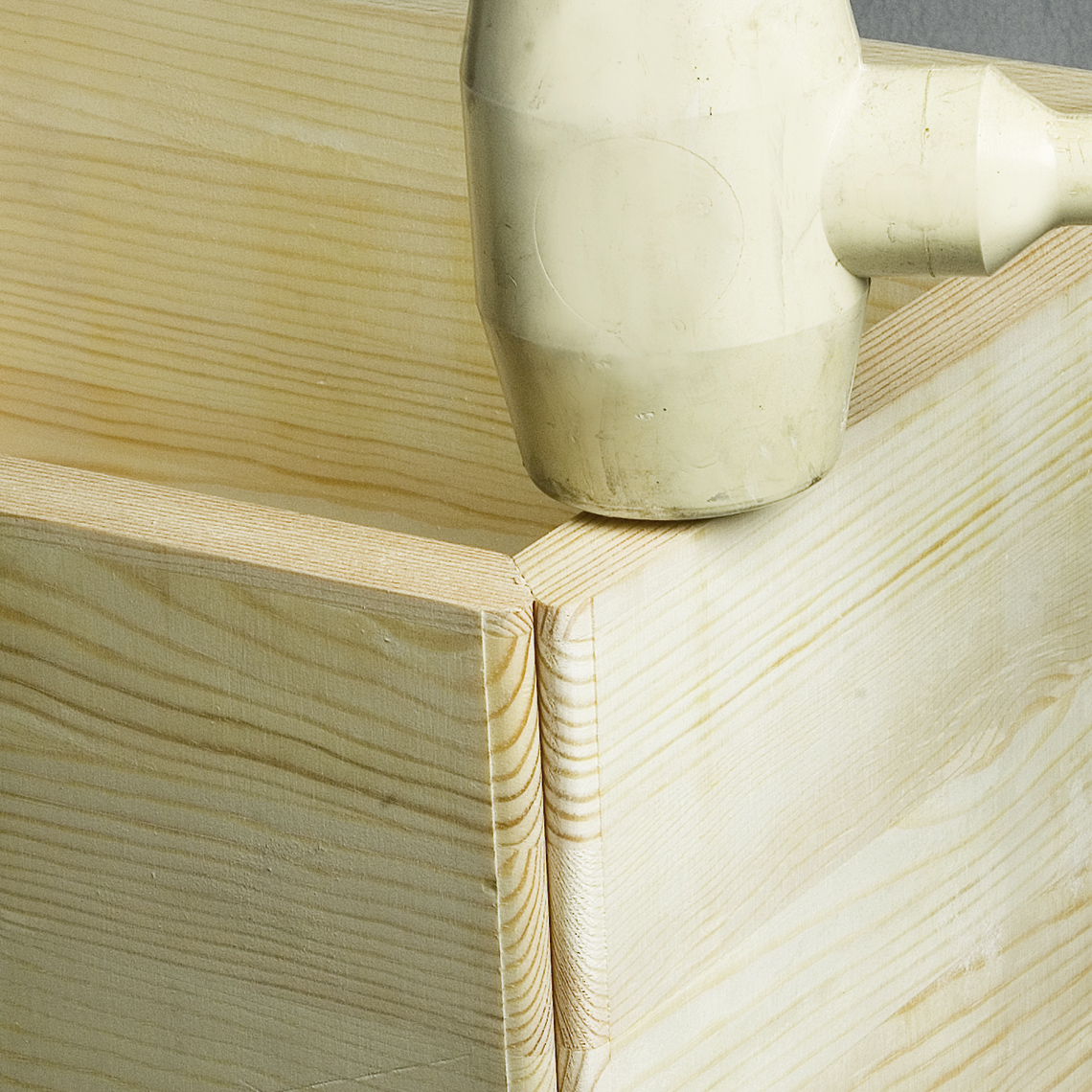

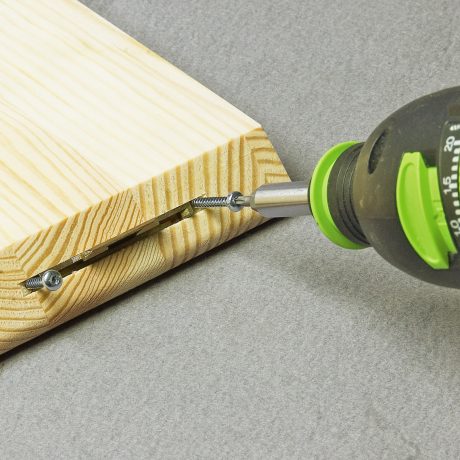

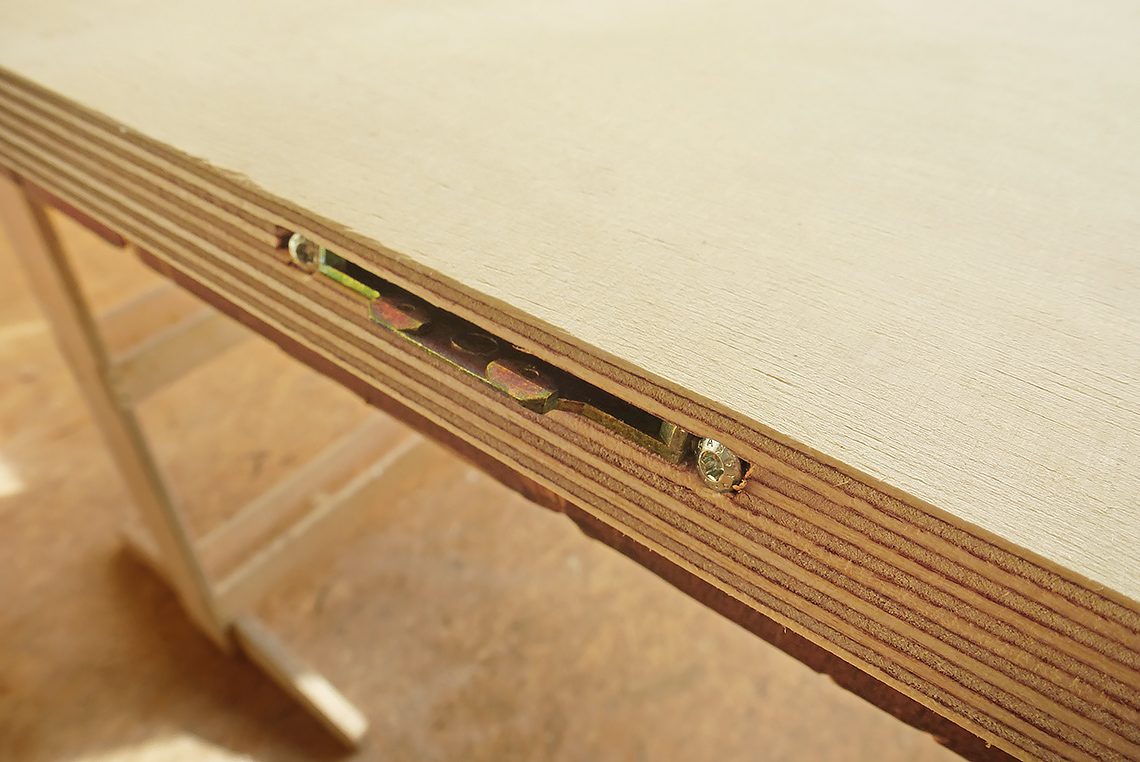

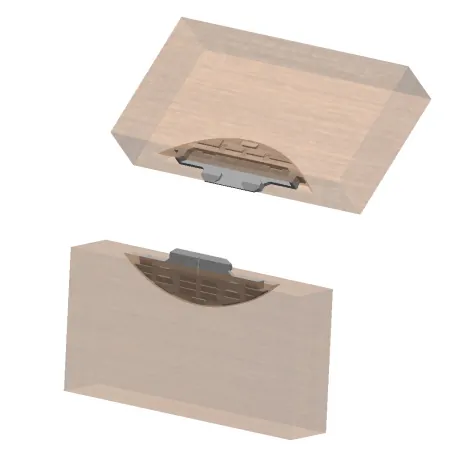

Connector halves are screwed into a standard #20 biscuit slot with pan-head screws and then simply slid together to form a secure joint. For added reinforcement, a few drops of KNAPP Adhesive PU+ can be applied during installation. The METAL connector delivers high strength and is immediately load-bearing, making it especially popular for hardwood furniture, cabinets, and knock-down projects.

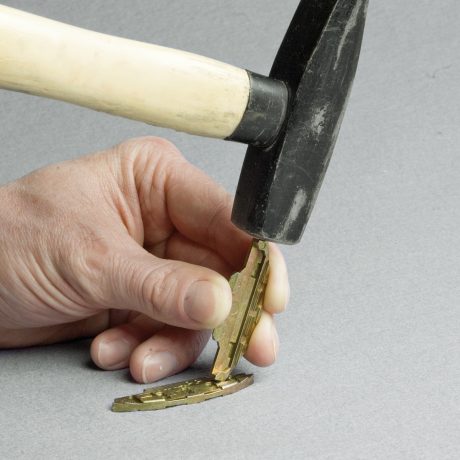

Optional locking tabs allow the joint to be latched in one or both directions, providing extra versatility on site and allowing for fast installation of flat-packed components.

Features and Benefits

• Fast assembly – slide together in seconds

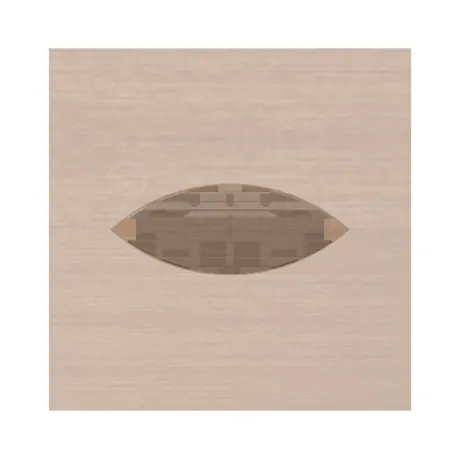

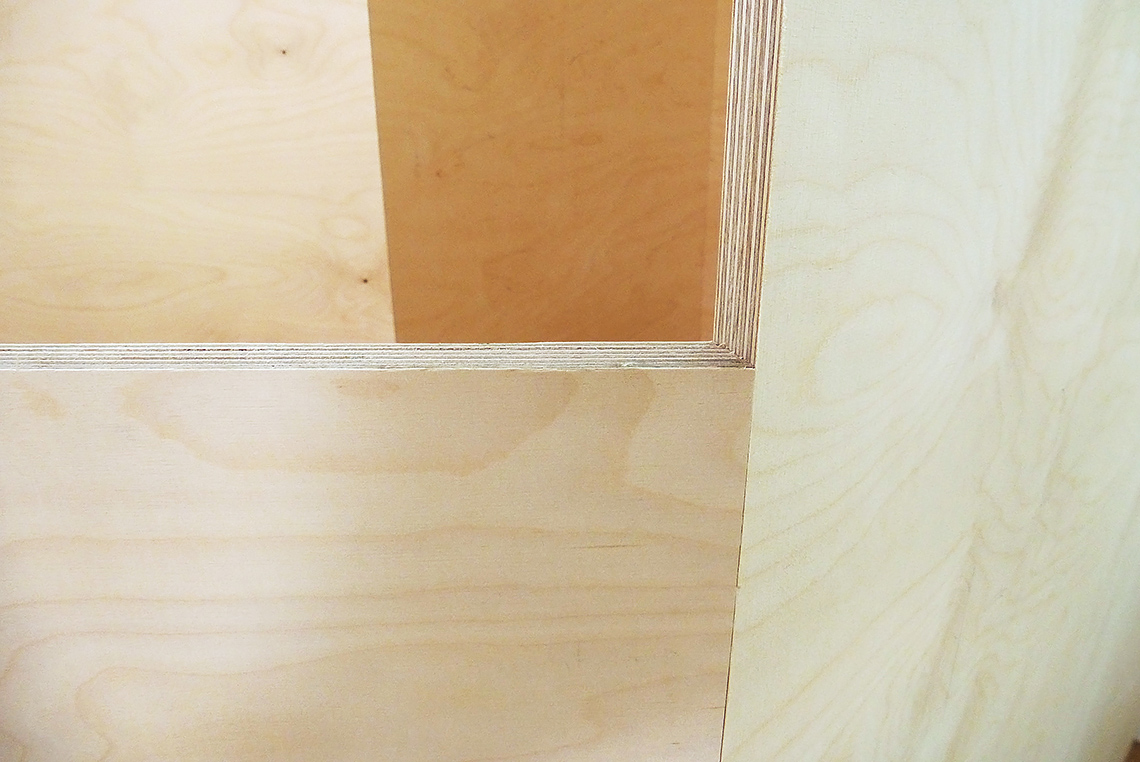

• Concealed connection for a seamless look

• Self-tightening – no clamps required, prevents gaps over time

• Strong and reliable, ideal for hardwood applications

• Can be latched via integrated locking tabs

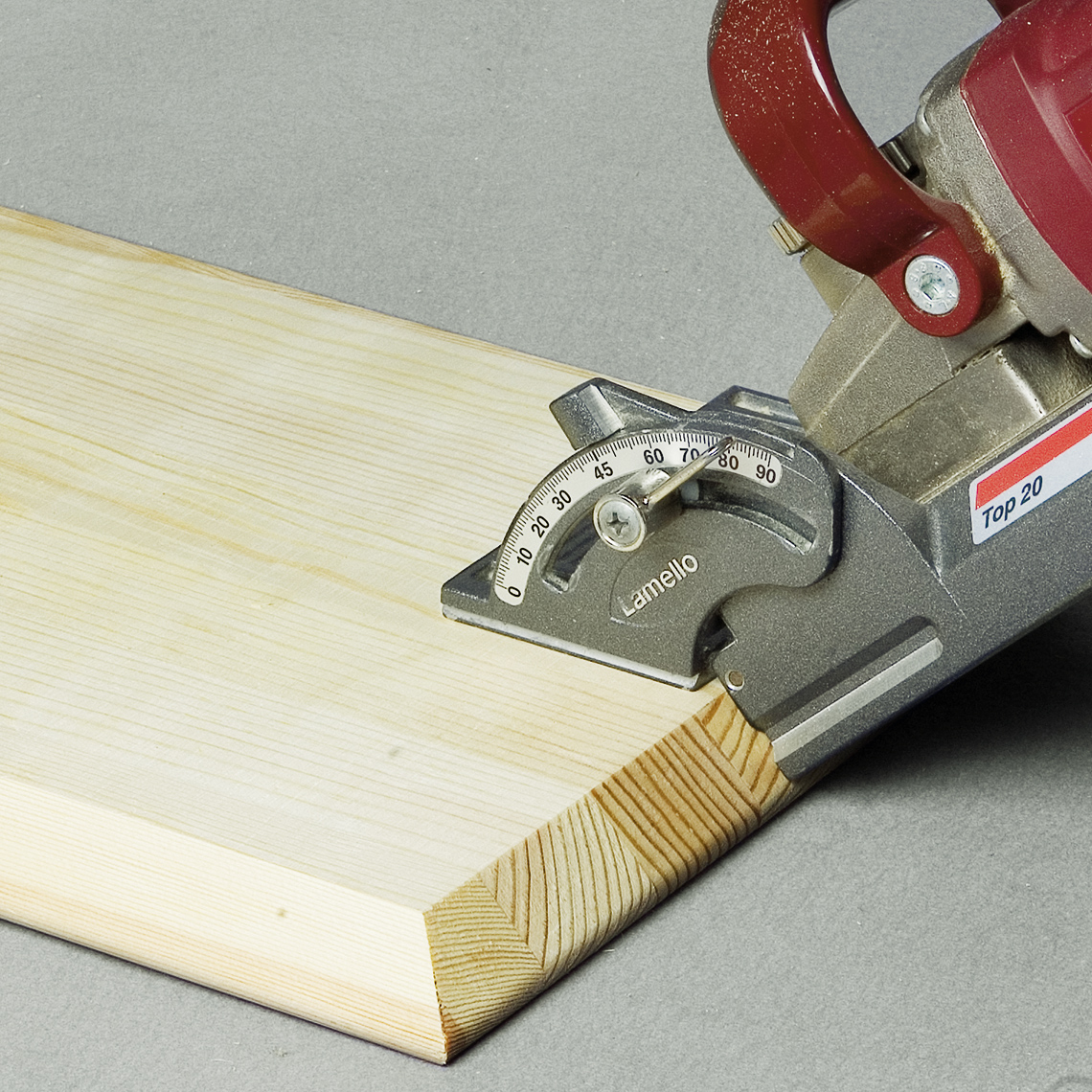

• Suitable for knock-down furniture and miter joints

• Furniture and case goods

• Architectural millwork

• Shopfitting projects

• Cabinets and knock-down assemblies

• Door frames and structural joints

• Material: Zinc die-cast alloy

• Coating: None

• Connector Type: Slide connector

• Mounting: Screwed into #20 biscuit slots with PH-screws (3×13 mm for face grain, 3×25 mm for end grain)

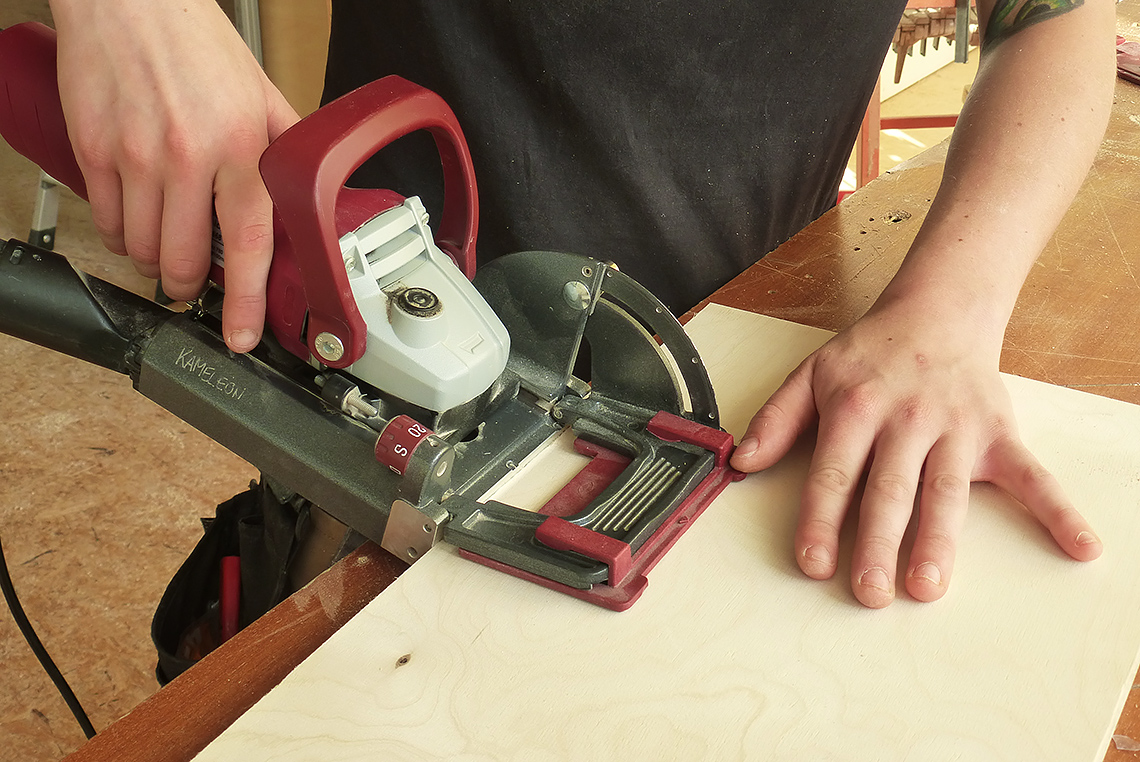

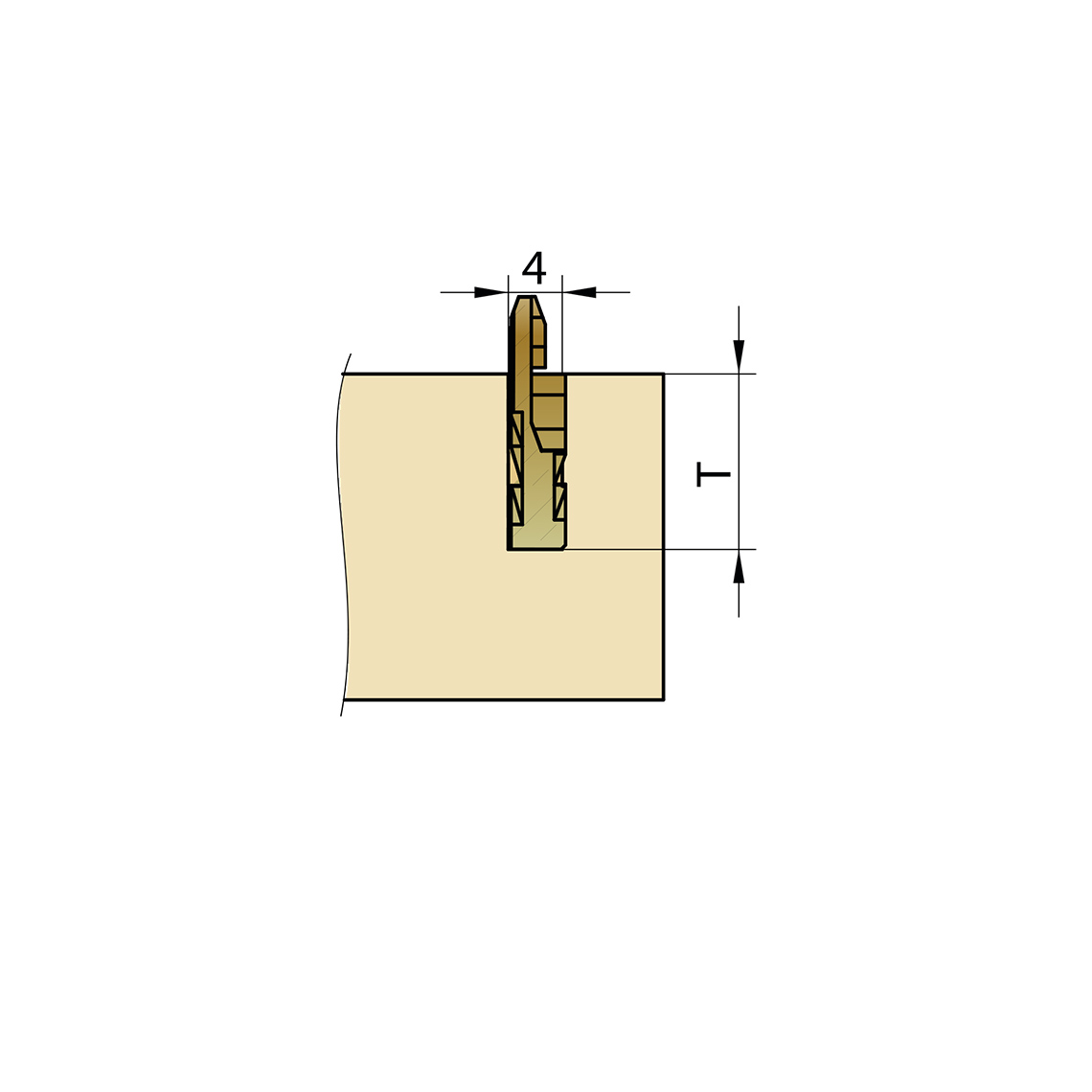

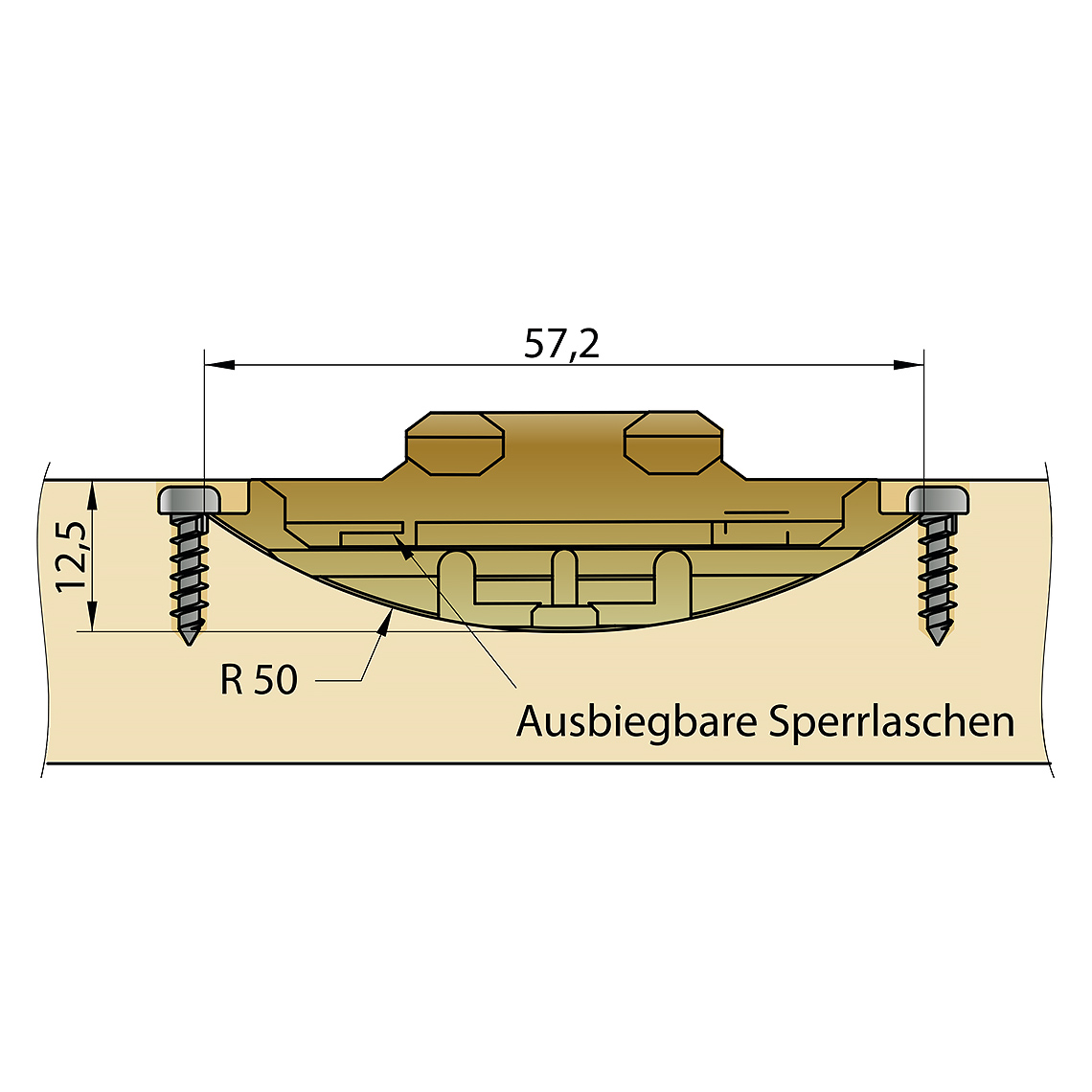

• Installation: Cut a #20 biscuit slot (12.5 mm depth), insert connector, and fasten with screws

• Suitable Materials: All wood and board materials

• Advantages: Concealed, self-tightening, demountable; optional integrated stop
