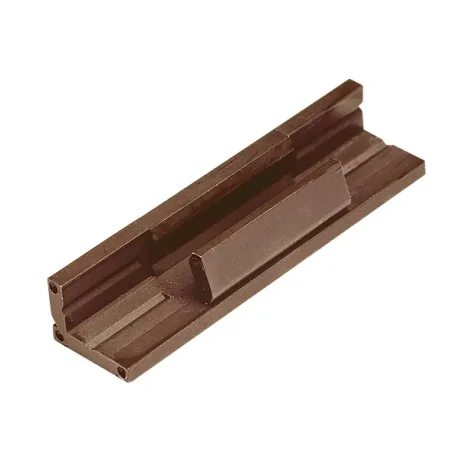

KLICKpro – Dovetail Receiving Connector

KLICKpro – Dovetail Receiving Connector

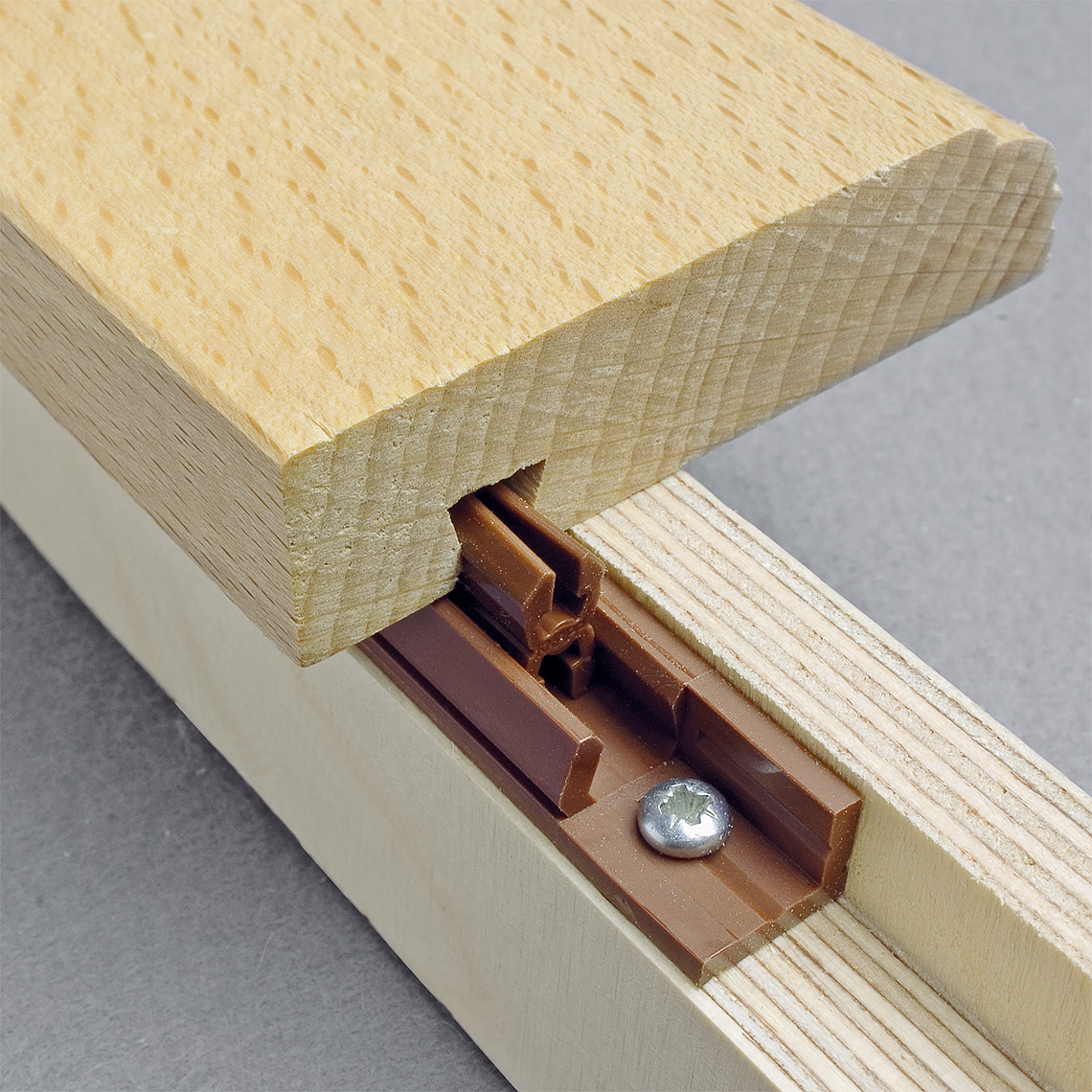

The KLICKpro is a receiving connector that acts as an adapter for both KLICK and sKLICK connectors. Designed to sit in a dado, rabbet, or surface-mounted position, KLICKpro provides a secure dovetail channel into which KLICK and sKLICK snap for fast and concealed assembly.

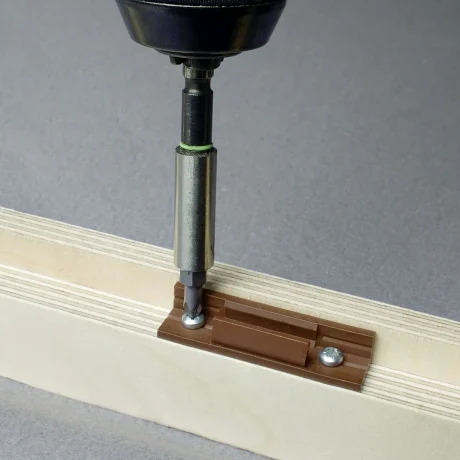

Installation is simple: the KLICKpro can be fixed in place with screws, nails, staples, or KNAPP Adhesive PU+. Once secured, the system allows trims, mouldings, and casings to snap into place without visible fasteners.

Made of fiberglass-reinforced, UV- and weather-resistant PA6 plastic, the KLICKpro is durable enough for indoor and outdoor use. Combined with KLICK or sKLICK, it offers a versatile, self-tightening connection that reduces labor, eliminates nail holes, and enables disassembly and re-assembly when needed.

Features and Benefits

• Quick assembly – snap-in connection in seconds

• Concealed – no holes or visible fasteners in the finished workpiece

• Self-tightening – dovetail design pulls into the groove without clamps or glue

• Versatile – surface-mount, dado, or rabbet installation options

• Durable – reinforced PA6 plastic withstands up to 300℉

• Indoor and outdoor use – UV- and weather-resistant

• Reusable – can be disassembled and re-assembled as needed

• Mouldings and trims (light rail, crown, toe kicks)

• Window and door casings

• Face frames and chair rails

• Case goods and cabinetry

• Architectural millwork

• Shopfitting projects

• Furniture and interior fittings

• Clamping aid for glued joints

• Material: Plastic (PA6, dark brown, fiberglass-reinforced)

• Coating: None

• Connector Type: Dovetail receiving connector for KLICK and sKLICK

• Mounting: Surface-mounted, or installed in a 12 mm groove or rabbet; fixed with screws, nails, staples, or KNAPP-Adhesive PU+

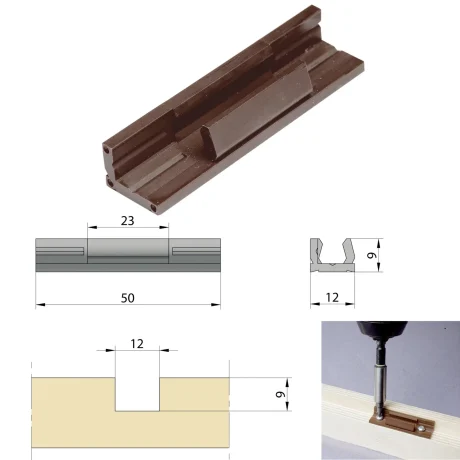

• Installation: Cut groove 9 mm deep × 12 mm wide, or install surface-mounted; compatible with KLICK Dovetail Router Bit

• Suitable Materials: Solid wood, plywood, composites, laminates, MDF, HDF

• Advantages: Concealed, self-tightening, demountable connector; part of the KLICK system for trims, mouldings, and casings
