QUICK‑SET 5 mm x 7.5 – 2‑Part Locking Dowel

The QUICK-SET 5×7.5 mm is the most compact option in the QUICK-SET family, designed for lightweight case goods, drawer boxes, and small cabinetry. Despite its smaller size, the dowel offers strong pull-out values thanks to its threaded stud and plastic sleeve design.

Like all QUICK-SET connectors, it is self-tightening, non-visible, and requires no glue, making it ideal for fast assembly in thinner materials where space is limited.

Features and Benefits

• Compact 5×7.5 mm design – suited for smaller components

• Self-tightening and immediately load-bearing – no clamping needed

• Concealed, non-visible connection for clean surfaces

• High pull-out strength despite small dimensions

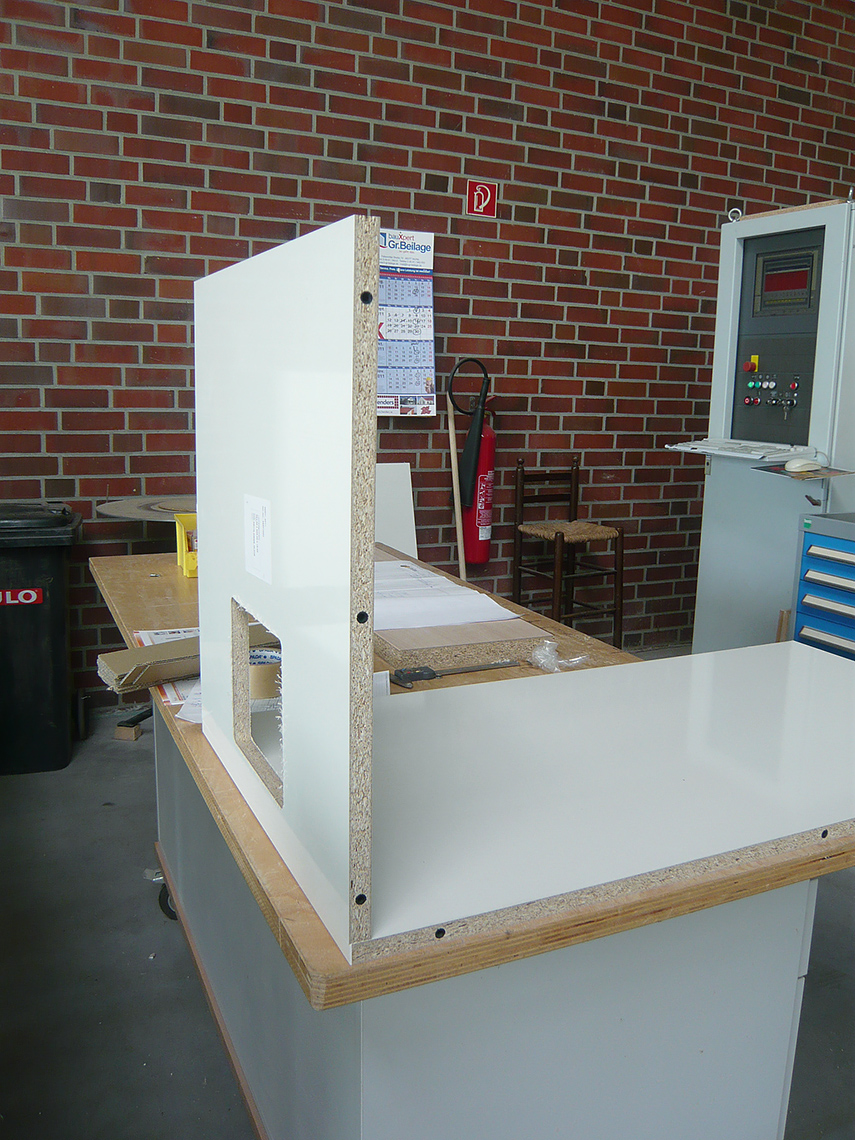

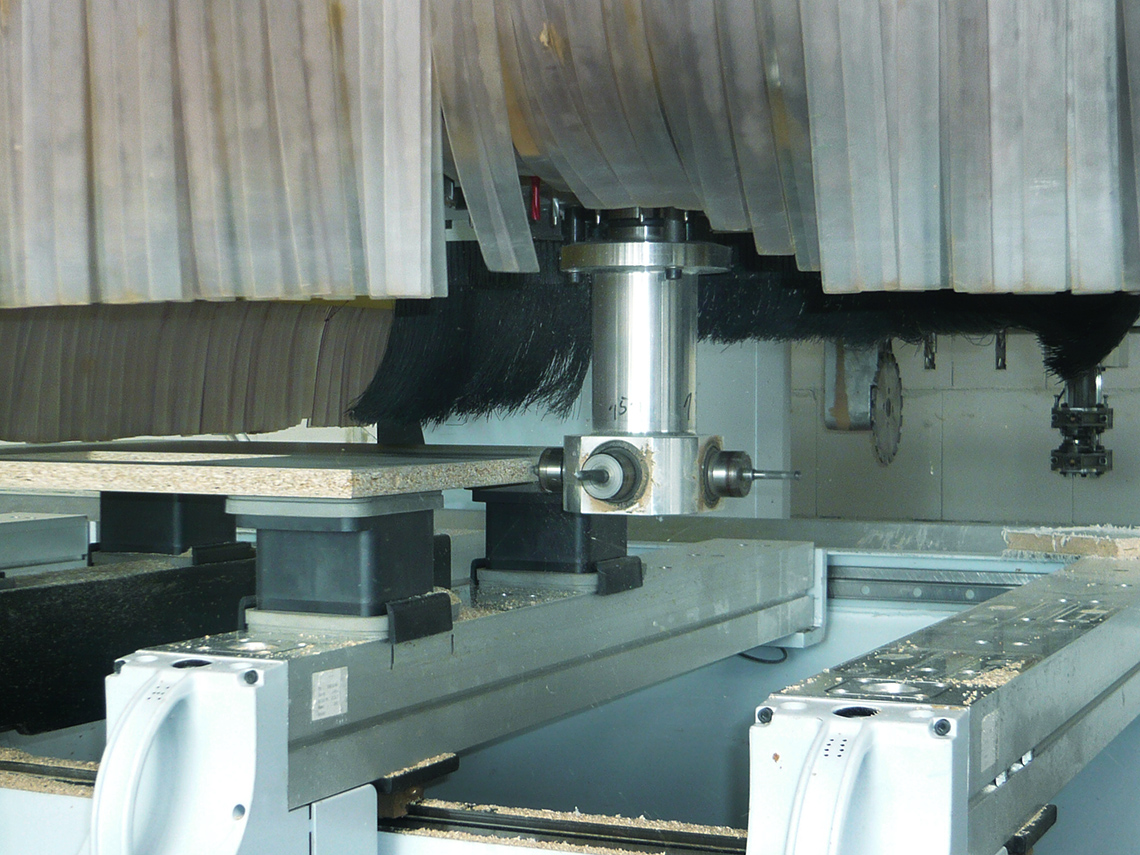

• Ideal for prefabrication and CNC processing

• Drawer boxes

• Small cabinetry and case goods

• Shopfitting with thin materials

• Lightweight furniture

• Material: Threaded stud with plastic sleeve

• Coating: None

• Connector Type: 2-part locking dowel

• Mounting: Screw in the threaded stud; knock in the plastic sleeve

• Installation: Use with doweling jigs, cordless drills, or dowel insertion machines

• Suitable Materials: Solid wood and composite board materials

• Advantages: Concealed, self-tightening, non-visible connector; immediately load-bearing

Steps

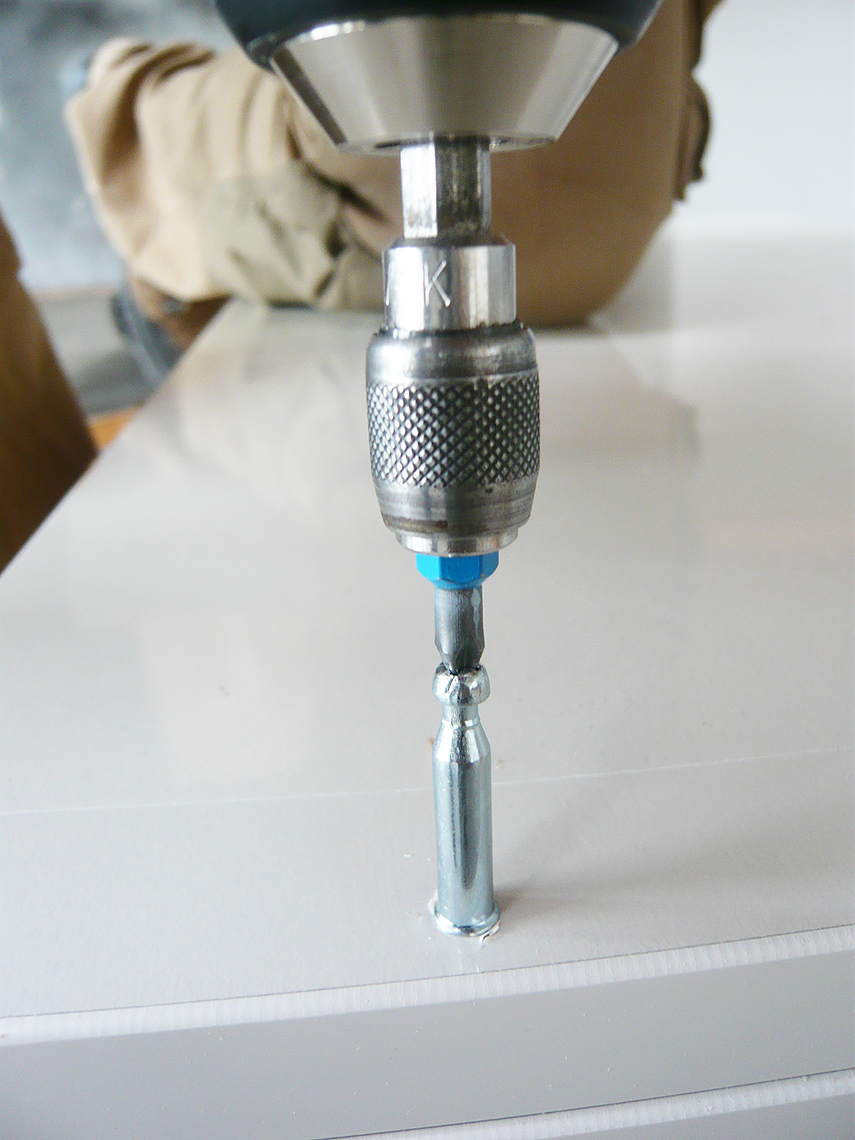

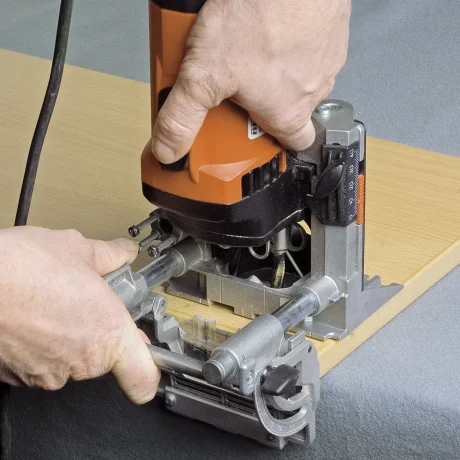

1. Drill a 5 mm hole for the threaded metal stud.

2. Drill an 8 mm hole for the plastic sleeve, to a depth of 31–32 mm.

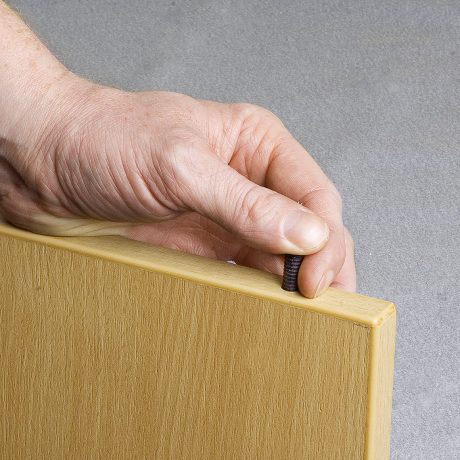

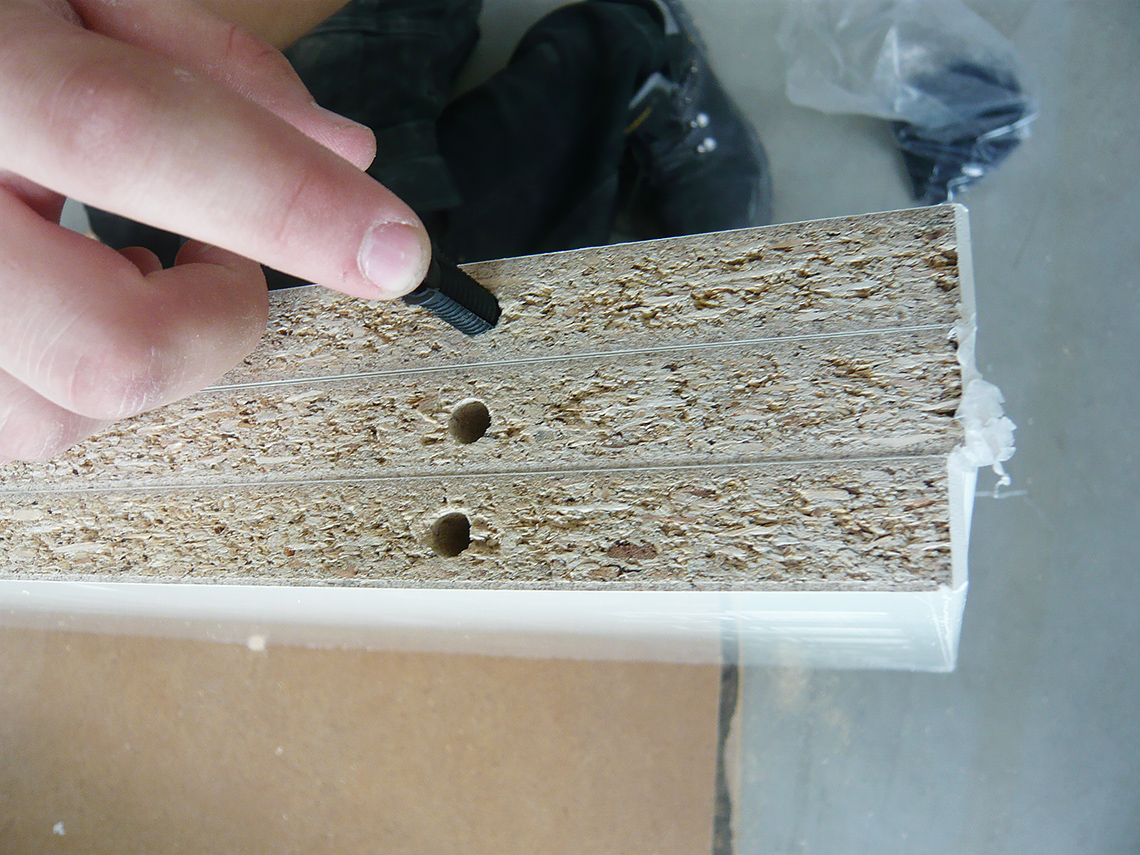

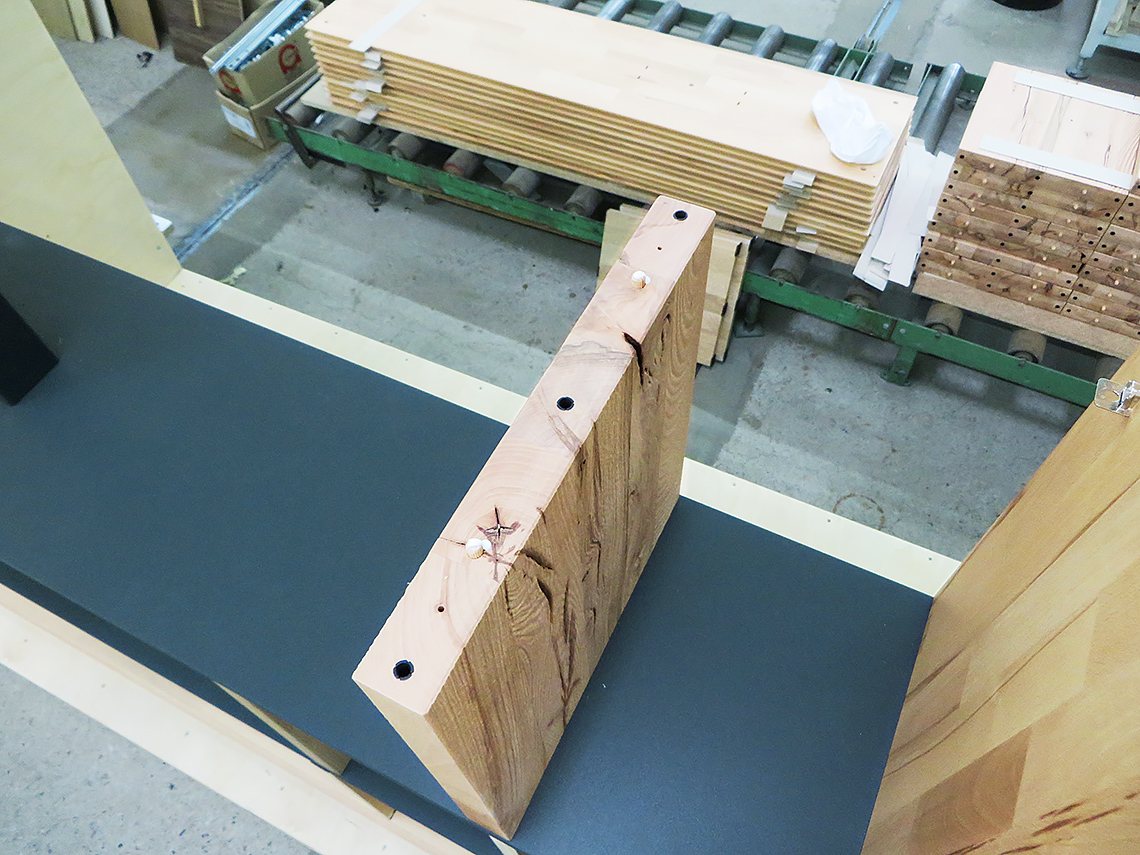

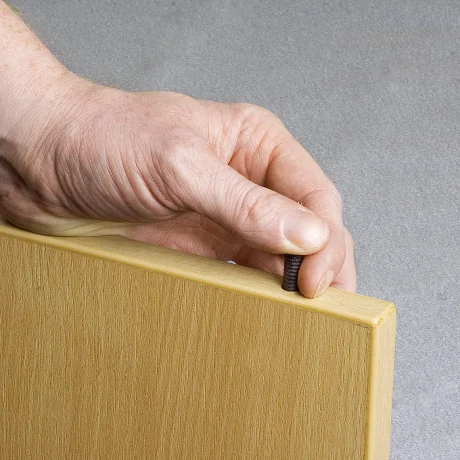

3. Insert the plastic sleeve loosely into the borehole without adhesive.

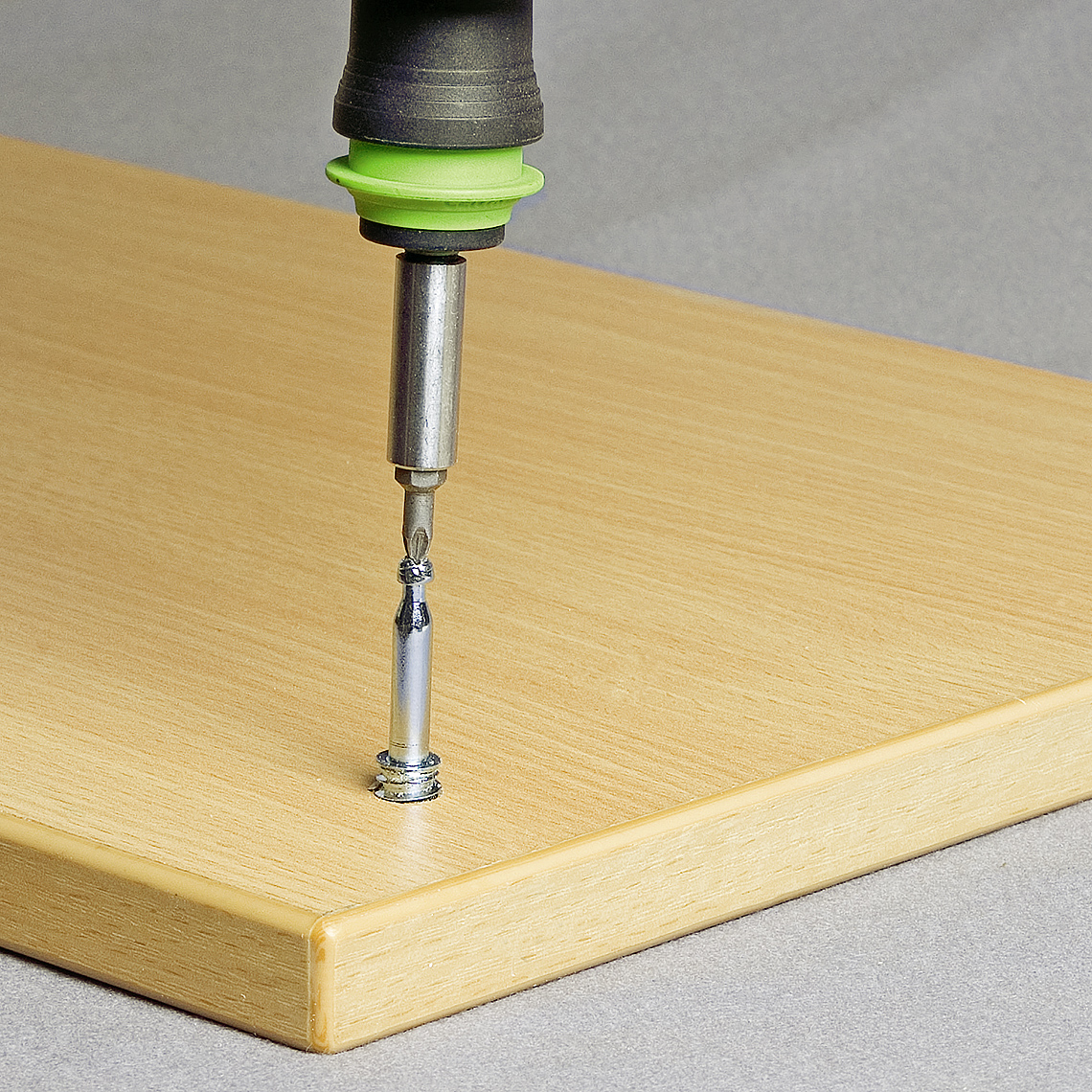

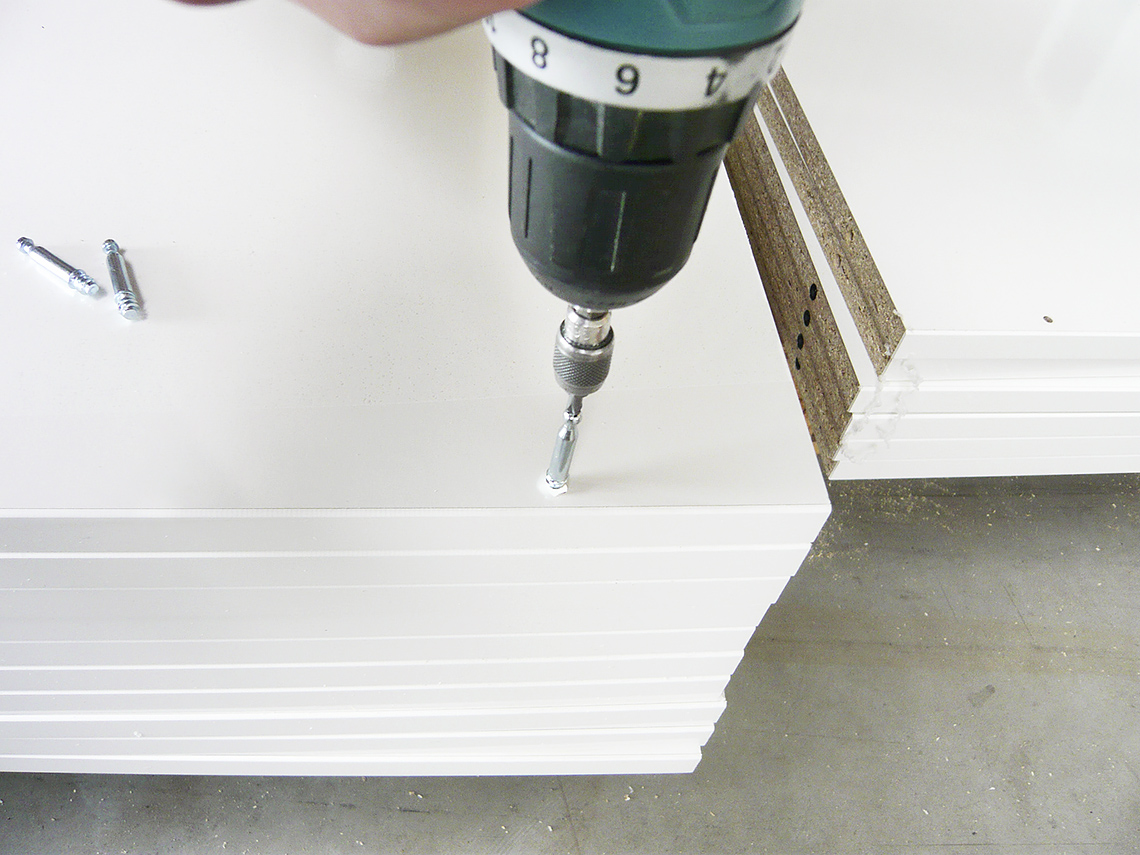

4. Screw in the threaded stud.

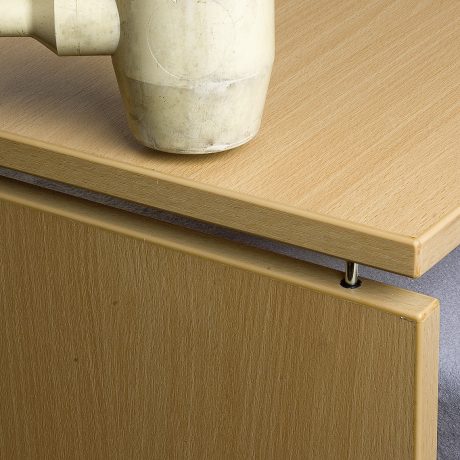

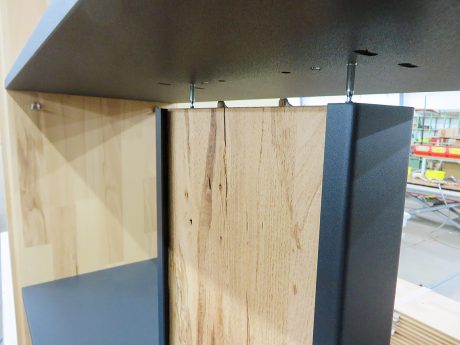

5. Assemble components with light pressure or a rubber mallet.

Tips

• Bolt thread length: 7.5 mm, making this size suitable for vertical center elements as thin as 14 mm.

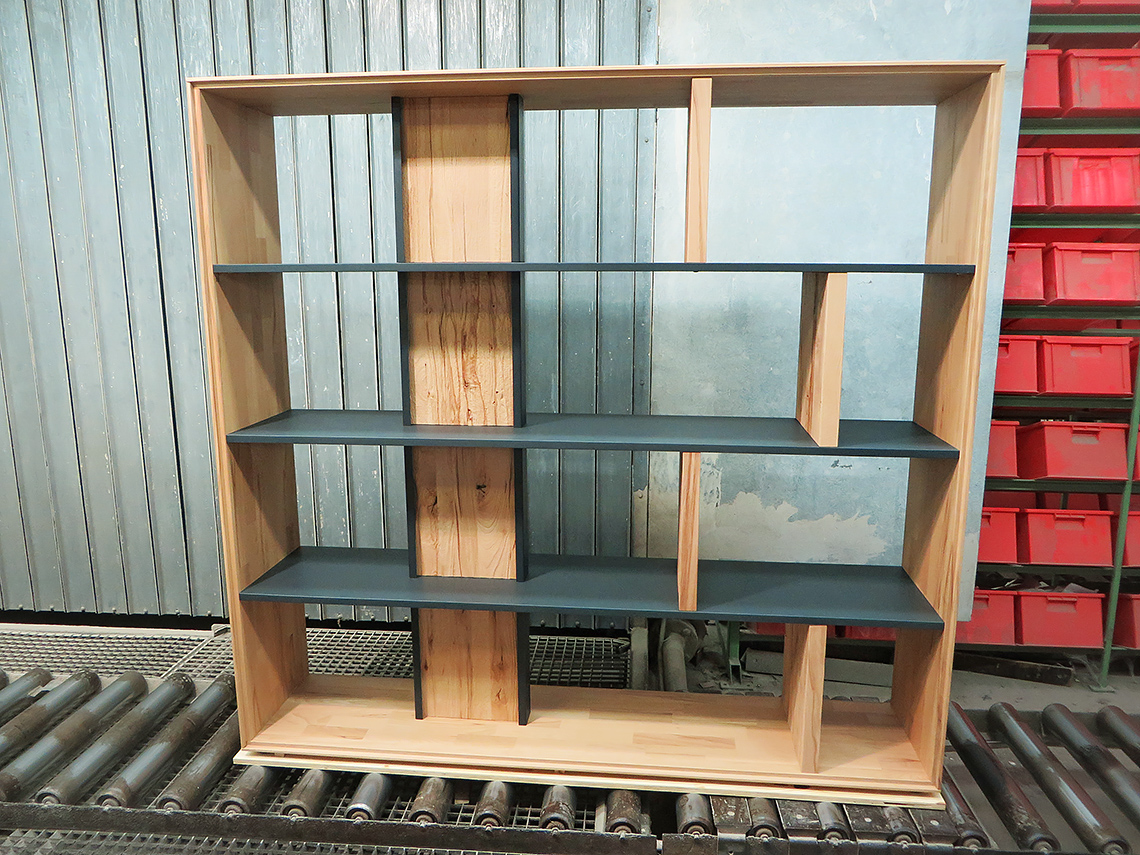

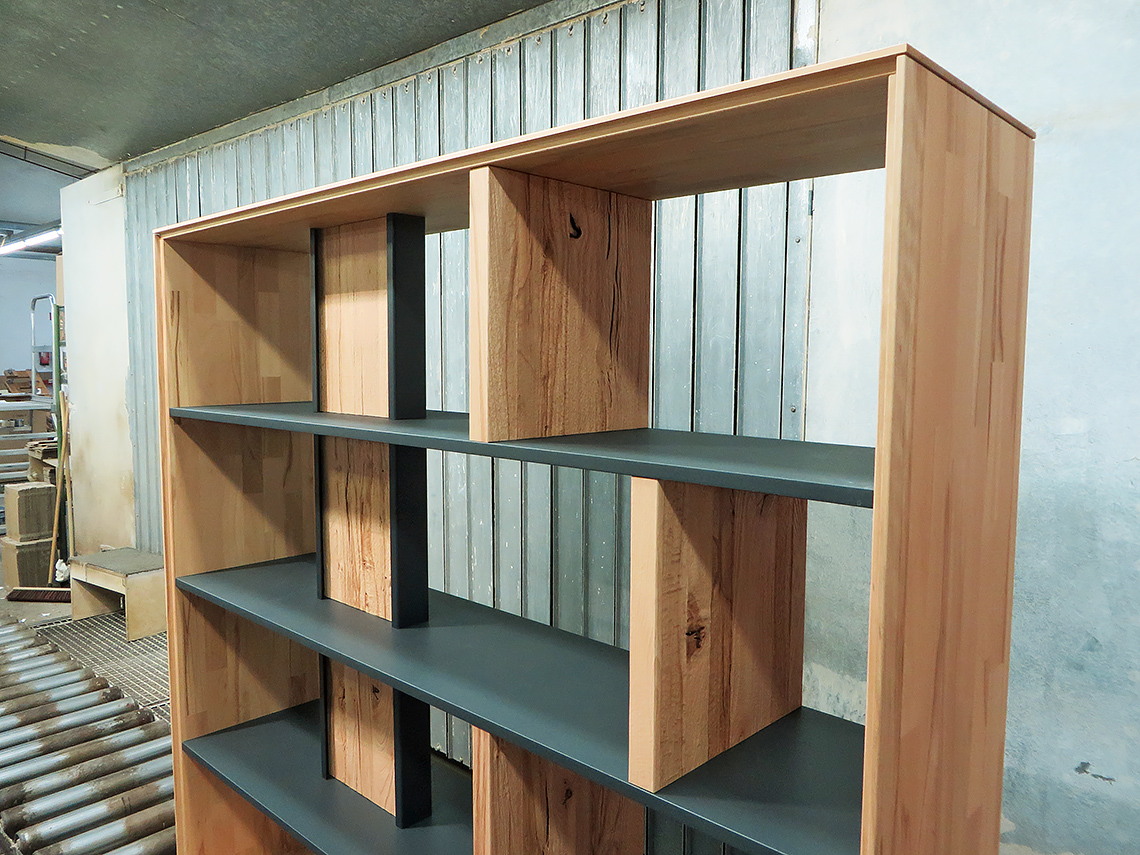

• Shelves and dividers can be mounted in one plane using this method.

• For a length of 600 mm, use 5–6 connectors for optimal strength.

• Always drill the plastic sleeve hole to exactly 31–32 mm deep for proper tightening.

• Suitable for CNC machining and mass production.
