QUICK‑SET 8 mm x 26 – 2‑Part Locking Dowel

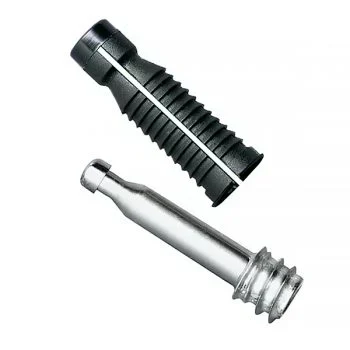

The QUICK-SET 8 × 26 mm Locking Dowel provides a fast, self-tightening connection for cabinets, furniture, and case goods requiring extra depth and strength. This two-part connector includes a threaded steel stud and an 8 mm plastic sleeve that install easily into pre-drilled holes. Once assembled, the joint locks immediately without glue, clamps, or drying time, creating a strong, concealed connection ideal for high-volume manufacturing or on-site assembly.

Features and Benefits

• Extended 26 mm anchor depth delivers higher pull-out strength

• Self-tightening design eliminates the need for glue or clamping

• Concealed connection – no visible fasteners

• Ready for immediate load after assembly

• Precise fit for 8 mm boreholes and CNC production

• High-strength joint suitable for both solid and composite materials

• Furniture and cabinetry
• Case goods and millwork
• Shopfitting projects
• Drawer construction

• Material: Threaded steel stud and plastic sleeve

• Coating: None

• Connector Type: Two-part locking dowel

• Mounting: Screw in the threaded stud and tap in the plastic sleeve

• Installation: Doweling jig, cordless drill, or CNC insertion machine

• Suitable Materials: Solid wood, MDF, particleboard, and composite panels

• Advantages: Concealed, self-tightening, non-visible connector with immediate load-bearing performance

Steps

1. Drill Boreholes

   • Diameter: 8 mm for both the threaded stud and plastic sleeve

   • Depths:

     • Metal stud: 26 mm

     • Plastic sleeve: 31 – 32 mm

2. Insert the Plastic Sleeve

   • Tap or press the sleeve loosely into the 8 mm hole without glue.

3. Install the Threaded Stud

   • Screw the metal stud into its 8 mm borehole using a cordless driver or by hand.

4. Assemble the Components

   • Align the workpieces and press together with light pressure or a rubber mallet until seated.

Tips

• Maintain the 31 – 32 mm sleeve depth for proper tightening.

• Use 5 – 6 connectors per 600 mm length for optimal hold.

• Ideal for CNC machining or dowel insertion systems for accurate, fast production.
