QUICK‑SET 8 mm x 8 – 2‑Part Locking Dowel

The QUICK-SET 8×8 mm provides increased diameter for stronger holding power while maintaining a short embedment depth. This makes it a great choice for case goods, furniture, and applications where panel thickness is limited but higher strength is required.

Its self-tightening mechanism locks the connection securely without glue, saving time and ensuring durable performance in both solid wood and composite boards.

Features and Benefits

• Larger 8 mm diameter – stronger anchoring in thinner stock

• Immediately load-bearing, self-tightening connection

• Concealed installation with no visible fasteners

• Strong and reliable for furniture and cabinetry

• Ideal for high-volume production and CNC insertion

• Furniture and cabinetry

• Case goods and millwork

• Shopfitting projects

• Drawer construction

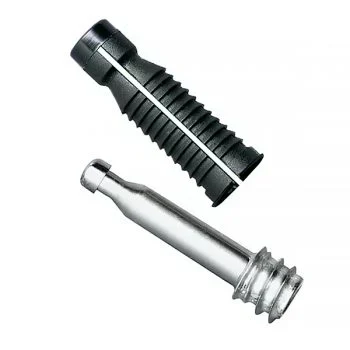

• Material: Threaded stud with plastic sleeve

• Coating: None

• Connector Type: 2-part locking dowel

• Mounting: Screw in the threaded stud; knock in the plastic sleeve

• Installation: Use with doweling jigs, cordless drills, or dowel insertion machines

• Suitable Materials: Solid wood and composite board materials

• Advantages: Concealed, self-tightening, non-visible connector; immediately load-bearing

Steps

1. Drill an 8 mm hole for both the threaded metal stud and the plastic sleeve.

2. Drill the plastic sleeve borehole to a depth of 31–32 mm.

3. Insert the plastic sleeve loosely into the borehole without adhesive.

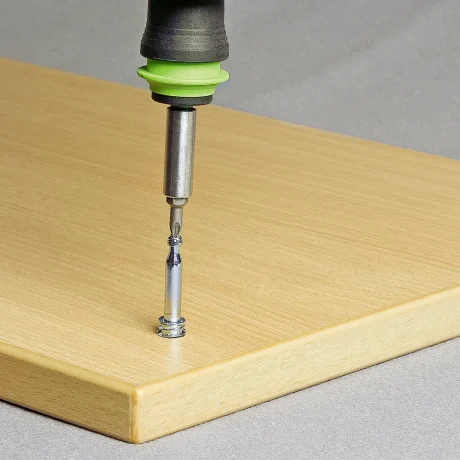

4. Screw in the threaded stud.

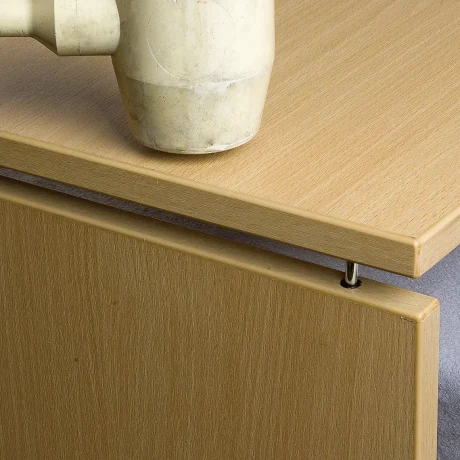

5. Assemble components with slight pressure or a rubber mallet.

Tips

• Larger 8 mm diameter provides stronger anchoring in thicker panels.

• Distribute 5–6 connectors per 600 mm for maximum holding strength.

• Always maintain sleeve depth of 31–32 mm for optimal tightening.

• CNC machining ensures efficient mass production for furniture and case goods.
