TUCK 10×16 – Spring Steel Compression Dowel

The TUCK 10×16 mm is a compact, screw-in compression dowel designed for applications where space is limited and a shallow anchoring depth is required. Despite its small length, it provides strong and reliable connections thanks to its spring steel construction.

This connector is immediately load-bearing and requires no glue or clamping. One side is screwable for fixed anchoring, making it especially suitable for thin panels, drawer boxes, and small furniture assemblies where conventional dowels may not fit.

Features and Benefits

• Compact 16 mm length for shallow anchoring

• Screw-in design provides secure positioning on one side

• Self-tightening spring steel ensures long-term joint stability

• Concealed connector for clean surfaces

• Immediately load-bearing with no glue or clamps required

• Ideal for thin materials and smaller joinery projects

• Drawer boxes

• Thin cabinetry panels

• Shopfitting furniture

• Small furniture assemblies

• Interior fittings with limited bore depth

• Size: 10×16 mm

• Material: Spring steel, black

• Coating: None

• Connector Type: Screw-in spring steel compression dowel

• Mounting: One-sided screwable, compression fit in borehole

• Installation Tools: Cordless drill, doweling jig, or dowel insertion machine

• Suitable Materials: Solid wood and composite boards

• Advantages: Compact, concealed, and immediately load-bearing

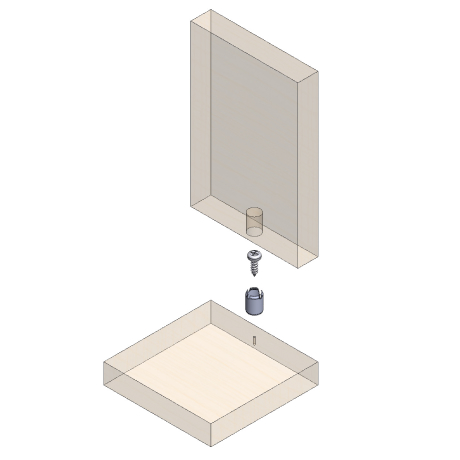

Steps

1. Screw one end of the TUCK 10×16 into part A.

2. Drill a 10 mm borehole to a depth of 16 mm in part B.

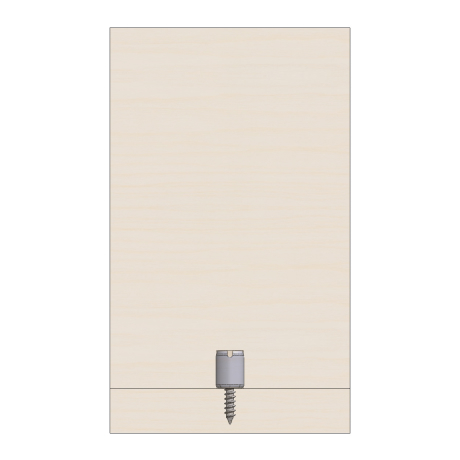

3. Insert the connector and join the parts together with a rubber mallet.

Tips

• The compact size makes it ideal for thin stock or shallow joinery.

• Assemble by striking from below rather than against a hard surface, letting the material’s natural suspension aid assembly.

• For larger workpieces, a clamping aid can be used.

• Glue may be added, but the joint is immediately load-bearing without curing time.
