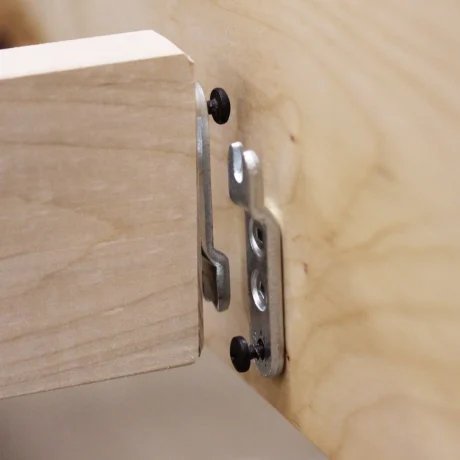

DUO System 100 x 15 – Concealed Bed & Furniture Frame Connector

The DUO 100×15 is a long-profile connector in the DUO-System, specifically engineered for bed frames and other furniture requiring extended anchoring depth. Despite its slim design, it provides strong holding power with a concealed, self-tightening joint that can be assembled quickly without clamping.

Certified with a load value of 2.00 kN (transverse force, insertion direction), the DUO 100×15 combines strength with clean aesthetics, making it a popular choice for beds and other frame applications where visible fasteners would distract from the design.

Features and Benefits

• Long-profile connector designed for extended anchoring depth

• Concealed, self-tightening design ensures a clean finished look

• Adjustable with pan head screws for long-term stability

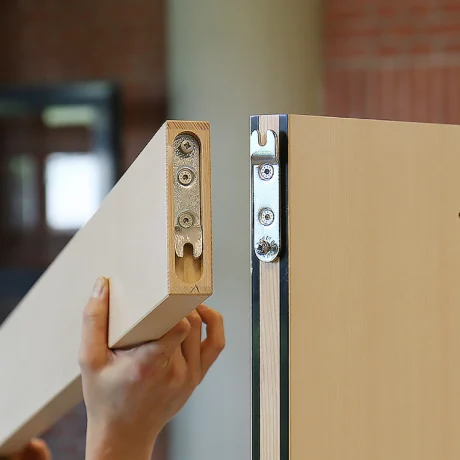

• Quick installation – hook and fasten in seconds

• Allows disassembly and reassembly when needed

• Independently tested and certified by Holzforschung Austria

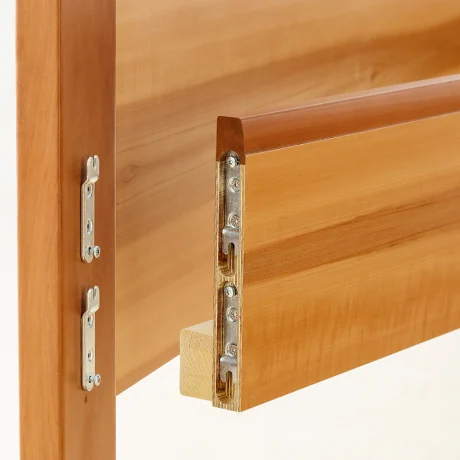

• Bed frames (primary use)

• Tables and chairs

• Booths, pews, and interior furniture

• Timber joinery requiring slim but strong connections

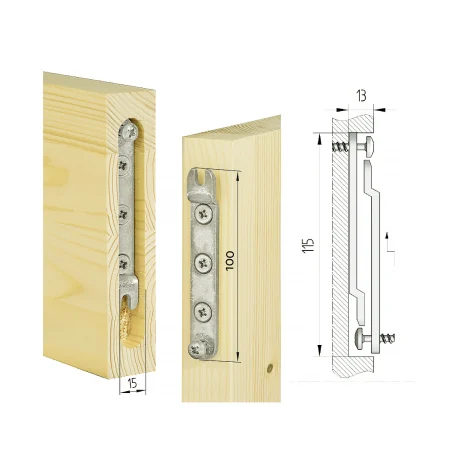

• Size: DUO 100×15 mm

• Material: Blue-galvanized, weather-resistant steel

• Load Value: 2.00 kN (transverse force, insertion direction)

• Mounting: Install with CS-screws Ø 5–6 mm (use 5×40, 5×60, 6×40, or 6×60 mm per Ö-Norm M5027)

• Installation Tools: CNC machine, long hole drilling machine, or hand router

• Suitable Materials: Solid wood and plywood panels from 21 mm thickness

• Advantages: Concealed, slim-profile connector offering strong and adjustable joints

Steps

1. Cut the mortise with a 2-Flute Straight Router Bit (13/32″) and a Router Bushing (1″ OD) using the MULTI F Routing Jig.
   Note: Select the correct Routing Jig size for the DUO 100×15. Optionally, use the Router Base Plate Adapter to hold the Router Bushing (1″ OD).

2. Align the Routing Jig and cut a 13 mm deep mortise into either the end-grain or face of the timber. Mortise width is preset; mortise length matches the connector size.

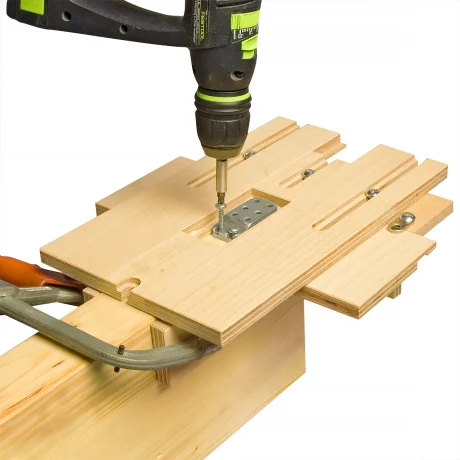

3. Position one DUO 100×15 connector plate into the mortise and use it as a template to predrill screw holes.

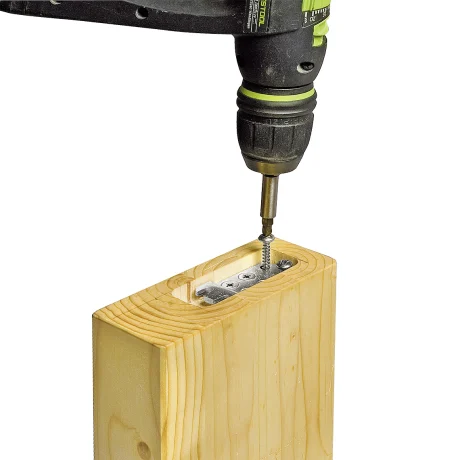

4. Secure the first plate with the provided screws.

5. Place the second plate over the first and tighten pan head screws until snug, ensuring accurate depth.

6. Fasten the second connector plate with screws.

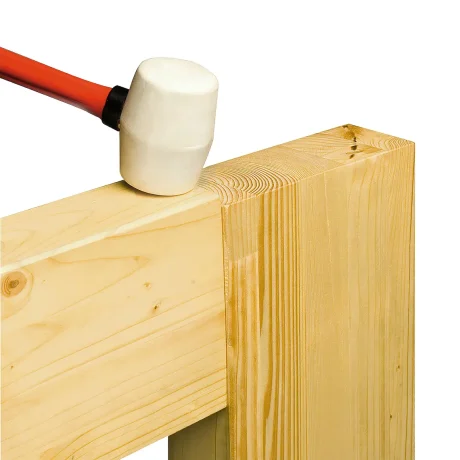

7. Assemble the components by tapping together with a rubber mallet.

Tips

• The dovetail-style interlock ensures joints remain consistently tight.

• Allows natural wood movement and can be re-tightened when necessary.
