DUO System 62 x 15 – Concealed Bed Table & Stair Frame Connector

The DUO 62×15 is a durable connector in the DUO-System, designed for medium-duty frame connections requiring both strength and precision. Its slim but longer profile makes it especially suited for applications where stronger anchoring is needed without adding bulk.

Tested with a load value of 1.29 kN (transverse force, insertion direction), the DUO 62×15 delivers reliable strength for furniture, stair construction, and timber frame applications. Like all DUO connectors, it installs quickly, remains concealed, and is fully self-tightening.

Features and Benefits

• Compact yet strong with reliable load capacity

• Concealed connector – clean look with no visible fasteners

• Self-tightening design ensures lasting joint stability

• Fast assembly – components hook together in seconds

• Can be disassembled and reassembled without compromising strength

• Tested and certified by Holzforschung Austria

• Stair stringer-to-post joints

• Bed frames

• Timber furniture connections

• Booths, pews, and interior design joinery

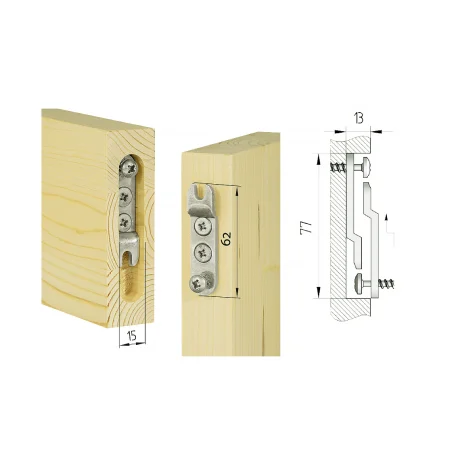

• Size: DUO 62×15 mm

• Material: Blue-galvanized, weather-resistant steel

• Load Value: 1.29 kN (transverse force, insertion direction)

• Mounting: By screwing with CS-screws Ø 5–6 mm (use 5×40, 5×60, 6×40, or 6×60 mm per Ö-Norm M5027)

• Installation Tools: CNC machine, long hole drilling machine, or hand router

• Suitable Materials: Solid wood and plywood panels from 21 mm thickness

• Advantages: Concealed, adjustable, and self-tightening connector for frame joints

Steps

1. Cut the mortise using a 2-Flute Straight Router Bit (13/32″) with a Router Bushing (1″ OD) and the MULTI F Routing Jig.
   Note: Choose the correct Routing Jig size for the DUO 62×15. Optionally, use the Router Base Plate Adapter to hold the Router Bushing (1″ OD).

2. Align the Routing Jig and cut a mortise 13 mm deep into either the end-grain or face of the timber. Mortise width is preset; length corresponds to connector size.

3. Insert one DUO 62×15 connector plate into the mortise and predrill the screw holes using the plate as a guide.

4. Fasten the first connector plate with the provided screws.

5. Overlay the second plate, inserting pan head screws until snug to ensure proper alignment and depth.

6. Secure the second plate with screws.

7. Join the components by tapping together with a rubber mallet.

Tips

• The dovetail-like interlock ensures a consistently tight joint.

• Fasteners allow natural wood movement (shrinkage or swelling) and can be re-tightened as needed.
