DUO System 90 x 46 – Heavy-Duty Concealed Bed & Beam Frame Connector

The DUO 90×46 is the largest and strongest connector in the DUO-System, built for maximum strength and stability in demanding frame joints. With its wide and robust profile, it delivers exceptional holding power while preserving the concealed, self-tightening design that makes DUO connectors easy to use and visually seamless.

Independently tested with a load value of 4.35 kN (transverse force, insertion direction), the DUO 90×46 is the connector of choice for heavy-duty furniture, bed assemblies, and structural timber construction.

Features and Benefits

• Highest load-bearing capacity in the DUO series

• Non-visible connector – maintains clean aesthetics

• Self-tightening design ensures lasting stability under heavy loads

• Adjustable screws allow re-tightening to accommodate wood movement

• Fast installation with CNC machining or hand tools

• Certified by Holzforschung Austria for strength and safety

• Heavy structural furniture (beds, tables, benches)

• Beams and posts in timber construction

• Stair and frame joinery requiring maximum strength

• Architectural and commercial millwork

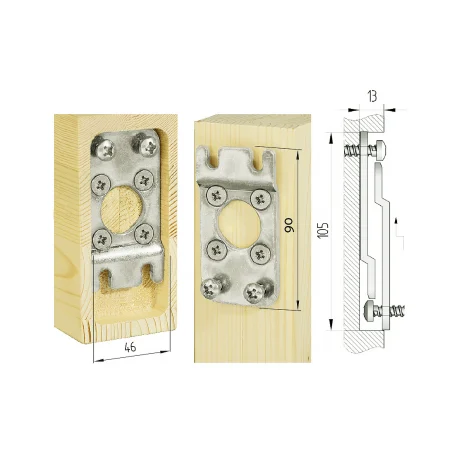

• Size: DUO 90×46 mm

• Material: Blue-galvanized, weather-resistant steel

• Load Value: 4.35 kN (transverse force, insertion direction)

• Mounting: Install with CS-screws Ø 5–6 mm (recommended sizes: 5×40, 5×60, 6×40, 6×60 mm per Ö-Norm M5027)

• Installation Tools: CNC machine, long hole drilling machine, or hand router

• Suitable Materials: Solid wood and plywood materials from 21 mm thickness

• Advantages: Concealed, heavy-duty, self-locking connector with maximum load rating

Steps

1. Cut the mortise with a 2-Flute Straight Router Bit (13/32″) and a Router Bushing (1″ OD) using the MULTI F Routing Jig.
   Note: Select the correct Routing Jig size for the DUO 90×46. Optionally, use the Router Base Plate Adapter to hold the Router Bushing (1″ OD).

2. Align the Routing Jig and cut a 13 mm deep mortise into either the end-grain or face of the wood. Mortise width is preset; mortise length corresponds to the connector size.

3. Position one DUO 90×46 connector plate into the mortise and use it as a jig to predrill screw holes.

4. Fasten the first connector plate with the screws provided.

5. Place the second plate over the first and insert pan head screws until snug for accurate depth and alignment.

6. Install the second connector plate with the screws provided.

7. Assemble the components by tapping together with a rubber mallet.

Tips

• The dovetail-style interlock delivers maximum joint stability.

• The connection can be re-tightened over time to accommodate shrinkage or swelling of wood.
