FIXclip H16 – Moulding Connectors for Window Construction

The FIXclip H16 is a concealed plastic clip for attaching glazing beads and mouldings to wood windows and wood-aluminum windows without visible fasteners. Instead of nailing or screwing through the face of the bead — which can split wood, crack glass, or leave unsightly fastener heads — the FIXclip secures the bead from behind with a hidden snap-on connection.

The clip base is fastened to the window frame by nail or screw, then the glazing bead simply presses onto the clip and locks into place. To remove the bead for glass replacement or service, lever it off the clip — the bead, glass, and frame remain undamaged. The H16 is the standard mid-size option of three FIXclip sizes (H12, H16, H20), with a 16 mm clip height for typical glazing bead profiles.

The FIXclip is tested and certified for wind load class C5 (EN 12210) and shock resistance class 3 (EN 13049), meeting the performance requirements for commercial and residential window installations.

Features and Benefits

• Perfect look — no visible fasteners on the glazing bead
• Fast installation — reduces labor with a simple snap-on process
• Concealed mounting of glass panes and glazing beads
• Demountable without damaging the glass pane or bead
• Base fastening by nail or screw for secure attachment to the frame
• Tested for wind load C5 (EN 12210) and shock resistance class 3 (EN 13049)
• For glazing beads and mouldings made of timber and/or plastic

• Wood window glazing bead attachment
• Wood-aluminum window glazing bead attachment

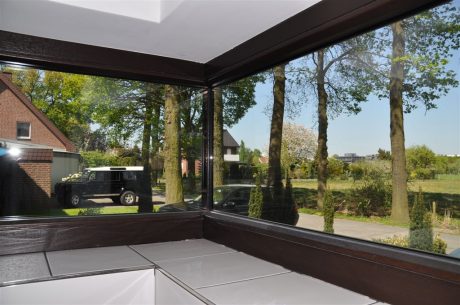

• Fixed glazing assemblies
• Interior and exterior moulding and trim attachment

• Material: Plastic

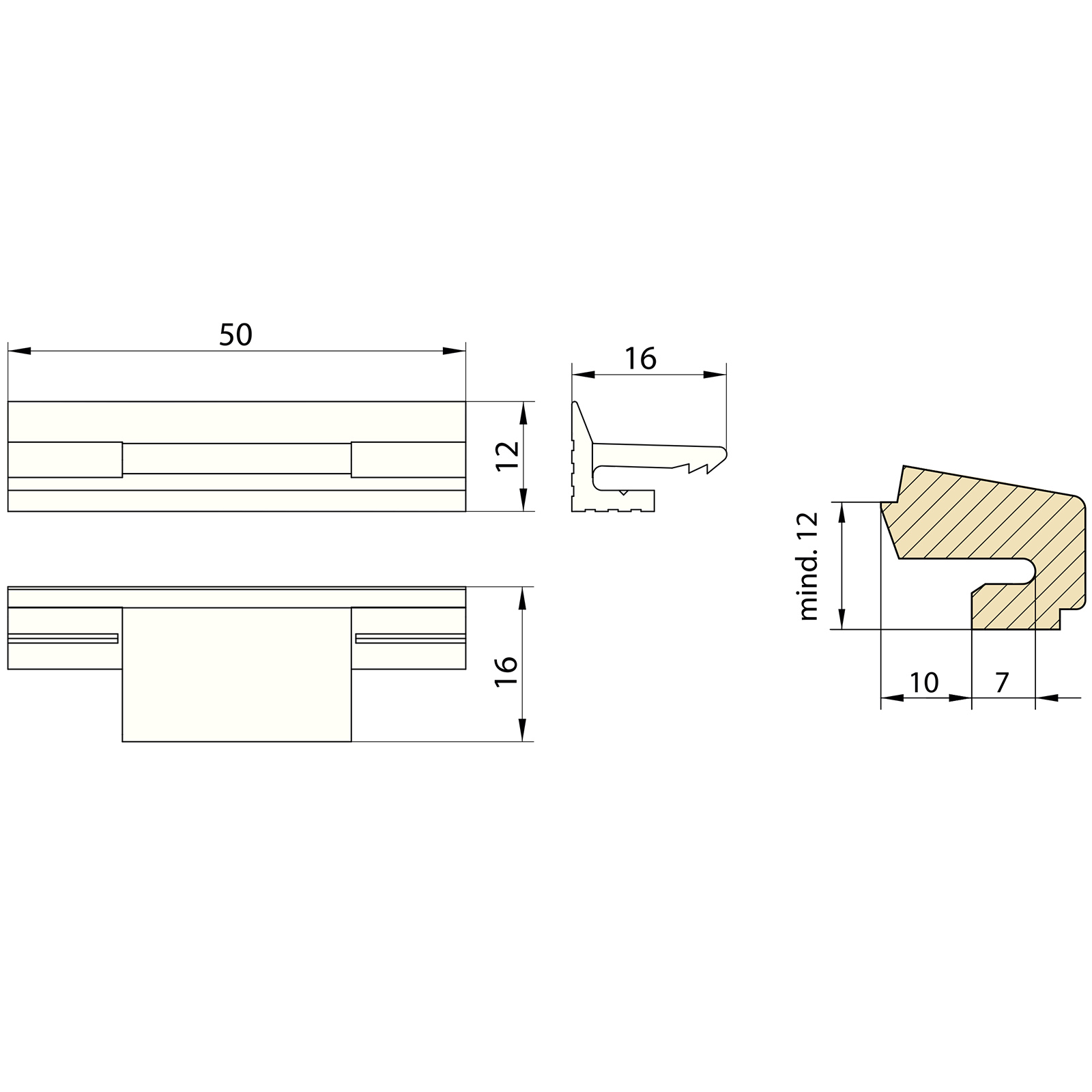

• Clip Height: H16 (16 mm)
• Base Fastening: Nail or screw into window frame
• Bead Attachment: Snap-on clip engagement
• Demountable: Yes — no damage to components on removal
• Wind Load Rating: C5 (EN 12210)
• Shock Resistance: Class 3 (EN 13049)
• Compatible Materials: Glazing beads and mouldings of timber and/or plastic

Steps

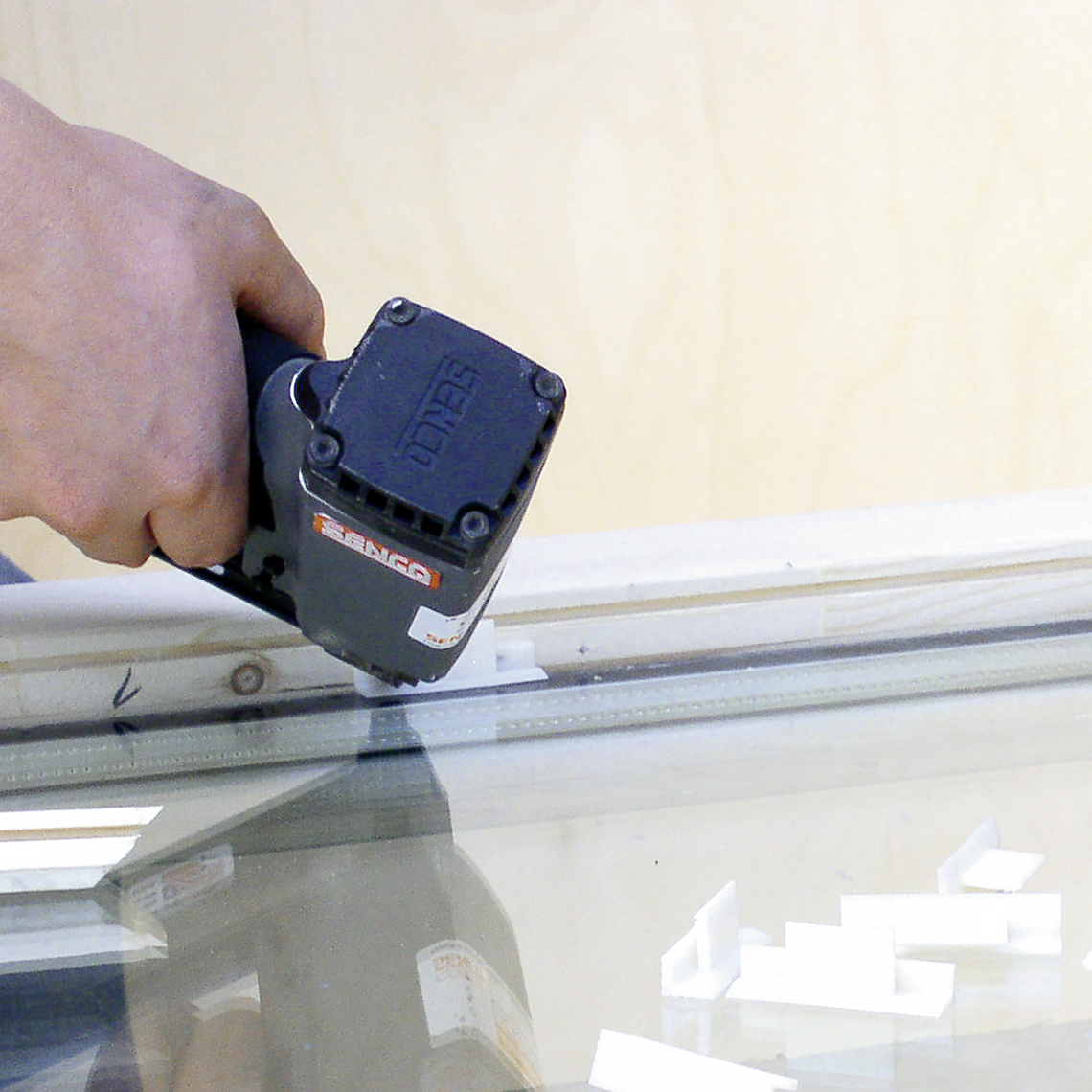

1. Fasten the FIXclip H16 base to the window frame by nail or screw at the required spacing along the glazing rebate.
2. Position the glass pane in the frame with appropriate setting blocks and sealant.

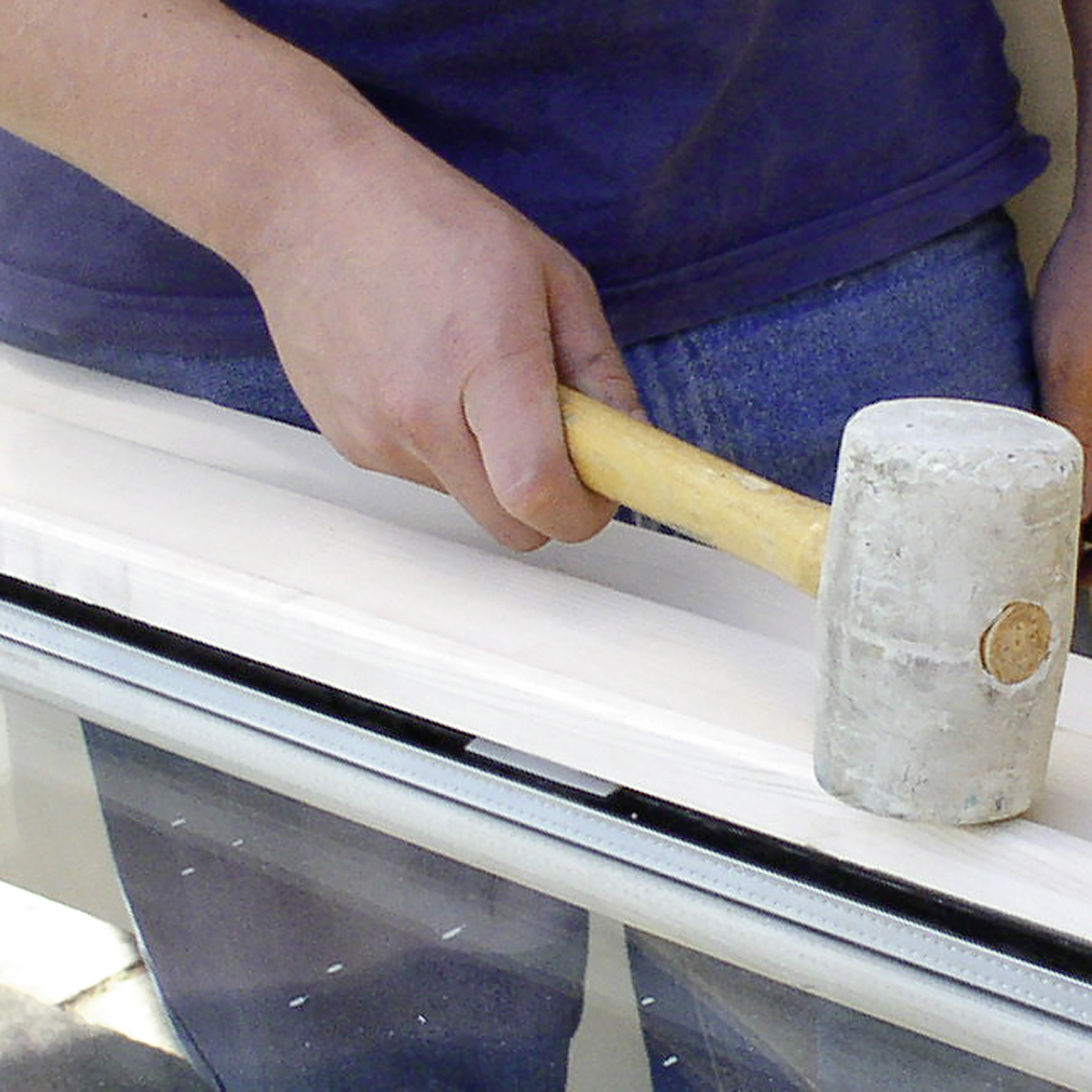

3. Press the glazing bead onto the FIXclip clips until it snaps into place.
4. To remove: lever the bead off the clips. The bead, glass, and frame remain undamaged.

Tips

• The FIXclip H16 is the standard size for most glazing bead profiles. For smaller profiles, use the FIXclip H12 (K078/1). For larger profiles, use the FIXclip H20 (K077/1).
• Ensure the clip height matches your glazing bead profile for proper engagement.
