Mod-eez 4034 Locking Clip – Concealed Case Goods & Cabinet Connector

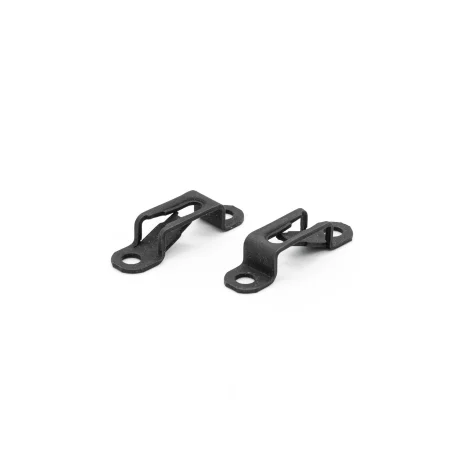

The Mod-eez 4034 Single Clip is the locking version of the 4030 Series, designed for 5/8″+ material. Unlike non-locking or semi-locking clips, the locking clip creates a permanent connection that cannot be disassembled without damage, making it ideal for applications requiring maximum security and strength.

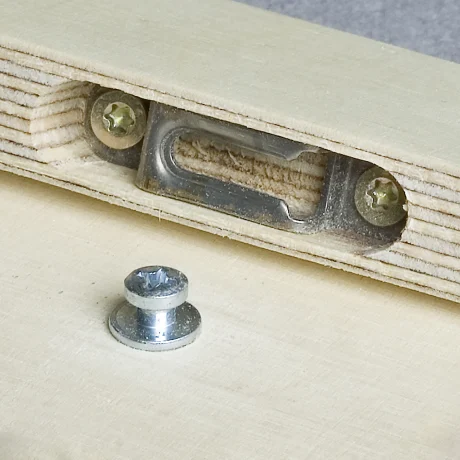

Made from spring steel, the 4034 works with a Mod-eez Shoulder Screw to deliver a concealed, self-tightening joint that is immediately load-bearing. Once installed, all fasteners disappear, leaving a clean, professional finish.

This product contains the clip only. For convenience, Mod-eez Sets are also available which include the clip, Shoulder Screw, and mounting screws.

Features and Benefits

• Locking clip provides a permanent, non-removable connection

• Concealed fastener — no visible hardware

• Self-tightening spring steel ramps ensure long-term joint strength

• Strong and durable, designed for high-stress applications

• Fast installation reduces labor and assembly costs

• Compatible with both wood and metal materials

• Permanent cabinetry and case goods

• Furniture requiring fixed, secure joints

• Shopfitting where tamper-proof assembly is needed

• Architectural joinery and panels

• Variation: 4034 Single Locking Clip (clip only)

• Material: Spring steel

• Coating: None

• Connector Type: Single locking clip

• Mounting: PH- or CS-screws Ø 4.5 mm (length as required)

• Advantages: Concealed, permanent, self-tightening connector

• Suitable Materials: Solid wood, panels, composites, plastics, steel, aluminum

• Recommended Accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 Single and 5030 Single Clips)

  • Mod-eez Shoulder Head Screws

Steps

1. Route the pocket for the Mod-eez Clip according to the technical chart.

2. Pre-drill 5/32″ (4 mm) holes, 32 mm on center, using the K617 Drilling and Depth Jig.

3. Mount the clip with PH-screws Ø 4.5 mm (length as required).

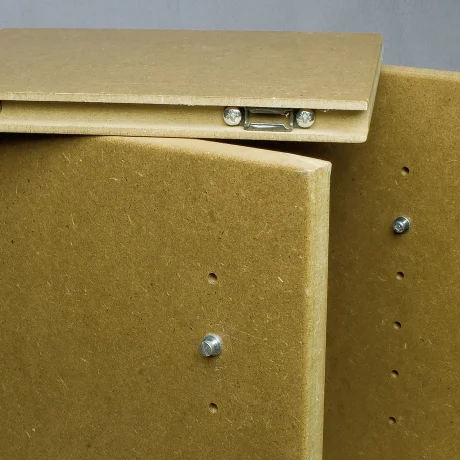

4. Pre-drill and install the Shoulder Screw in the mating panel.

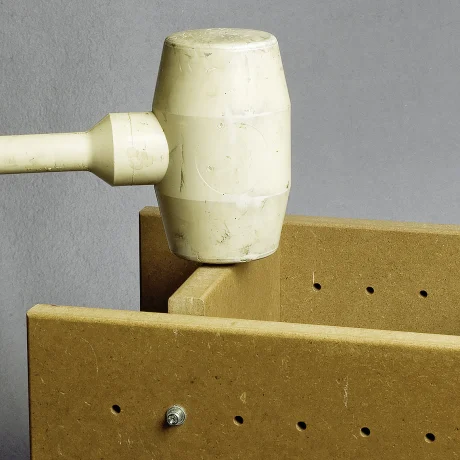

5. Slide the Shoulder Screw head into the clip ramp and secure with a rubber mallet.

Tips

• Choose the locking clip for permanent, tamper-proof joints.

• Pockets are usually routed into edges but can be face-mounted if design requires.

• Use longer PH-screws (5 × 60 mm) for added connector strength.

• Not intended for assemblies that require disassembly.
