Mod-eez Flat Double Clip Non-Locking

The Mod-eez 4036B Flat Double Clip represents the next evolution of the Mod-eez fastening system, combining the proven strength of the 4037 series with a new flat, CNC-optimized design.

This innovative flat clip mounts directly onto the face of a panel, eliminating the need for end-grain routing and simplifying the assembly process. Designed for use with Mod-eez Shoulder Screws, it forms a strong, concealed, and self-tightening connection that is immediately load-bearing once engaged.

The 4036B features two non-locking clips in one body, allowing fast and easy disassembly. Made of high-strength spring steel, it’s ideal for RTA furniture, cabinetry, and modular casework. Its double-clip geometry provides two points of contact for superior alignment, strength, and anti-rotation stability.

Note: For optimal mounting performance, Euro Screws M4.8 x 10 are recommended.
Optional mounting screws include #6 x 1/2 in and #6 x 5/8 in flat head screws when material thickness and application allow.

Key Features

• Flat clip design mounts directly to the panel face, no end-grain routing required

• CNC-friendly and ideal for nesting-based production workflows

• Dual non-locking clips for quick assembly and reassembly

• Concealed, self-tightening connection with no visible fasteners

• Two points of contact in one connector for added stability and strength

• Spring steel construction for long-lasting durability

• Compatible with wood, MDF, composites, steel, and aluminum panels

• RTA furniture and cabinetry

• Case goods and shop fittings

• Tables, chairs, and interior wall panels

• Modular furniture and architectural millwork

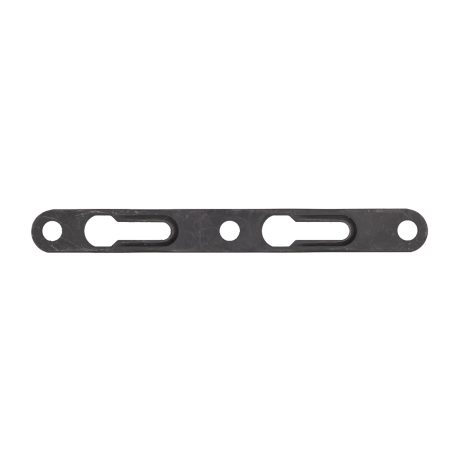

• Product name: Mod-eez 4036B Flat Double Clip – Non-Locking + Non-Locking

• Material: Spring steel, phosphate finish

• Clip type: Double flat clip, non-locking on both sides

• Mounting: PH or Euro Screws M4.8 x 10

  • Optional mounting alternatives: #6 x 1/2 Flat Head screws or #6 x 5/8 Flat Head screws (select based on material thickness and required hold)

• Pocket depth: 3.1 mm nominal (adjust up to 3.3 mm for a tighter fit)

• Pocket length: 97 mm (3.82 in)

• Pocket width: 11 mm (0.43 in)

• Advantages: Concealed, self-tightening connector optimized for CNC routing and face-mounted applications

What’s Included:

• Mod-eez 4036B Flat Double Clips only (screws sold separately)

Recommended With This Product:

• (Euro Screw M4.8 x 10)

Steps

1. Machine the pocket in the panel face according to the 4036B routing chart.

   • Pocket depth: 3.1 mm

   • Pocket width: 11 mm

   • Pocket length: 97 mm

2. Pre-drill 5/32 in (4 mm) holes, 32 mm on center, or follow CNC toolpath specifications.

3. Mount the 4036B using Euro Screws M4.8 x 10

   • Optional: #6 x 1/2 Flat Head screws or #6 x 5/8 Flat Head screws can also be used as mounting screws when panel thickness and application allow.

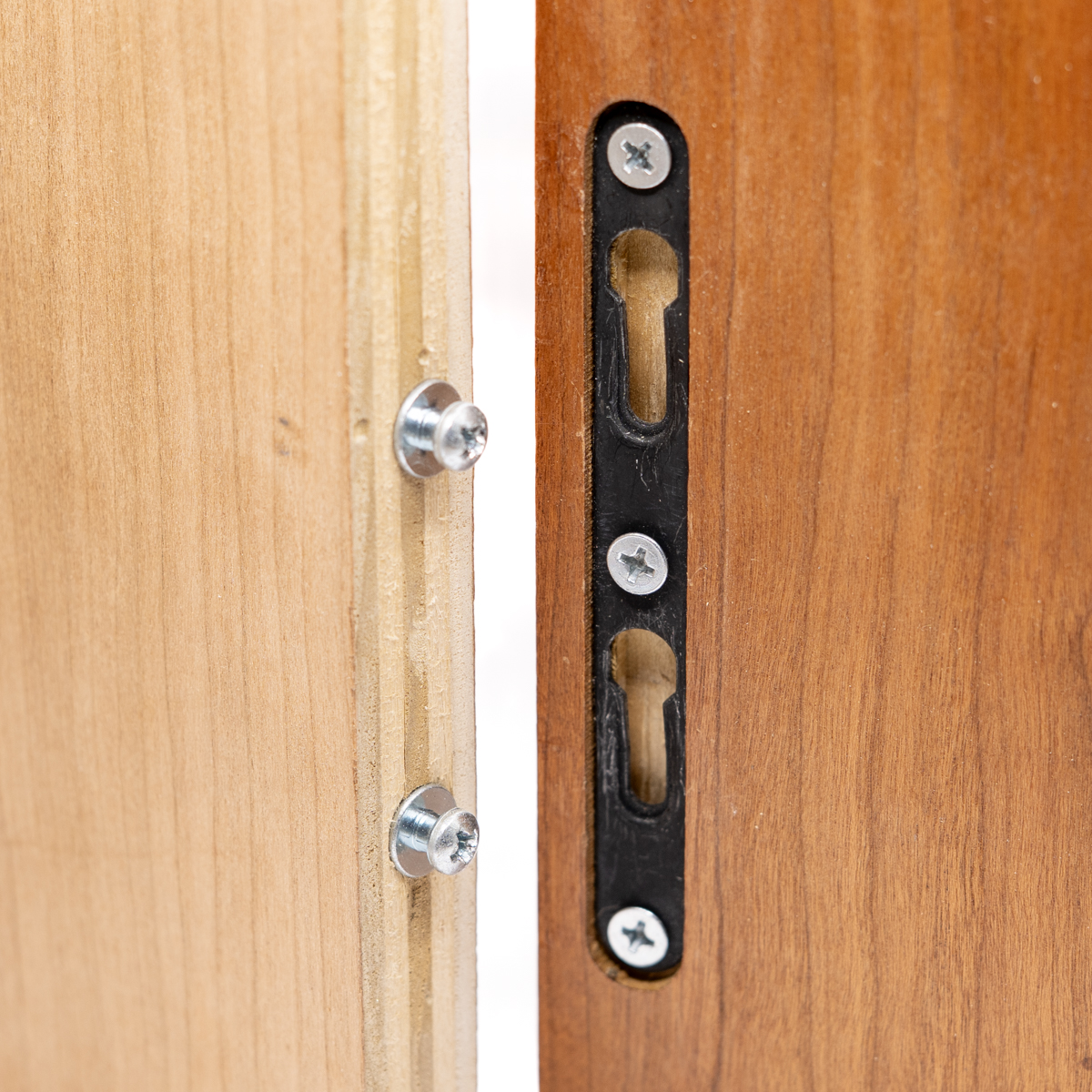

4. Install the Mod-eez Shoulder Screws on the mating panel.

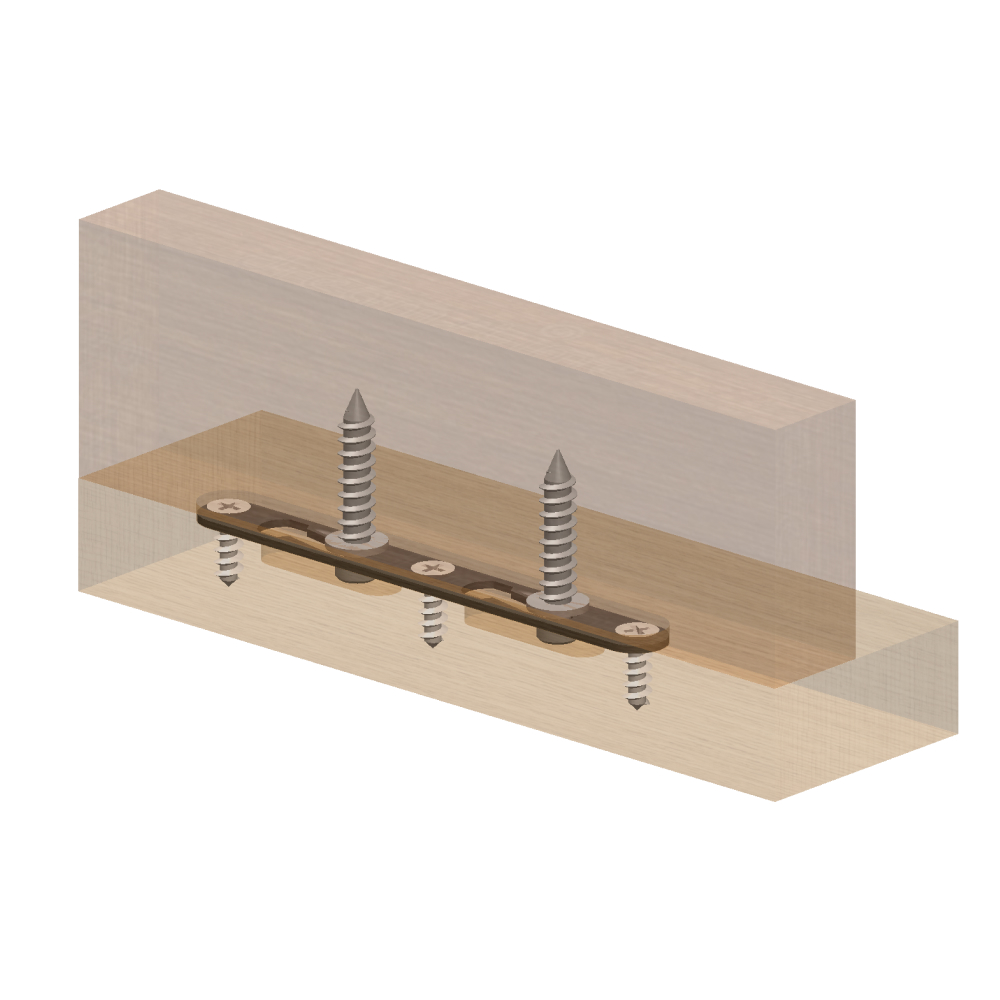

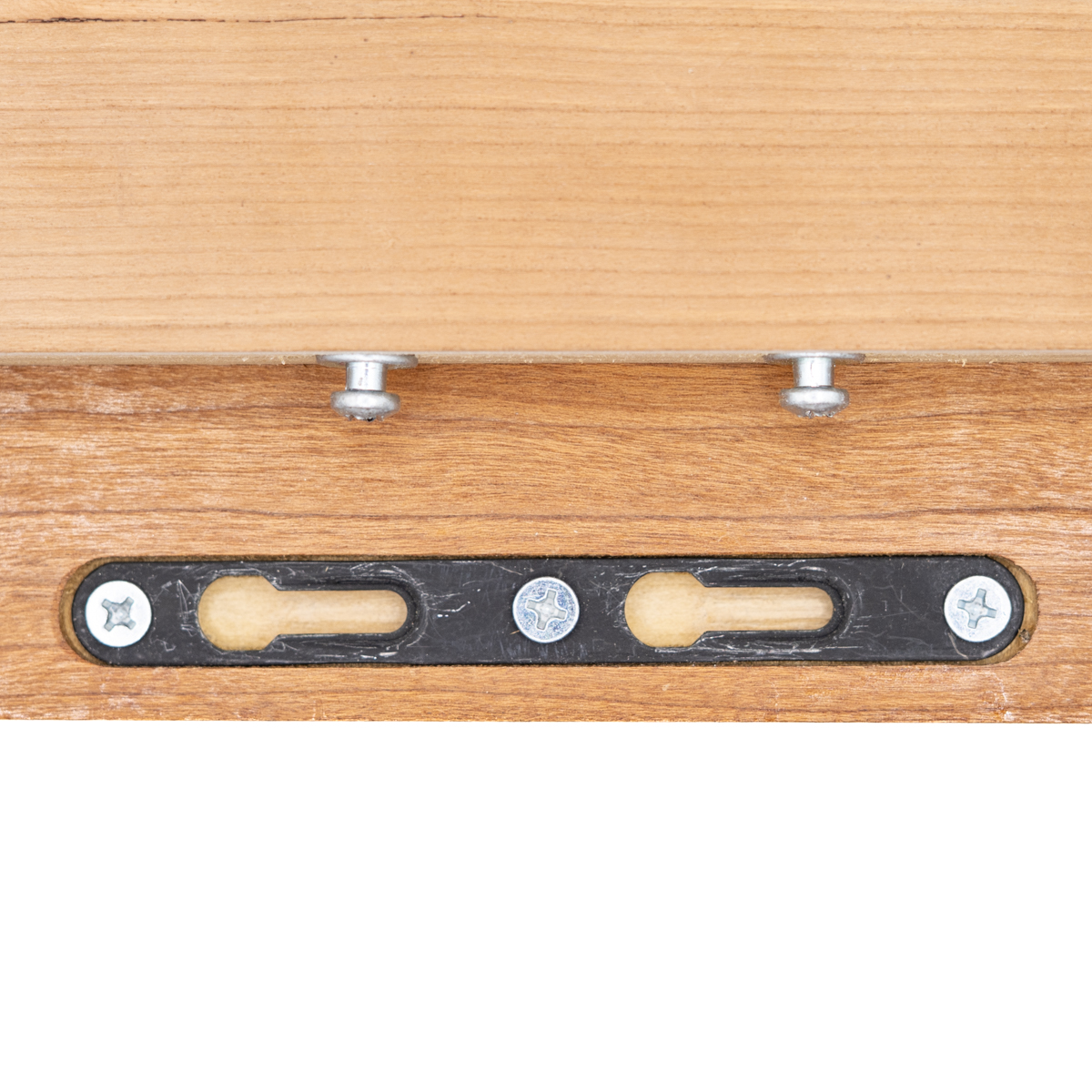

5. Align and slide the Shoulder Screw heads down the clip ramps until fully seated.

Tips

• Designed specifically for CNC routing and automated assembly.

• Use longer screws (e.g. 5 × 60 mm) only if material thickness allows.

• Ideal for use with MDF, plywood, solid wood, and composite panels.
