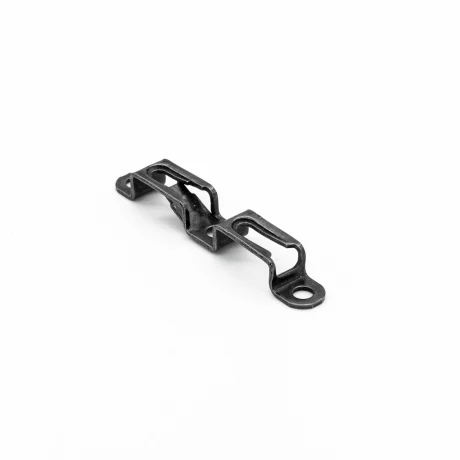

Mod-eez 4038 Double Clip Locking & Non-Locking Connector for Case Goods & Cabinets

The Mod-eez 4038 Double Clip combines one locking clip and one non-locking clip in a single connector, giving you both permanent security and controlled disassembly where needed. The locking side creates a connection that cannot be undone without damage, while the non-locking side allows for easier takedown when required.

Engineered from durable spring steel, the Mod-eez 4038 is ideal for cabinetry, furniture, and shopfitting applications where both fixed strength and selective disassembly are important. Like all Mod-eez Double Clips, it provides two points of contact in one connector, reducing installation time and delivering anti-rotation performance when paired with Shoulder Screws.

Features and Benefits

• Hybrid connector: one locking clip for permanent strength + one non-locking clip for flexibility

• Concealed design — no visible fasteners on finished surfaces

• Self-tightening joint ensures a secure, flush connection

• Durable spring steel ramps provide long-lasting performance

• Installs quickly with minimal labor and no clamping required

• Disassemblable on the non-locking side only

• Cabinetry and case goods

• Furniture and shopfitting

• Interior design panels

• Assemblies requiring permanent strength on one side and flexibility on the other

• Variation: 4038 Locking + Non-Locking Double Clip

• Material: Spring steel

• Coating: None

• Connector Type: Double clip with mixed locking functions

• Mounting: PH- or CS-screws Ø 4.5 mm (length as required)

• Advantages: One side permanent, one side removable — ideal for hybrid applications

• Suitable Materials: Solid wood, panels, composites, steel, and aluminum

Steps

1. Route the pocket for the Mod-eez Double Clip following the technical chart.

2. Pre-drill holes (5/32″ or 4 mm, 32 mm on center) using the Mod-eez Drilling and Depth Jig. This ensures perfect alignment and depth.

3. Mount the clip with PH-screws Ø 4.5 mm (length as required).

4. Pre-drill and install the Shoulder Screws in the mating workpiece.

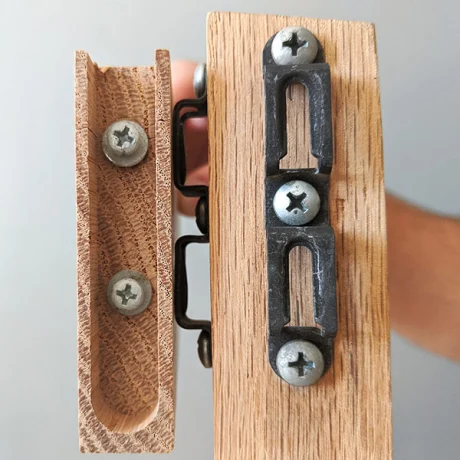

5. Assemble by sliding the Shoulder Screw heads down the clip ramps, securing with a rubber mallet if needed.

Tips

• Use the non-locking side when disassembly may be required.

• Locking clips provide permanent strength — plan assembly order carefully.

• Pockets are typically routed into the edge but can be surface-mounted when design requires.

• Clips can be welded to ~16 ga. steel when needed.
