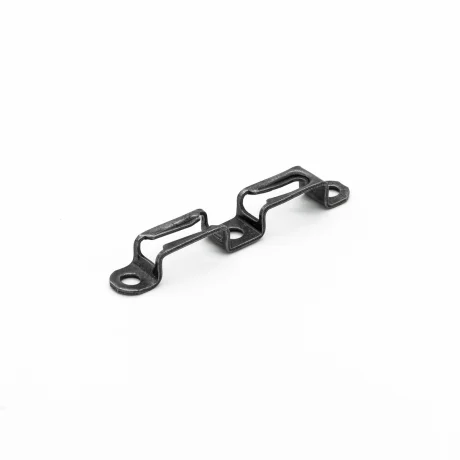

Mod-eez 4039 Double Clip Pass-Thru & Non-Locking Connector for Case Goods & Cabinets

The Mod-eez 4039 Double Clip combines one pass-thru clip and one non-locking clip, making it the ideal solution for applications where screws must extend into the adjoining panel. The pass-thru clip design allows for a secure anchor in deeper materials, while the non-locking side provides flexibility for easier disassembly.

Built from durable spring steel, the Mod-eez 4039 delivers a concealed, strong, and immediately load-bearing connection. Its double-clip design makes two points of contact in a single connector, reducing labor time and ensuring anti-rotation stability when used with Shoulder Screws.

Features and Benefits

• Pass-thru clip allows screws to extend into the adjoining material for greater holding power

• Paired with a non-locking clip for easy disassembly

• Concealed design — no visible fasteners on the finished surface

• Fast, efficient installation — perfect for production lines and shopfitting

• Spring steel construction ensures long-term durability

• Two points of contact per connector for stronger joints

• Furniture and cabinetry

• Case goods

• Shopfitting and interior design

• Installations requiring both deep anchoring and occasional disassembly

• Variation: 4039 Pass-Thru + Non-Locking Double Clip

• Material: Spring steel

• Coating: None

• Connector Type: Double clip with pass-thru and non-locking sides

• Mounting: Installed with PH- or CS-screws Ø 4.5 mm

• Advantages: Combines pass-thru anchoring strength with non-locking flexibility

• Suitable Materials: Solid wood, wood-based panels, composites, steel, aluminum

Steps

1. Route the pocket for the Mod-eez Double Clip according to the technical chart.

2. Use the Mod-eez Drilling and Depth Jig to pre-drill 5/32″ (4 mm) holes, 32 mm on center.

3. Mount the clip with PH-screws Ø 4.5 mm (length as required).

4. Pre-drill for Shoulder Screws and install into the mating piece.

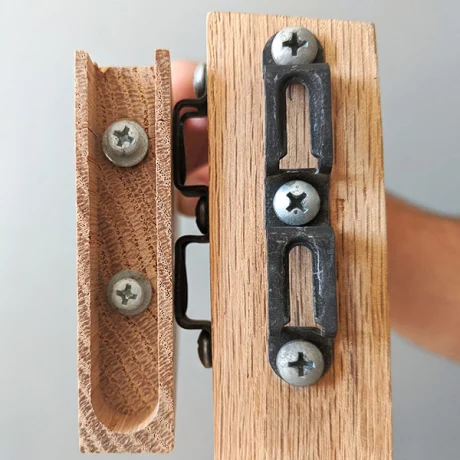

5. Assemble the workpiece by sliding the Shoulder Screw heads down the clip ramps and secure with a rubber mallet.

Tips

• Use the pass-thru clip side when longer screws are needed for deeper anchoring.

• The non-locking clip side allows controlled disassembly and reassembly.

• Pockets are typically routed into the panel edge but can also be surface-mounted.

• Mod-eez Clips can be welded to ~16 ga. steel when needed.
