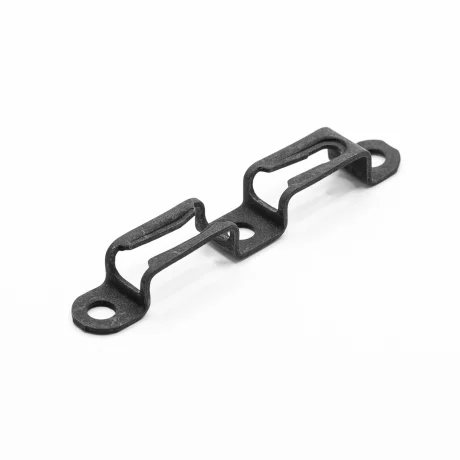

Mod-eez 4039A Double Clip Pass-Thru & Semi-Locking Connector for Case Goods & Cabinets

The Mod-eez 4039A Double Clip is designed with one pass-thru clip and one semi-locking clip, offering both deep anchoring capability and increased holding resistance. The pass-thru clip allows screws to extend through into the adjoining panel, while the semi-locking clip ensures a firmer connection that is harder to disassemble than a standard non-locking version.

Made from high-strength spring steel, the Mod-eez 4039A is a concealed, durable, and flexible connector perfect for case goods, cabinetry, and shopfitting. Its double-clip system creates two points of contact in one connector, ensuring faster installation and anti-rotation performance when combined with Shoulder Screws.

Features and Benefits

• Pass-thru clip provides stronger anchoring in deeper materials

• Semi-locking clip ensures higher resistance to disassembly than non-locking clips

• Concealed, self-tightening design — no visible fasteners

• Installs quickly with minimal labor or clamping required

• Made of spring steel for durability and long-term performance

• Ideal for mixed applications requiring security and partial flexibility

• Case goods and cabinetry

• Shopfitting projects

• Furniture and interior joinery

• Installations where deeper anchoring and stronger hold are required

• Variation: 4039A Pass-Thru + Semi-Locking Double Clip

• Material: Spring steel

• Coating: None

• Connector Type: Double clip with pass-thru and semi-locking sides

• Mounting: PH- or CS-screws Ø 4.5 mm (length as required)

• Advantages: Combination of deep anchoring and semi-locking security

• Suitable Materials: Wood, wood-based panels, composites, steel, aluminum

Steps

1. Route the pocket for the Mod-eez Double Clip according to the technical chart.

2. Pre-drill 5/32″ (4 mm) holes, 32 mm on center, using the Mod-eez Drilling and Depth Jig.

3. Mount the clip with PH-screws Ø 4.5 mm.

4. Install Shoulder Screws in the mating workpiece.

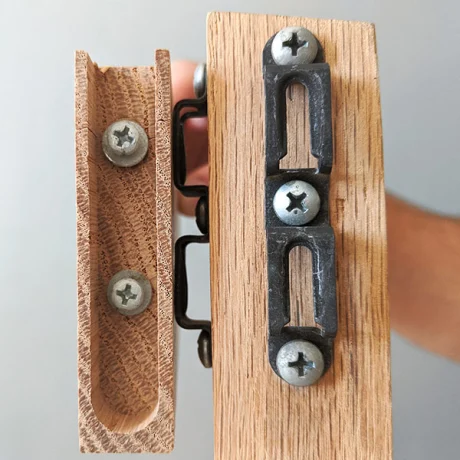

5. Join components by sliding the Shoulder Screw heads into the clip ramps; use a rubber mallet for a snug fit.

Tips

• Pass-thru clip side is best for longer screws and deeper anchoring.

• Semi-locking side offers stronger retention and resists easy disassembly.

• For added versatility, clips can be welded to ~16 ga. steel when required.

• Edge routing is typical, but clips can also be face-mounted where design dictates.
