Mod‑eez 4060 Non‑Locking Single Clip Connector for Case Goods & Cabinets

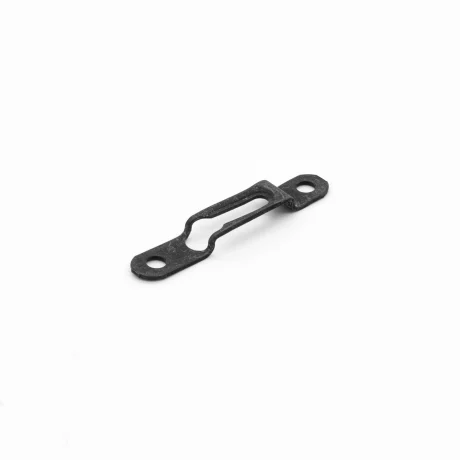

The Mod-eez 4060 Single Clip is a concealed, self-tightening connector for 5/8 inch and thicker stock. Made from spring steel, it pairs with a Mod-eez Shoulder Screw to create a strong joint that assembles in seconds and remains fully hidden on the finished surface. The non-locking geometry allows repeat disassembly and reassembly without damage, which is ideal for knock-down and modular builds. This listing is for the clip only.

Features and benefits

• Fast assembly with a slide-in motion

• Concealed connection for a clean look

• Self-tightening spring ramp resists torsional pull-out

• Fully demountable for service or reconfiguration

• Works with wood, wood-based panels, plastics, and metal substrates

• RTA and knock-down furniture

• Case goods and cabinetry

• Shopfitting and reusable display panels

• Interior millwork where hidden fasteners are preferred

• Series and type: 4060 Single Clip, non-locking

• Material: Spring steel

• Coating: None

• Connector type: Single clip used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm, length as required

• Suitable material thickness: 16 mm and up

• Advantages: Concealed, self-tightening, fully demountable

• Recommended accessories: K617 Drilling and Depth Jig compatible with 4030 Single and 5030 Single clips; Mod-eez Shoulder Head Screws

• What’s included: Clip only

Steps

1. Route the pocket for the clip per the technical chart.

2. Using the K617 Drilling and Depth Jig, pre-drill 5/32 inch (4 mm) holes, 32 mm on center.

3. Mount the clip with PH screws Ø 4.5 mm.

4. Pre-drill and install the Shoulder Screw in the mating panel.

5. Slide the Shoulder Screw head into the clip ramp and tap lightly with a rubber mallet.

Tips

• Edge routing is typical, but face mounting is possible when design requires.

• Longer PH screws, for example 5 × 60 mm, can increase holding strength.

• Clips may be welded to approximately 16 gauge steel using wire welding.
