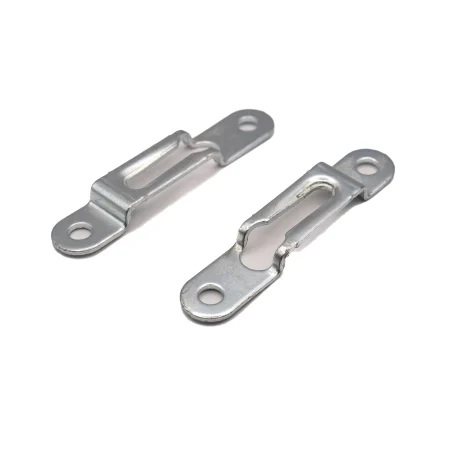

Mod‑eez 4061Z Non‑Locking Clip Zinc Plated for 3/4″+ Stock

The Mod-eez 4061Z Single Clip is the zinc-plated version of the 4060 Series non-locking connector for 3/4 inch and thicker stock. It delivers the same hidden, self-tightening performance as the 4061 but with added corrosion resistance from its zinc coating, making it well suited for environments with fluctuating humidity.

Used in combination with a Mod-eez Shoulder Screw, the 4061Z creates a durable joint that assembles in seconds while staying completely concealed. The non-locking design allows repeat disassembly and reassembly, making it a reliable choice for modular and reusable builds.

Features and Benefits

• Fast slide-in assembly reduces labor and setup time

• Zinc coating for enhanced durability and corrosion resistance

• Concealed connection for a clean, finished look

• Self-tightening spring steel ramps resist torsional pull-out

• Fully demountable for service, transport, or reconfiguration

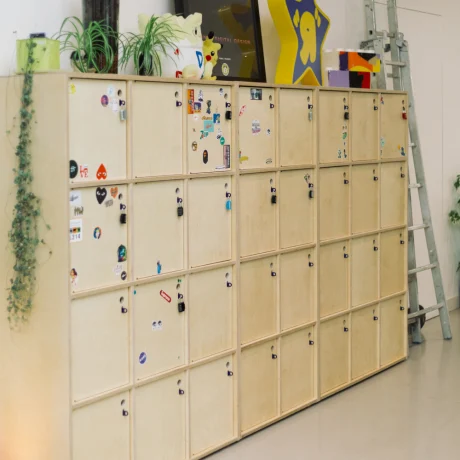

• RTA and knock-down furniture

• Case goods and cabinetry

• Shopfitting and reusable interior panels

• Millwork in environments needing extra protection against wear

• Series and type: 4061Z Single Clip, non-locking, zinc-plated

• Material: Spring steel

• Coating: Zinc

• Connector type: Single clip used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, corrosion-resistant, demountable

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 and 5030 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

1. Route pocket for the clip according to the Mod-eez technical chart.

2. Using the K617 Drilling and Depth Jig, pre-drill 5/32 inch (4 mm) holes, 32 mm on center, ensuring correct pocket depth.

3. Mount the clip with PH screws Ø 4.5 mm.

4. Pre-drill and install the Shoulder Screw in the mating panel.

5. Slide the Shoulder Screw head into the clip ramp and tap into place with a rubber mallet.

Tips

• Zinc coating adds corrosion resistance, making this ideal for installations in variable humidity environments.

• Longer PH screws, such as 5 × 60 mm, can increase holding strength.

• Can also be welded to 16-gauge steel using wire welding when needed.
