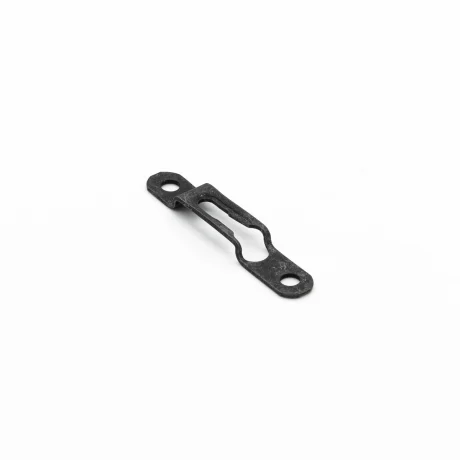

Mod‑eez 4062 Semi‑Locking Single Clip Connector for Case Goods & Cabinets

The Mod-eez 4062 Single Clip is a concealed connector for 5/8 inch and thicker stock that adds extra retention compared to non-locking. The spring steel ramp geometry increases holding force so joints resist casual takedown, yet the assembly can still be disassembled when needed. This listing is for the clip only.

Features and benefits

• Semi-locking action for higher retention

• Concealed connection with no visible fasteners

• Self-tightening slide-in assembly saves labor

• Durable spring steel construction

• Compatible with wood, panel products, plastics, and metal substrates

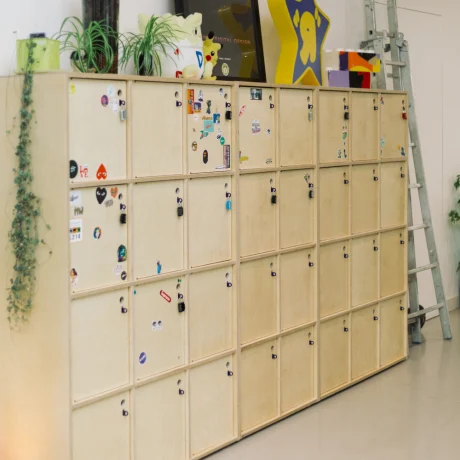

• Furniture and case goods that should stay assembled under use

• Shopfitting and retail fixtures

• Interior panels and architectural millwork

• Series and type: 4062 Single Clip, semi-locking

• Material: Spring steel

• Coating: None

• Connector type: Single clip used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm, length as required

• Suitable material thickness: 16 mm and up

• Advantages: Concealed, self-tightening, higher retention than non-locking

• Recommended accessories: K617 Drilling and Depth Jig compatible with 4030 Single and 5030 Single clips; Mod-eez Shoulder Head Screws

• What’s included: Clip only

Steps

1. Route the pocket for the clip per the technical chart.

2. Use the K617 Drilling and Depth Jig to pre-drill 5/32 inch (4 mm) holes, 32 mm on center.

3. Mount the clip with PH screws Ø 4.5 mm.

4. Pre-drill and install the Shoulder Screw in the mating panel.

5. Slide the Shoulder Screw head into the clip ramp and seat with a rubber mallet.

Tips

• Semi-locking clips require more force to disengage, which helps prevent accidental takedown.

• Use longer PH screws, for example 5 × 60 mm, when additional holding strength is desired.

• Edge or face mounting is possible depending on design.
