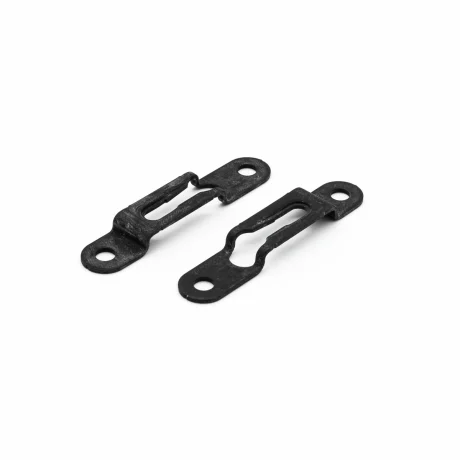

Mod‑eez 4063A Semi‑Locking Clip for 3/4″+ Stock

The Mod-eez 4063A Single Clip is the semi-locking version of the 4060 Series for 3/4 inch and thicker stock. Made of durable spring steel, it pairs with a Mod-eez Shoulder Screw to create a secure, self-tightening connection that resists accidental disassembly but can still be taken apart when needed.

This makes the 4063A ideal for projects requiring stronger retention than non-locking clips while still offering serviceability. Once assembled, the joint is concealed, leaving no visible fasteners on the finished surface.

Features and Benefits

• Semi-locking geometry holds more securely than non-locking clips

• Concealed connection enhances appearance

• Fast, efficient assembly reduces labor costs

• Self-tightening ramps prevent loosening over time

• Can be disassembled with effort, making it more secure but not permanent

• Semi-permanent furniture joints

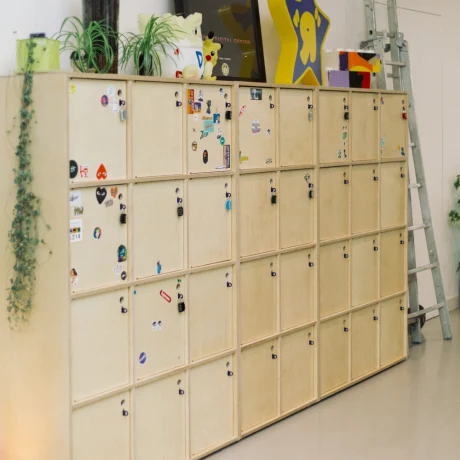

• Case goods and cabinetry

• Shopfitting and millwork

• Projects needing reliable strength with controlled reusability

• Series and type: 4063A Single Clip, semi-locking

• Material: Spring steel

• Coating: None

• Connector type: Single semi-locking clip for use with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, semi-locking for extra hold, demountable with effort

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 and 5030 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

1. Route the pocket for the clip according to the Mod-eez technical chart.

2. Pre-drill 5/32 inch (4 mm) holes, 32 mm on center, using the K617 Drilling and Depth Jig to ensure proper alignment and depth.

3. Mount the clip with PH screws Ø 4.5 mm.

4. Pre-drill and install the Shoulder Screw in the mating panel.

5. Slide the Shoulder Screw head down into the clip ramp and seat with a rubber mallet.

Tips

• Semi-locking clips offer greater resistance to disassembly, best for applications requiring stronger holding power.

• Longer PH screws (5 × 60 mm) can be used for added strength.

• Edge mounting is standard, but clips can also be mounted in face pockets when design requires.
