Mod‑eez 5030 Pass‑Thru Clip for 3/4″+ Stock

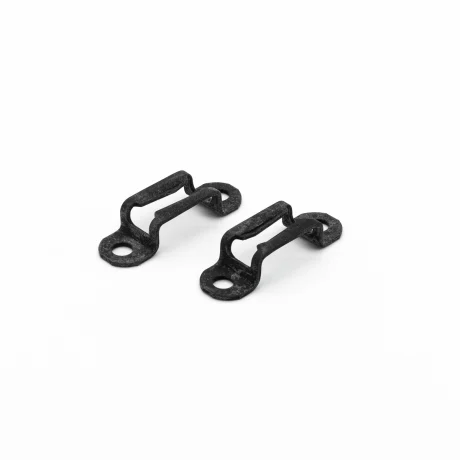

The Mod-eez 5030 Single Clip is the pass-thru version of the 5030 Series, designed for 3/4 inch and thicker stock. Built from spring steel, this clip pairs with a Mod-eez Shoulder Screw to form a strong, self-tightening connection that assembles in seconds and remains completely concealed once installed.

The pass-thru geometry allows the Shoulder Screw head to pass through the clip slot during disassembly, making it ideal for applications that need quick release and reassembly without damaging components.

Features and Benefits

• Pass-thru design for easy disassembly and reuse

• Concealed connector for a clean, hardware-free appearance

• Fast slide-in assembly reduces labor and setup time

• Strong spring steel construction resists torsional pull-out

• Compatible with wood, composites, plastics, and metals

• Knock-down furniture

• Case goods and cabinetry

• Shopfitting and exhibition panels

• Reusable millwork and displays

• Series and type: 5030 Single Clip, pass-thru

• Material: Spring steel

• Coating: None

• Connector type: Single pass-thru clip, used with Mod-eez Shoulder Screw

• Mounting: PH or CS screws Ø 4.5 mm (length as required)

• Suitable material thickness: 19 mm and up (3/4 inch and up)

• Advantages: Concealed, self-tightening, easy-release pass-thru connection

• Recommended accessories:

  • K617 Drilling and Depth Jig (compatible with 4030 and 5030 Single Clips)

  • Mod-eez Shoulder Head Screws

• What is included: Clip only

Steps

1. Route pocket for the Mod-eez Clip according to the technical chart.

2. Pre-drill 5/32 inch (4 mm) holes, 32 mm on center, using the K617 Drilling and Depth Jig to ensure correct pocket depth.

3. Mount the clip with PH screws Ø 4.5 mm (length as required).

4. Pre-drill and install the Shoulder Screw in the mating panel.

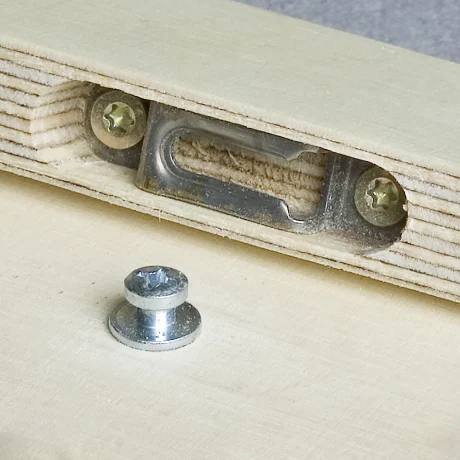

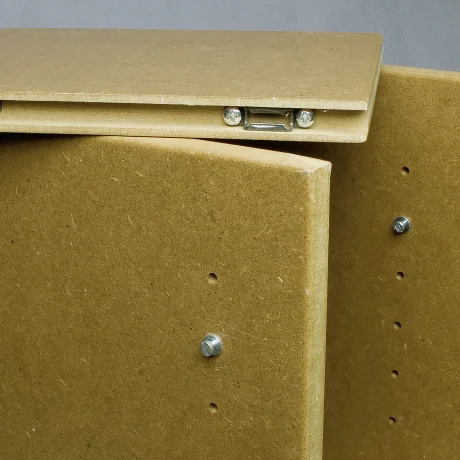

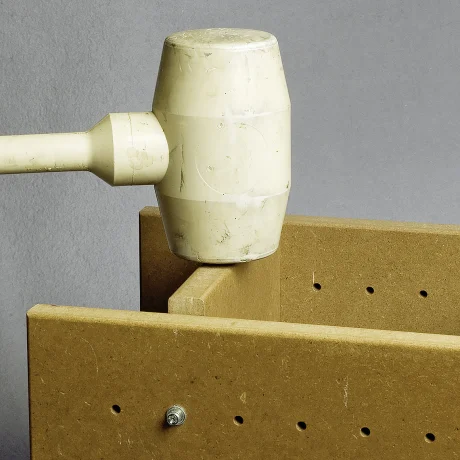

5. Slide the Shoulder Screw head down the clip ramp; for disassembly, allow the screw to pass through the clip slot.

Tips

• Pass-thru clips are best for joints that require frequent disassembly and reassembly.

• Longer PH screws (5 × 60 mm) can be used for increased strength.

• Clips can also be welded to steel (approx. 16 ga.) using wire welding.
